Description ID # Price Photos QTY in Stock INFO INFO
NEW

CEN-TECH

DVM



 Saw these on sale for $9.99 each and bought two.  Tried them and bought all they had at volume pricing

It's not a fluke but it works and are inexpensive.  So I won't mind as much it I accidentally drop off a tower or step one.

$8

No extra shipping with any other item

New with the battery not the cheaper no battery version

My only complaint is the leads are almost 1 ohm with no way to zero.   But I only use these for rough measurements ......

again its not my fluke 179 but its not $200 either!!!!


NEW replacement rechargeable battery sets for the 4314 DIRECT REPLACEMENT FOR THE BAD BATTERIES IN YOUR METER

TINNED ENDS ON QUALITY SILVER TEFLON WIRE

$30

High quality NiMH

uses the AC connection and charging circuit in your meter. click for the 4311 / 4314 manual

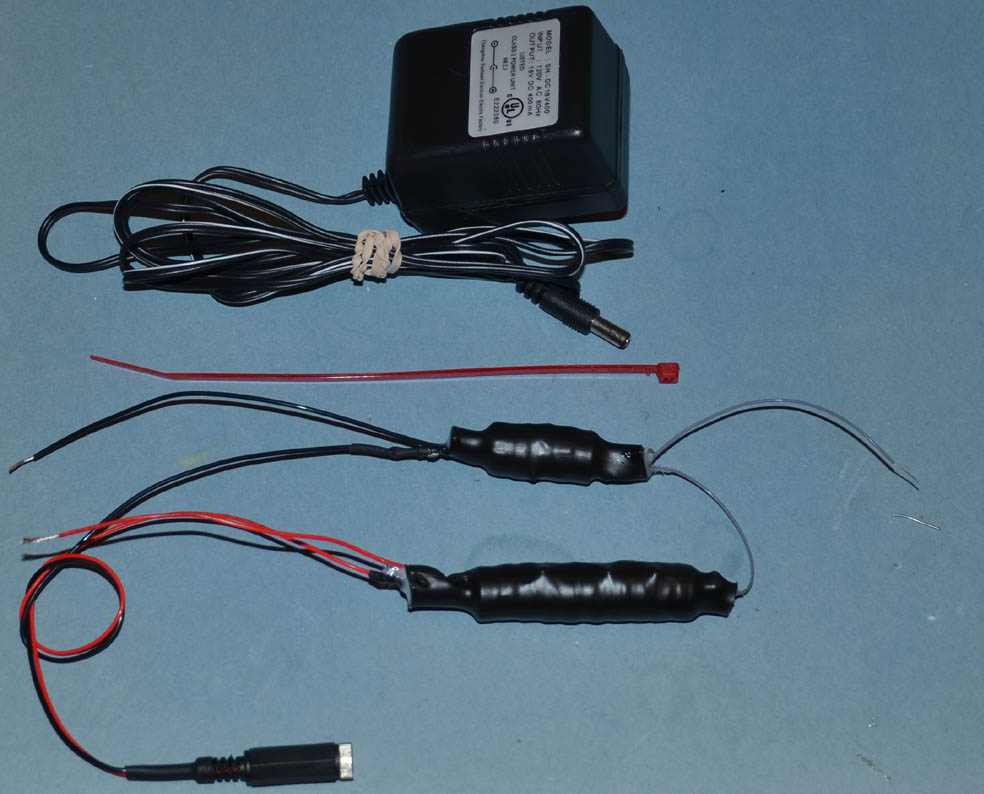

NEW replacement rechargeable battery sets for the 4311 + a wall wart and charging circuit. This set replaces the original alkaline batteries with rechargeables.

It also includes an 18V wall wart, current limit, diode polarity protection, and a power supply disconnect connector.

$55 if your meter is tagged a 4311 but has a ac cord and rechargeable batteries it is really a 4314 use the replacement set above. click for the 4311 / 4314 manual

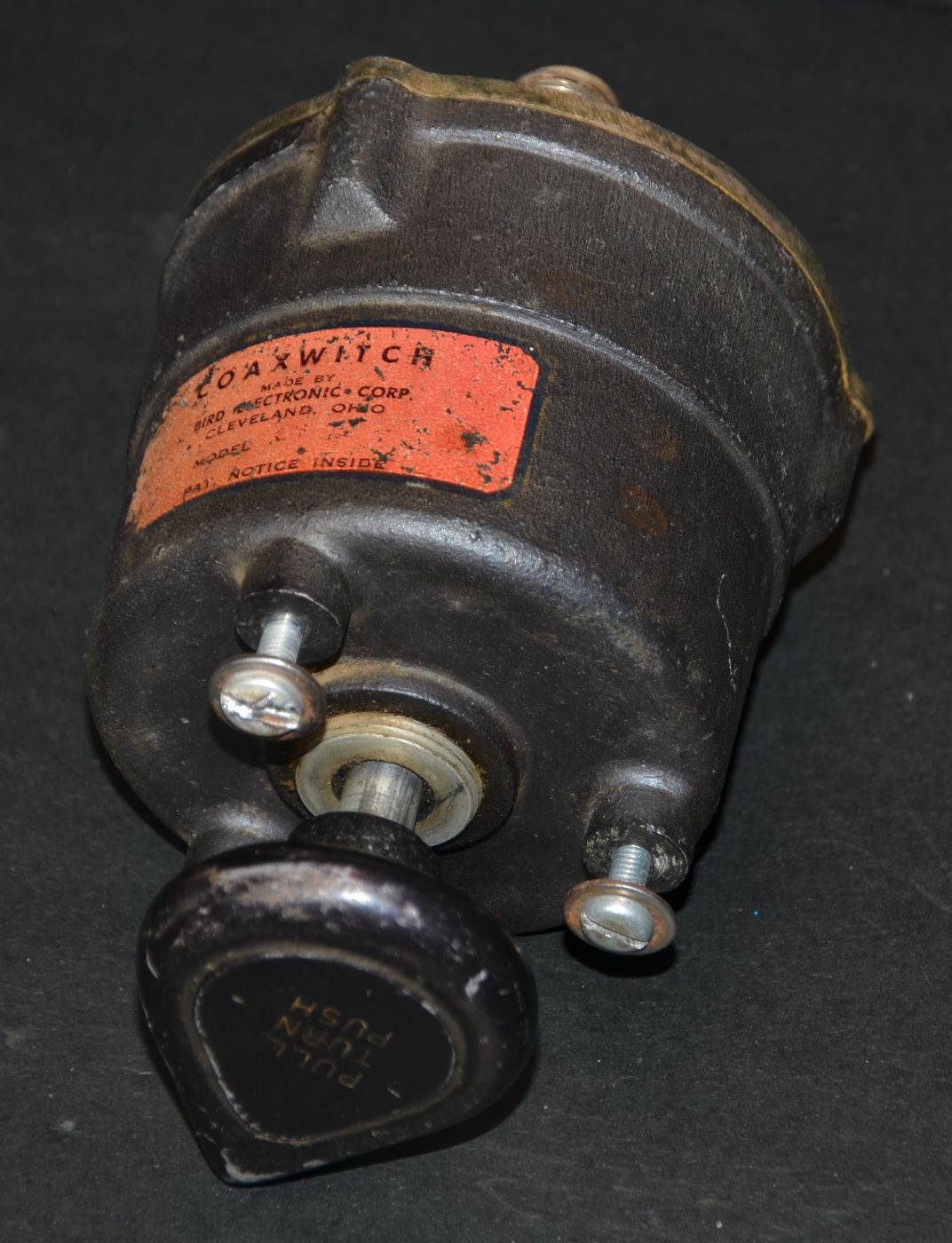

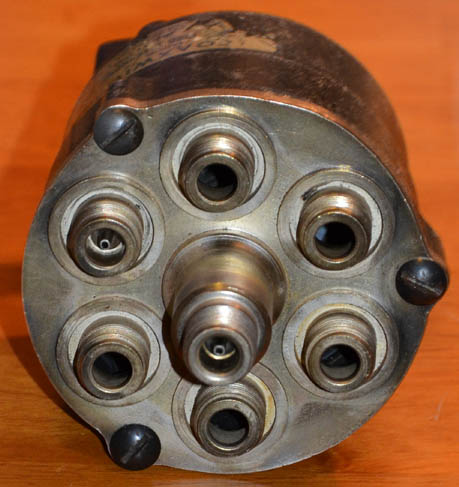

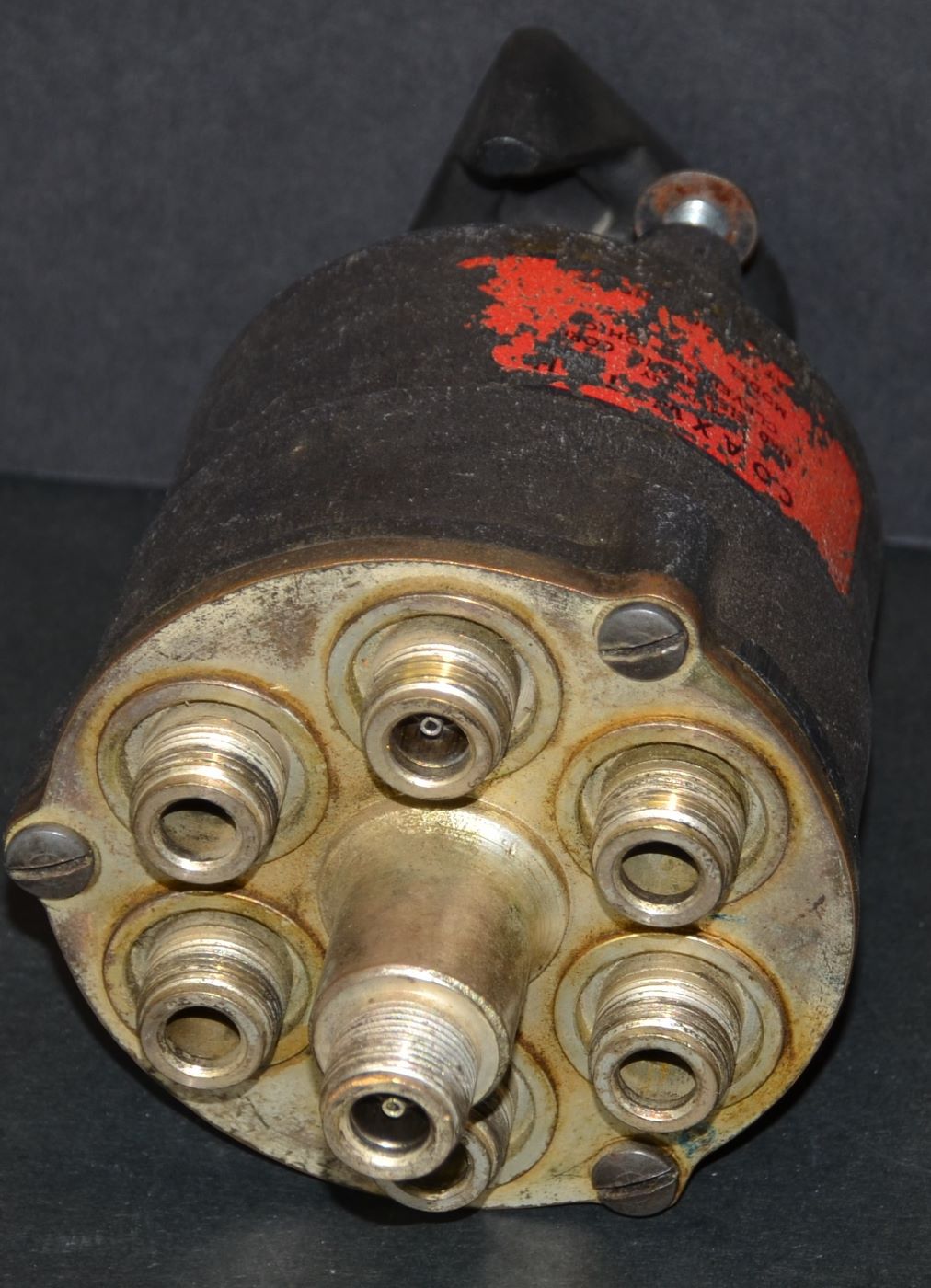

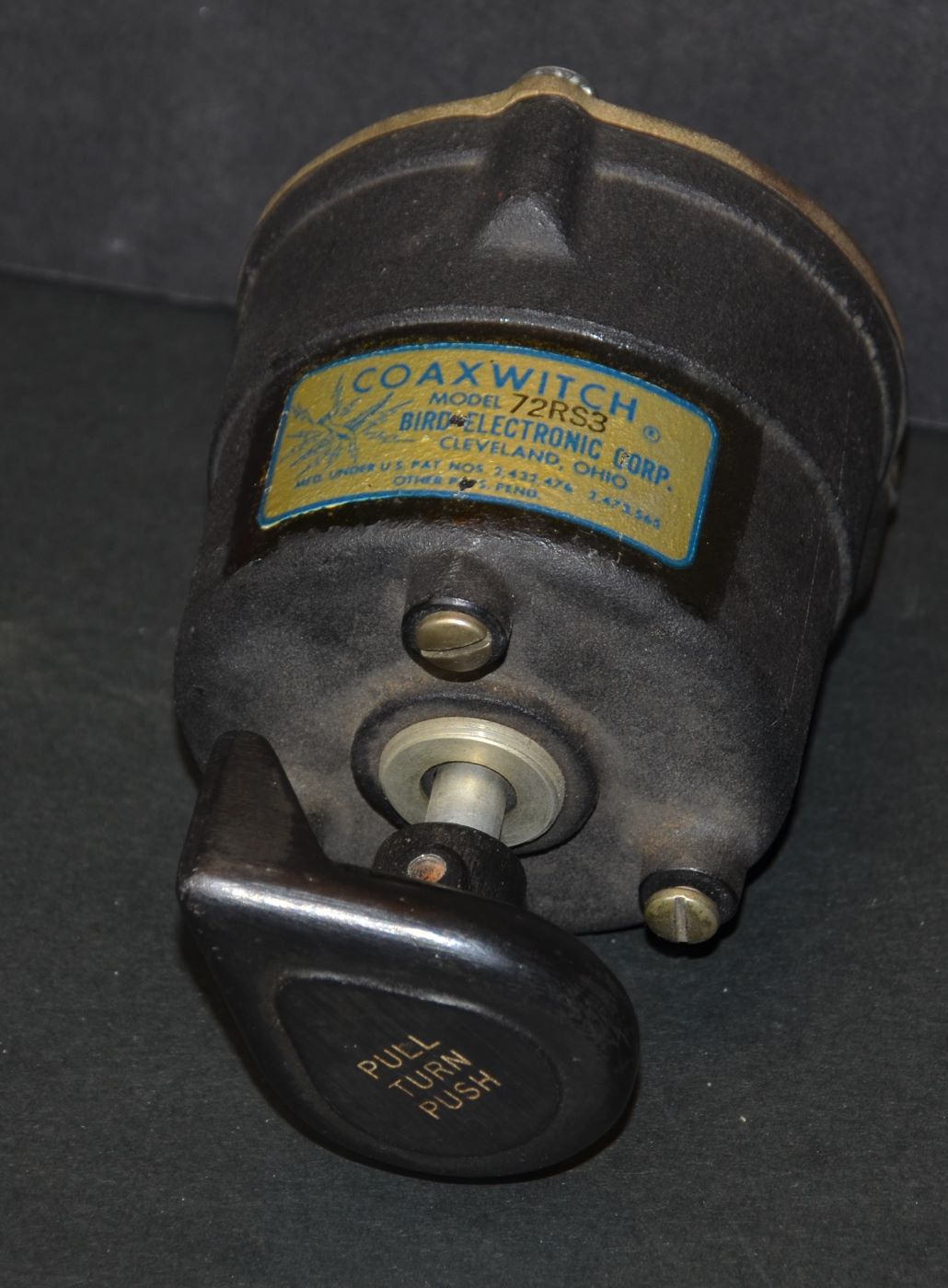

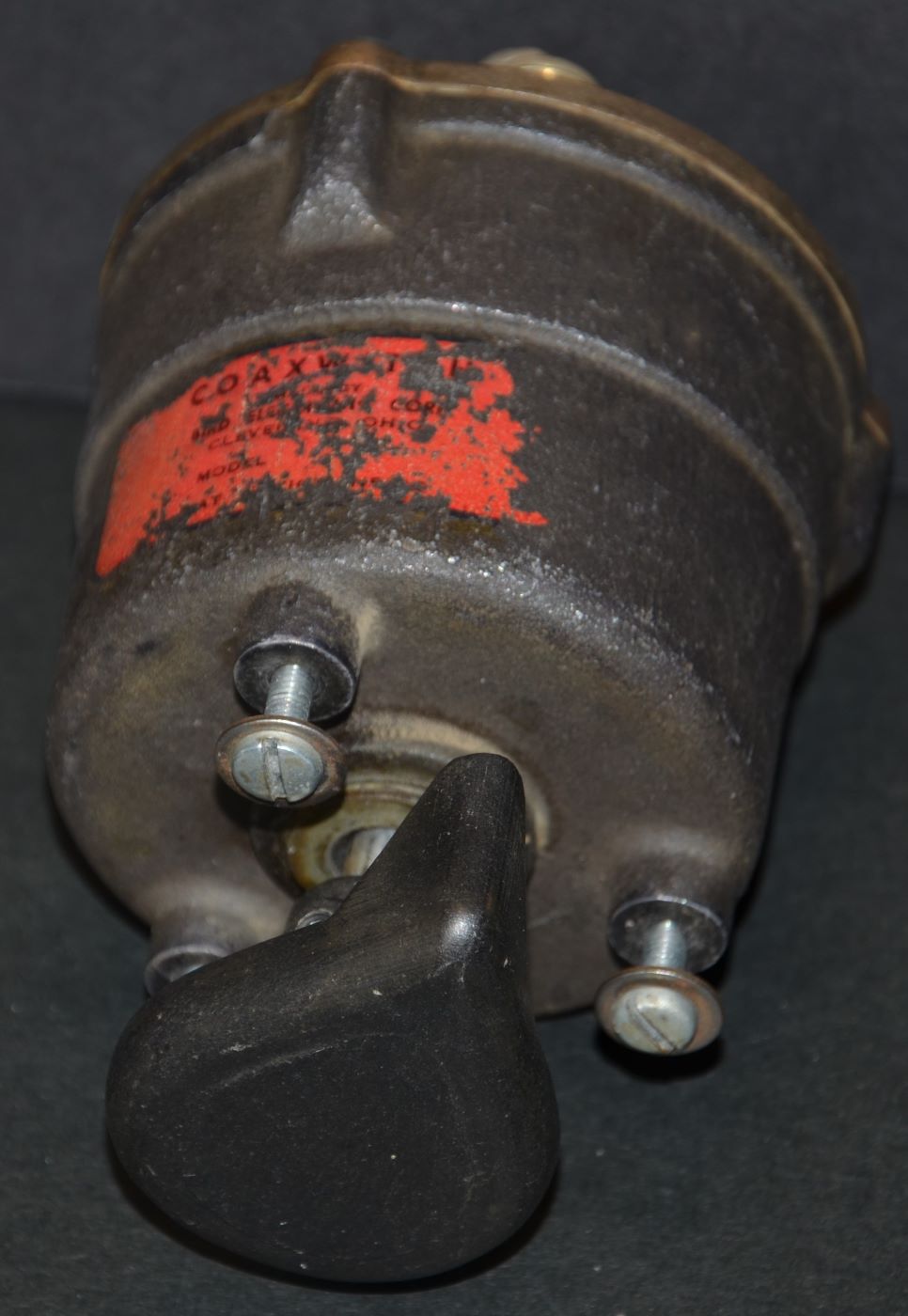

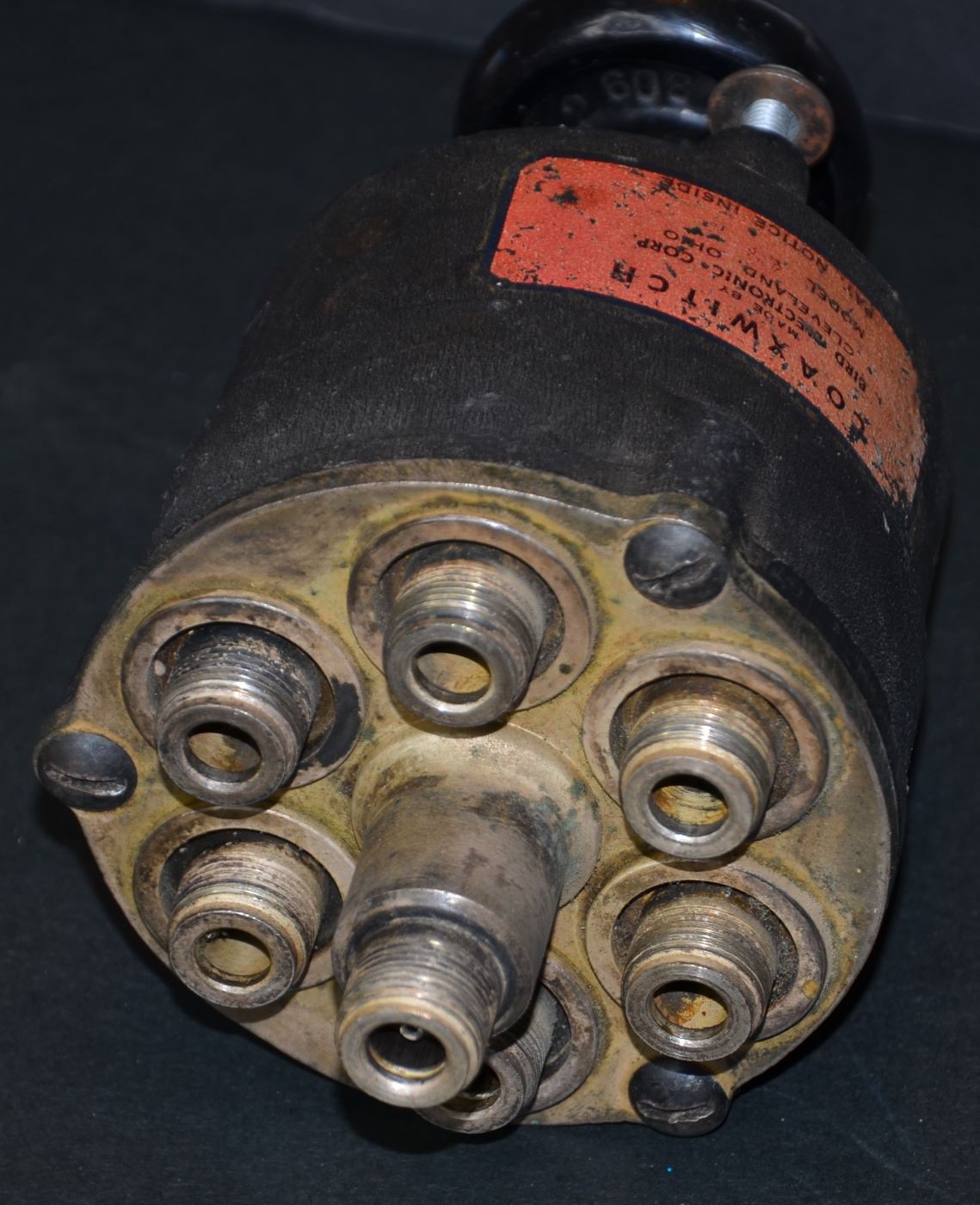

BIRD COAXIAL SWITCH

74

74-AAA-11-23-10

6 POSITION N-female

COAX SWITCH

SOLD

$135

YES NEW COST IS $1188

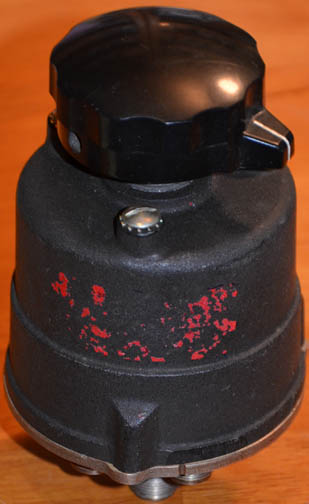

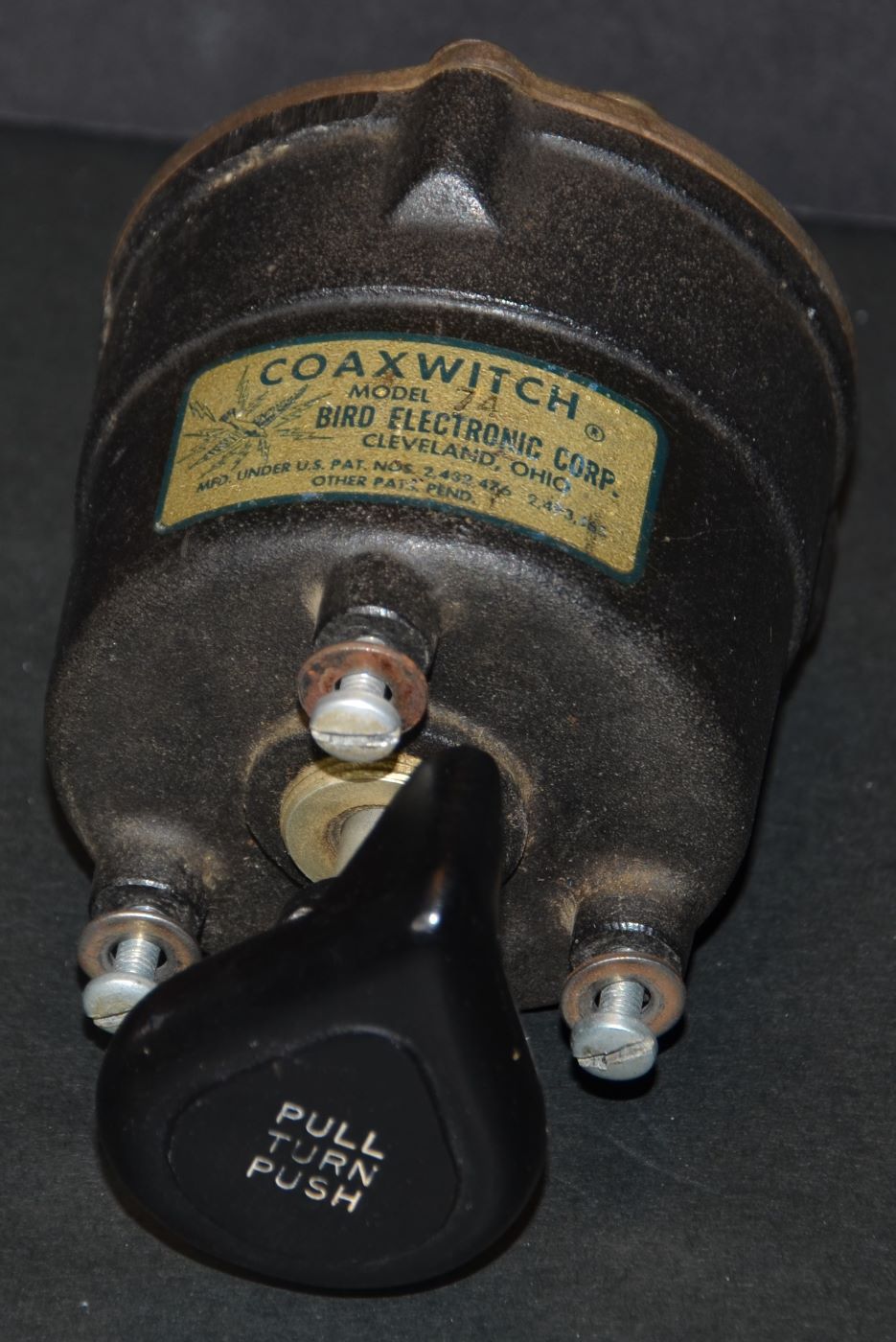

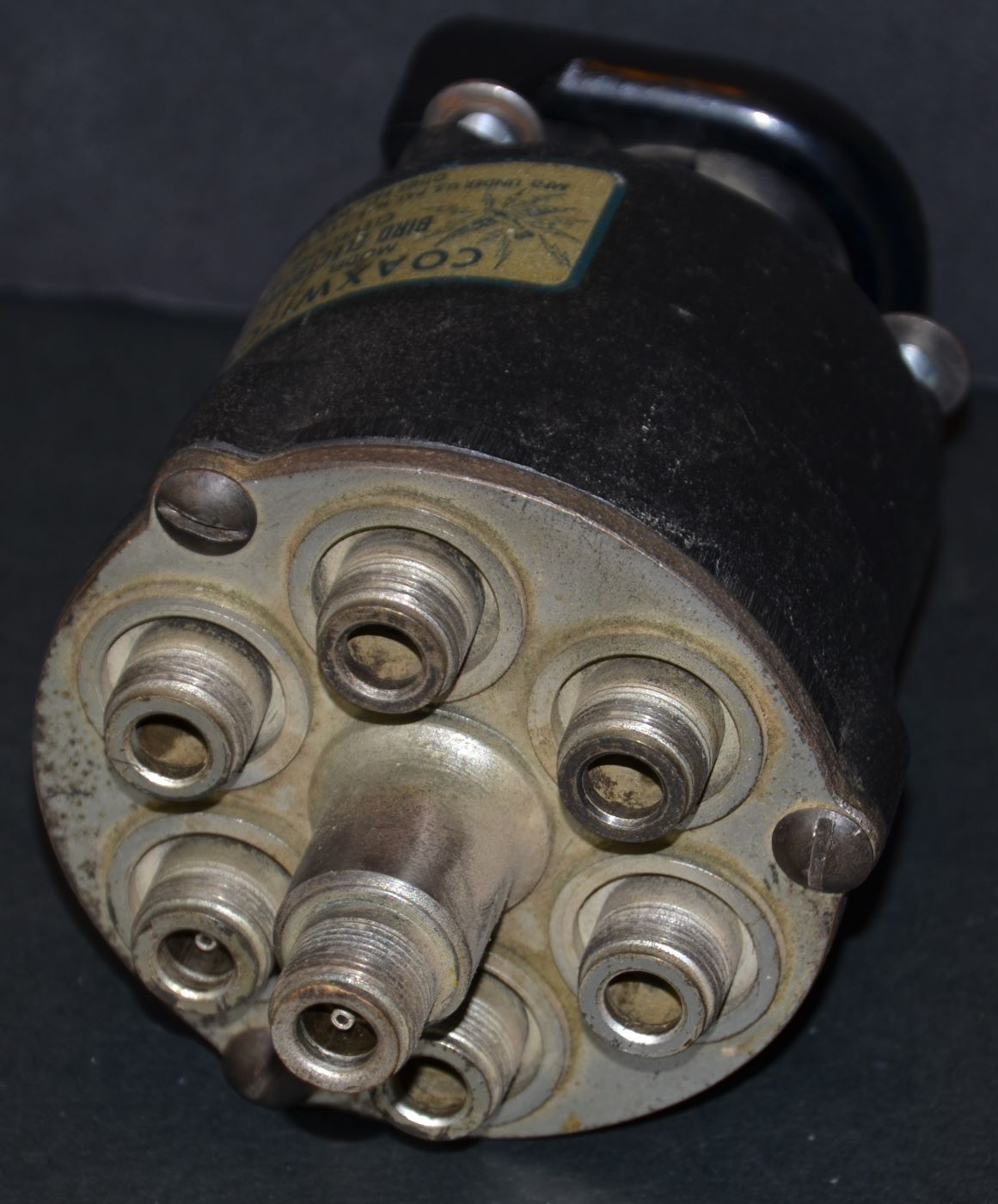

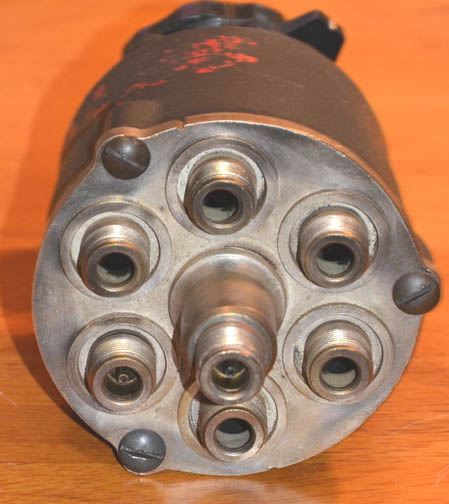

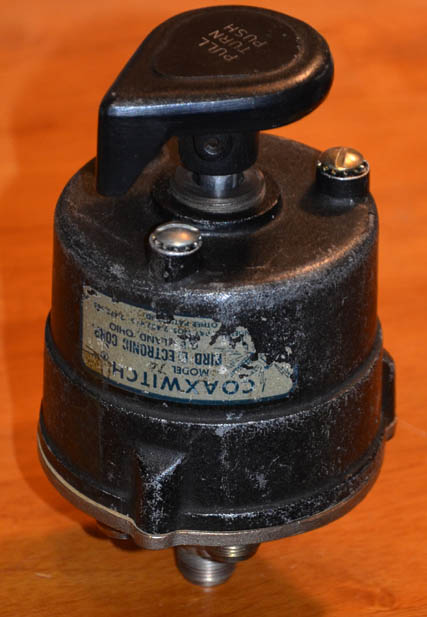

BIRD COAXIAL SWITCH

74

74-BBB-11-23-10

 6POSITION N-female

COAX SWITCH

SOLD

$125

MISSING THE LABEL

COST ID NEW$1188

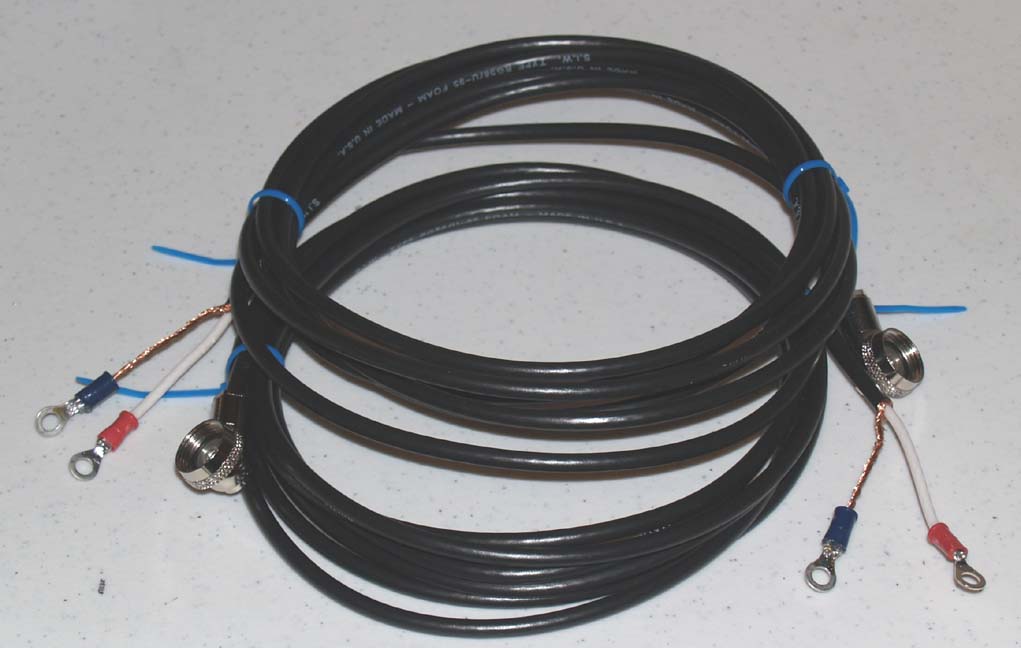

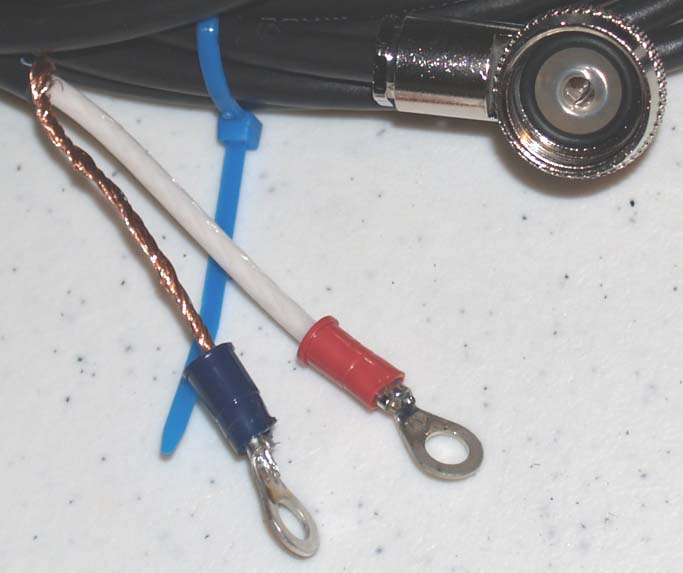

 Custom made DC to spade lug cables. Made to the length you need. MADE TO ORDER

 This is the cable that goes from the line section to the back of the meter movement

Length Up to

3ft = $20

10ft = $23

15ft = $25

20ft = $27

25ft = $30

30ft = $32

You name the length and I will make the cable.

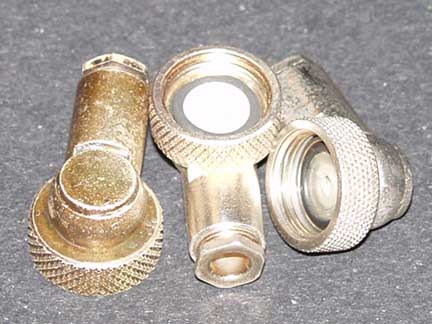

Bird DC Connectors for Line Section DC Connectors for Line sections NEW

IN STOCK NOW

$15 each
Back in stock

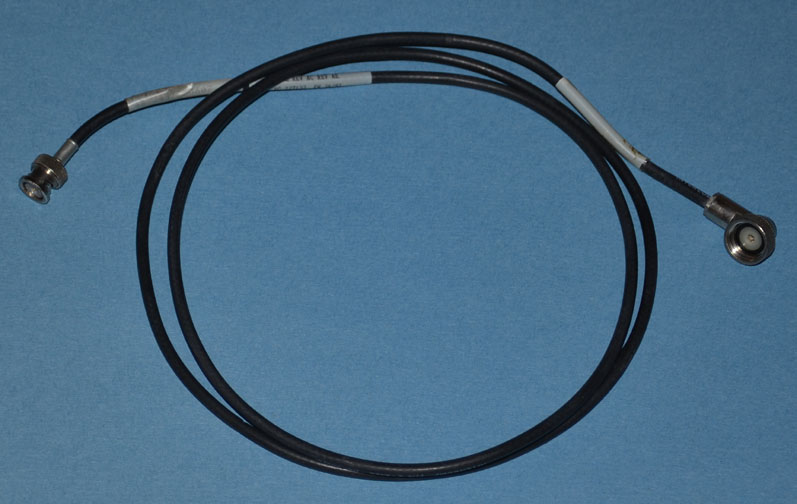

NEW SHINY CHROME PLATED

BIRD

7500-076





DC

to

BNC-Male

USED CABLES

$15 EACH

I AM SELLING THESE AT THE PRICE OF THE DC CONNECTOR

STOCK ON HAND

2  X 20 inches

1  X  1 FOOT


USED

ORIGINAL

BIRD 43

DC to spade lug cables.



CABLES FROM SCRAPPED OR PARTED OUT BIRD 43 METERS

I AM SELLING THESE AT THE PRICE OF THE DC CONNECTOR

$15 EACH NO PHOTO 5 IN STOCK

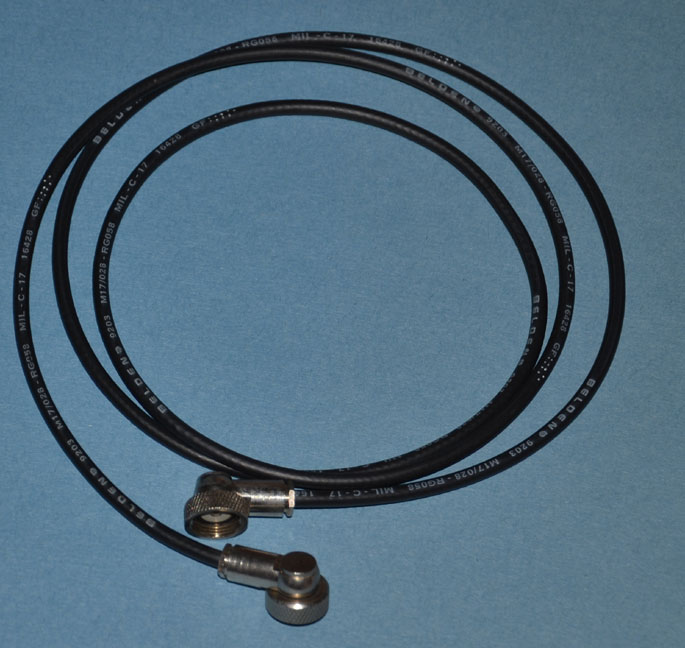

DC to DC USED CABLES

$25 EACH

I AM SELLING THESE AT LESS THEN THE  PRICE OF THE DC CONNECTORS

STOCK ON HAND

1  x  5 FOOT

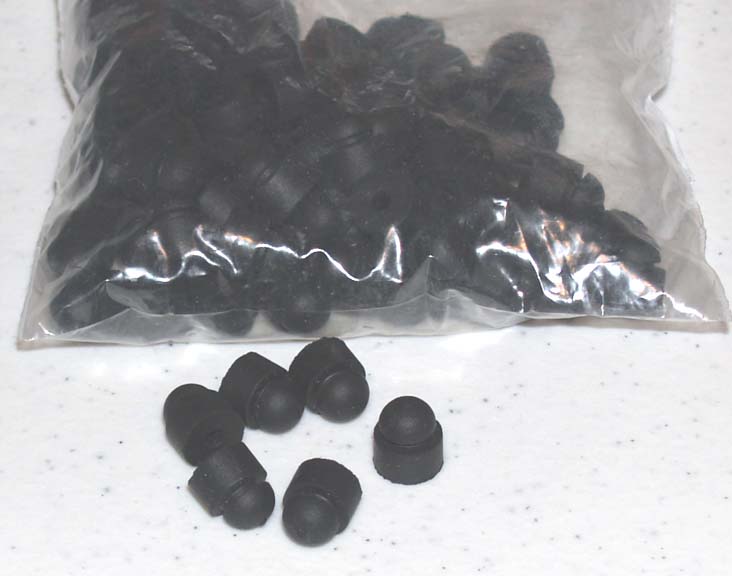

Bird feet Replacement feet for the bottom of Bird 43 and some other meters. NEW

IN STOCK NOW

$1 each

4 for $3

These can also be used to replace damaged or missing rear bumpers.

They are currently what bird is using for rear bumpers.


 BIRD 43 MANY BIRD 43 CABINETS AT THE BOTTOM OF THE PAGE

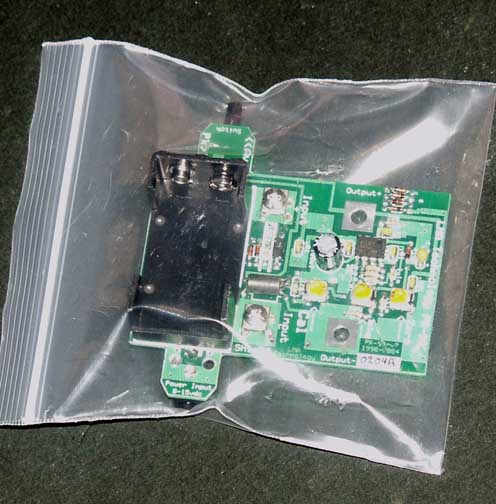

NEW PEAK BOARD

MADE FOR THE BIRD 43

DROP IN NO SOLDER.

DISCONTINUED DISCONTINUED





This is predrilled for a meter movement post spacing of 1.45 to 1.55 inches.  There is room to modify for other spacing.

A push on/off switch is positioned at the right element storage hole, DC input connector (to eliminate the battery) is at the left element hole.



Includes Instructions / manual from factory.   ++++++++++++++  90day warrantee from purchase date thru manufacturer

Post spacing on the meter movement must be 1.45 to 1.55 inches center to center.


They must also be about centered from top to bottom

LED METER LIGHT SET NEW CUSTOM MADE SETS FOR MORE INFORMATION CLICK HERE NEW

IN STOCK NOW



RF BYPASSED POWER SUPPLY FOR THE PEAK BOARDS NEW CUSTOM MADE NEW

IN STOCK NOW

FOR MORE INFORMATION CLICK HERE
CAN BE FOR POWER ONLY OR INCLUDE AN LED METER FACE LIGHTING SET SHOW ABOVE.

NOT A KIT!!! ASSEMBLED AND TESTED!!!

FOR MORE INFORMATION CLICK HERE
SMALLER

PR-80

NEW PEAK BOARD

NEW SMALLER AFTER MARKET PEAK BOARD

Requires you to add an AVERAGE / PEAK switch and DC power (battery of power supply).

FITS IN 4431style and all the panel mount meters where the full size board wont fit.

NEW

IN STOCK NOW

$49

IN STOCK NOW

This is predrilled for a meter movement post spacing of must 1.45 to 1.55 inches.  There is room to modify for other spacing.
BIRD ORIGINAL

4314B

This is an original Bird 4314B peak board mounted to a line section with the DC pick up.

Needs 18VDC

Has wires and connectors for the DC and meter hookup.  Provides a solder free installation.

$125

SOLD


QC CONNECTORS ARE ON THIS PAGE CLICK HERE   Meter installation:
ORIGINAL

BIRD

Replacement meter movements

IN STOCK

Large 100ua

rectangular meter movement

RP2150-230

sealed in the box

NEW

IN STOCK NOW

$140

about 4 1/2 wide by 4 inches high

not actual photo boxes are sealed.

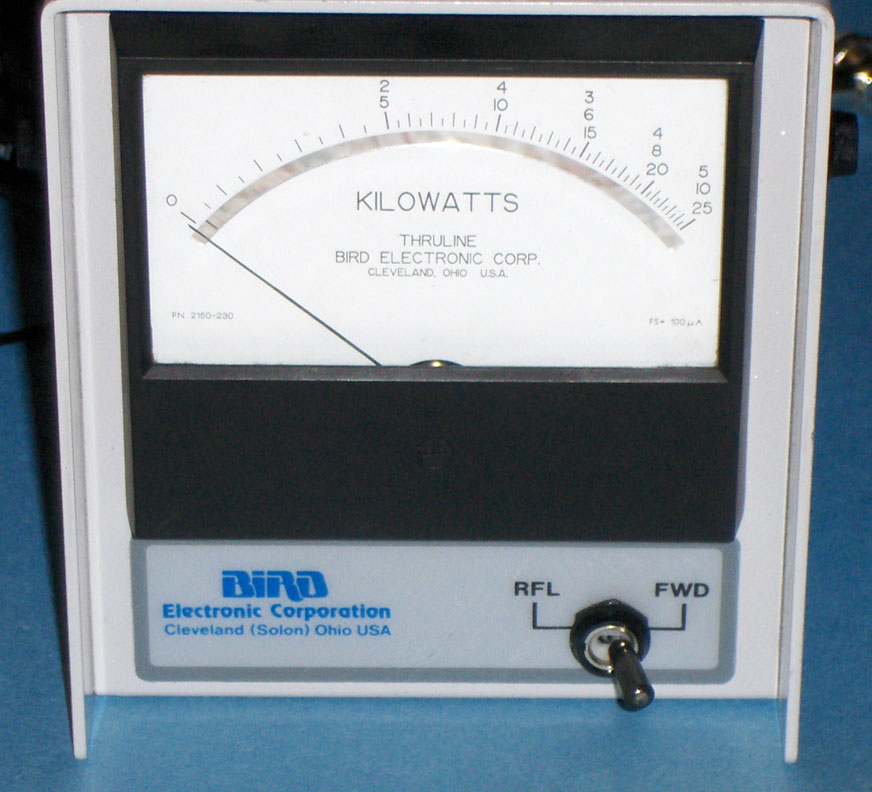

same meter movement as in this meter.

No case or switch just the new meter movement


Bird 100ua

Meter

Movement

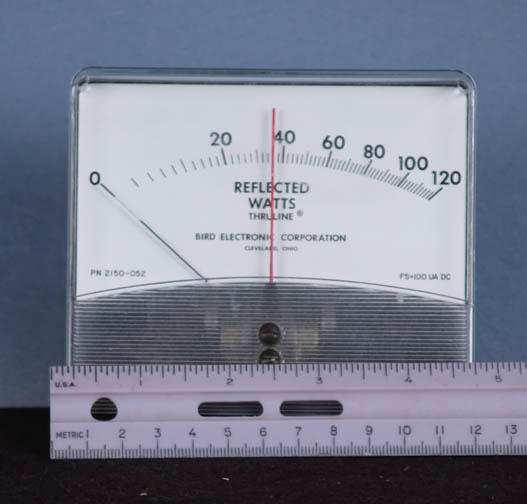

Large 100ua rectangular meter movement

Never used but these are plastic faced and are not perfect.

Scaled 0-120% and also has a adjustable trip sensor switch - set with the red pointer.

They were used in a watcher unit to shut down a transmitter when the reflect got to high.

$50

SOLD

SOLD

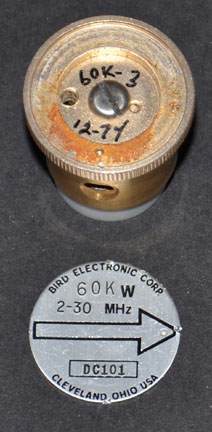

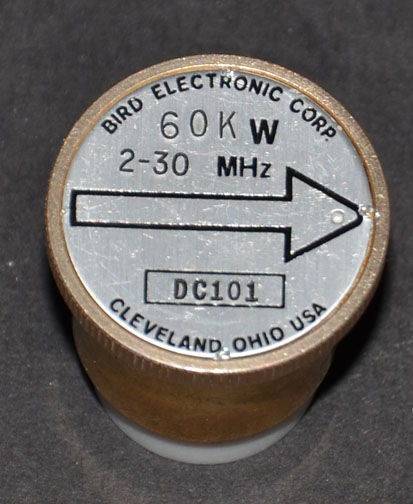

60KW

 METER

 ELEMENT

100UA METER MOVEMENT AND ELEMENT



$175 for the set/pair



ALSO ON NON

$85

I opened the element to check he markings inside.

Bird stated 60k-3 is for a 3 1/8 line

meter is set up to read this or other 15KW / 30KW / 60KW elements

$110

New in the box large 100ua movement.

Box still has the has mounting template and hardware.



Meter

Movement

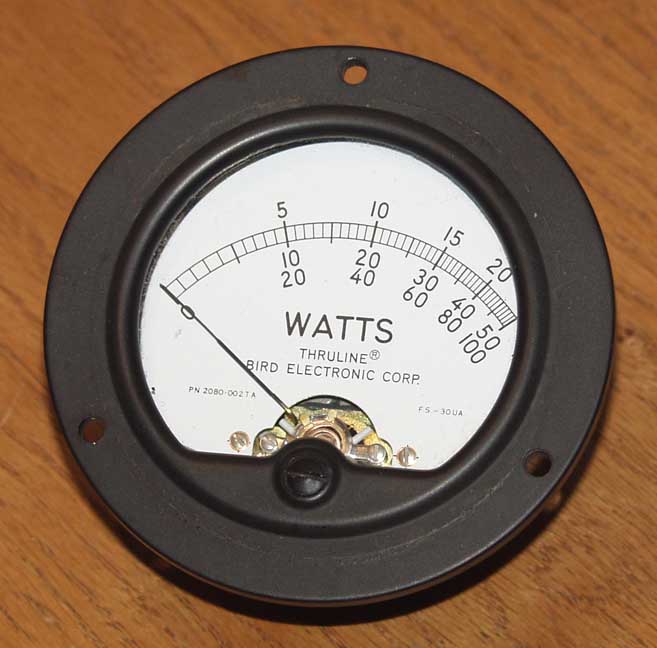

Bird 43 Replacement Meter Movement standard 30ua

NEW STYLE

All tested good

SOLD OUT

have new listed below

DO NOT loosen or remove the bottom nut against the meter housing!

Meter installation

help click me:

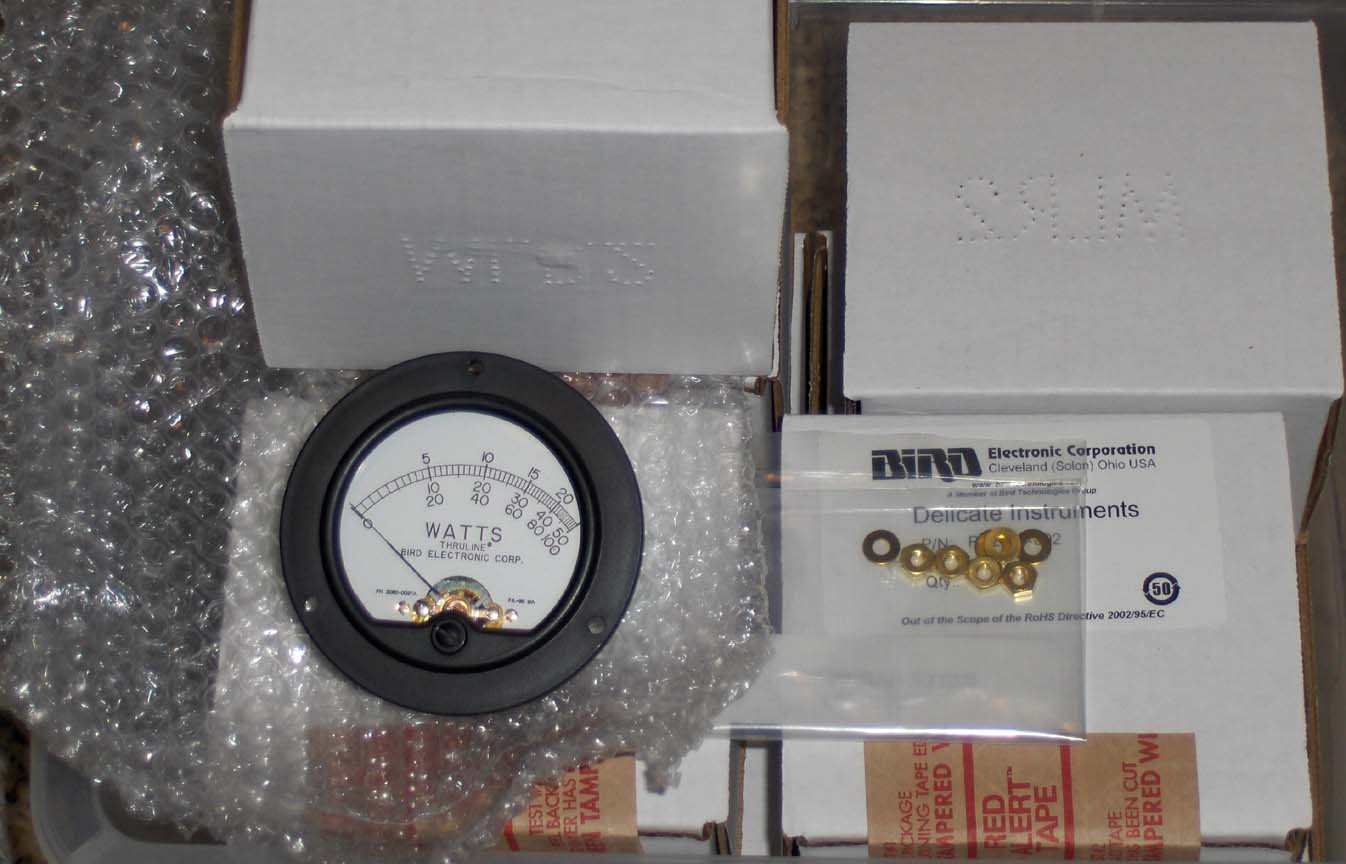

NEW replacement meter movements New in the box NEW

IN STOCK NOW

$100



I can't find any good used  I stock new with manufacturers warranty.

Meter

Movement

Large 4.5 inch meter movement

Works accurately with standard bird 43 30ua elements

SOLD

$125

DO NOT loosen or remove the bottom nut against the meter housing!

Meter installation

help click me:




LIMITED SUPPLY IN STOCK

METER MOVEMENT

on the center scale

Bird 43 Replacement Meter Movement standard 30ua

OLDER STYLE

All tested good



Sold



DO NOT loosen or remove the bottom nut against the meter housing!

Meter installation

help click me:




METER MOVEMENT Bird 4410A Replacement Meter Movement

SOLD

$85

Only one.

DO NOT loosen or remove the bottom nut against the meter housing! Bottom nut

FLAT washer

Connection LUG

FLAT washer

TOP NUT

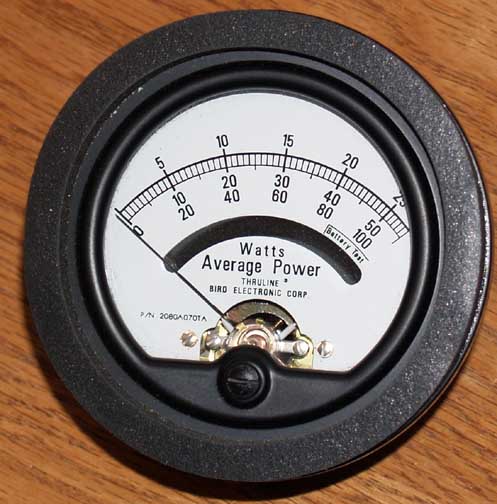

METER MOVEMENT BIRD APM-16 Meter movement Sold

$75

DO NOT loosen or remove the bottom nut against the meter housing!

Meter installation

help click me:




METER MOVEMENT Standard Bird 43 meter. Mounted in a metal box.

Includes 10 foot cable with DC connector for line section hook up

$90 Priced at what a used meter and DC connector would sell for.

I do not normally sell the metal enclosures.

I took this in trade.


Bird DC Connectors for Line Section DC Connectors for Line sections NEW

IN STOCK NOW

$15 each
Back in stock

NEW SHINY CHROME PLATED




1 5/8

elements

2-30MHz 100UA ELEMENTS PRICED AS SHOWN



also on non page







$120














Meters in case 2 25ua meters will read very close with normal bird 43 30ua elements.

Includes meters, metal cabinet and cables shown.

SOLD

SALE

$65

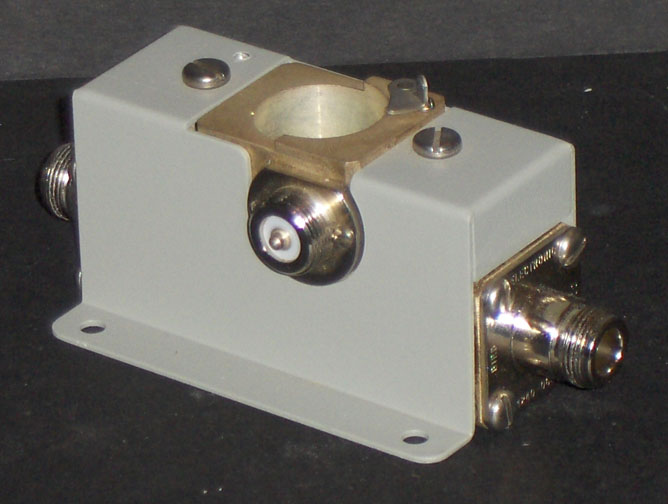

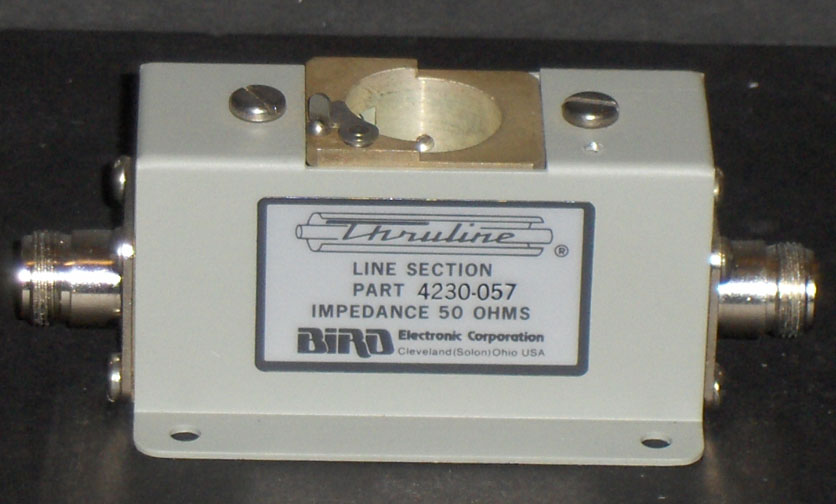

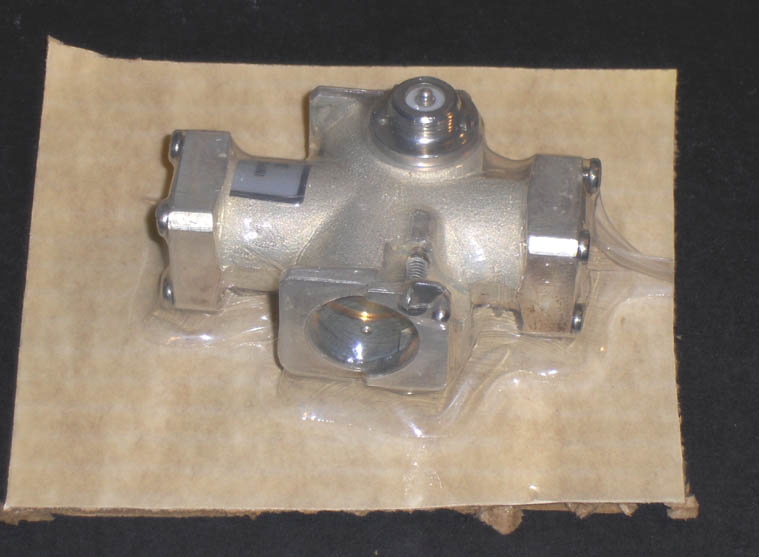

NEW Bird

Single Element Line Section

4230-057 $100

ONLY 1

 EXACT PHOTOS


Bird Single Element Line Section

This is an example photo, your item will vary.

These have been selling to fast to keep up with the photos.

$70

SLS-N-FF

N female to female

$80 SLS-UHF-FF

UHF (SO239) females

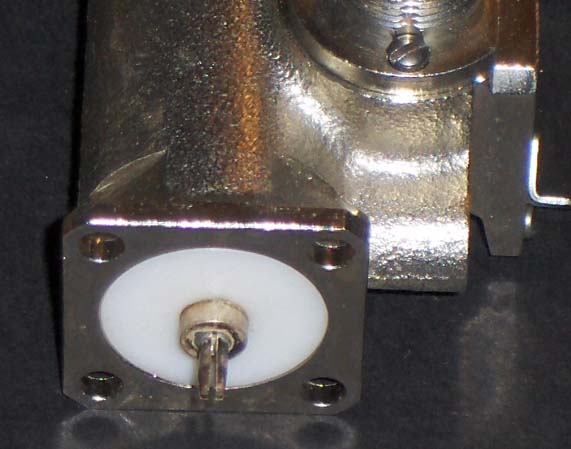

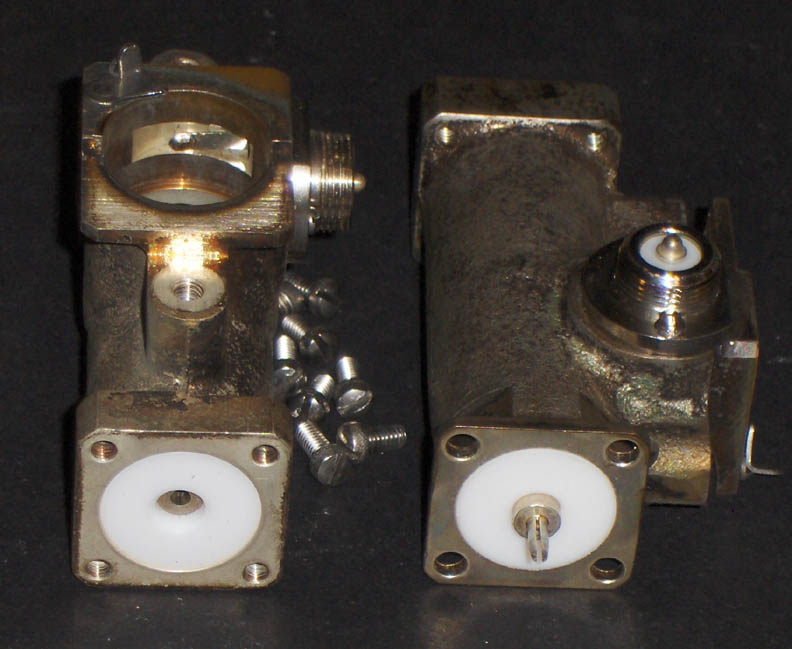

BIRD

ADD ON SINGLE LINE SECTION.

ADD THIS TO AN EXISTING SINGLE LINE SECTION WITHOUT ADAPTER OR JUMPERS TO MAKE A DUAL LINE SECTION.

REMOVE THE CONNECTOR ON YOUR LINE SECTION.

ATTACH THIS TO YOUR LINE

ATTACH YOUR QC CONNECTOR TO THIS LINE SECTION

sold

$90

INCLUDES THE SPECIAL SCREWS SHOWN.

MADE WITH A QC ADAPTER ON THE LINE SECTION.

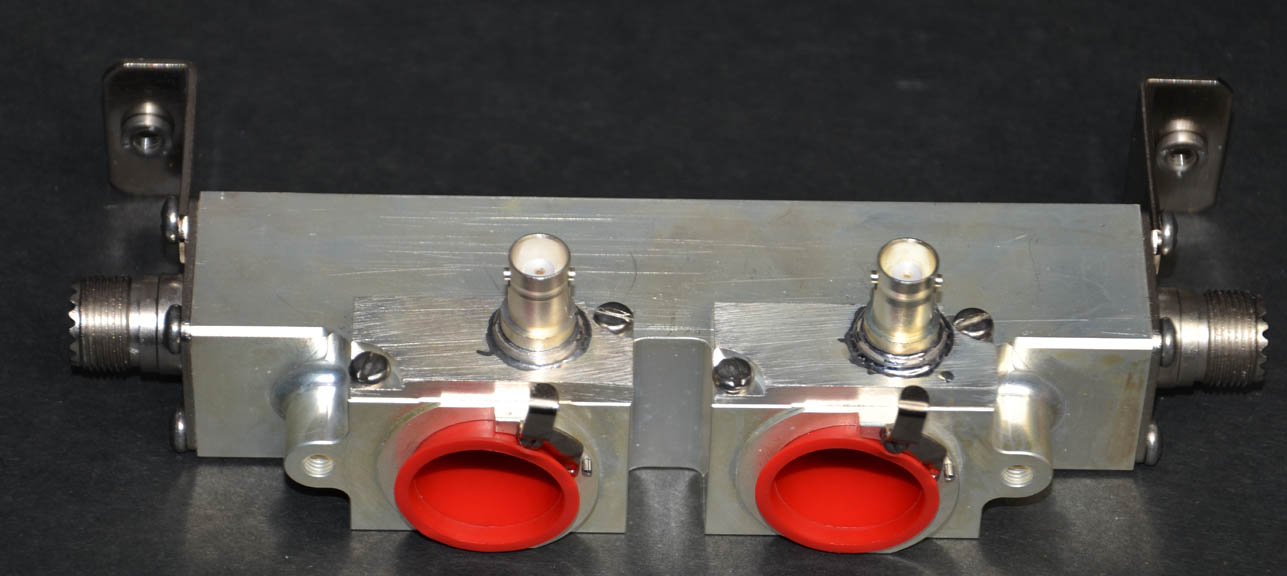

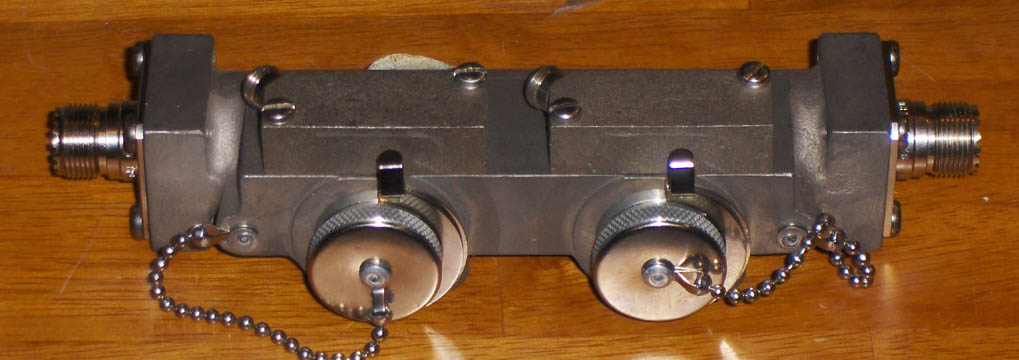

CDI

DUAL LINE SECTION

USES STANDARD CDI CONNECTOR FOR DC CONECTION.

INCLUDES THE CDI BLANK PLUGS SHOWN

$160 LIGHTER ALUMINUM VERSION.

GREAT FOR MOBILE

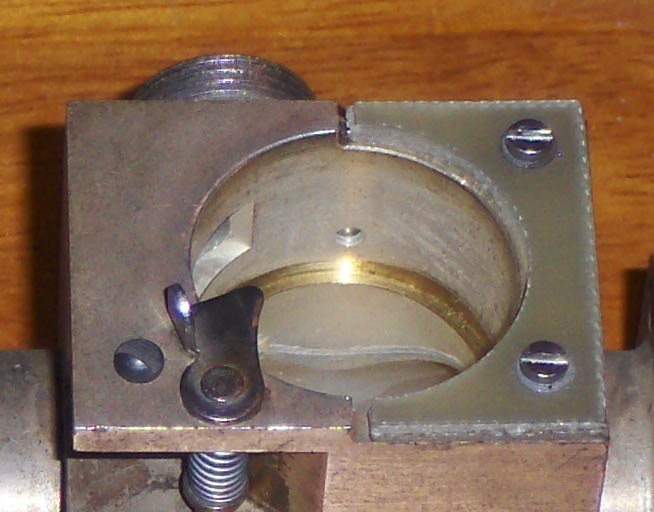

BIRD

MIL-SPEC

DUAL LINE SECTION

 VIBRATION RESISTANT LINE SECTION.

IT HAS MOUNTED FIBER BOARDS THAT KEEPS THE ELEMENTS FROM SPINNING IN HIGH VIBRATION ENVIRONMENTS LIKE MOBILE INSTALLS

SO239S

$200

I HAVE ONLY SEEN 9 OF THESE EVER

WORKS WITH NEW PLASTIC TOP AND OLD METAL TOPPED ELEMENTS.  LOOSEN THE 2 SCREWS INSERT AND LOCK THE ELEMENT IN POSITION THEN PUSH THE BOARD AGAINST THE ELEMENT TAB AND RETIGHTEN THE SCREWS.

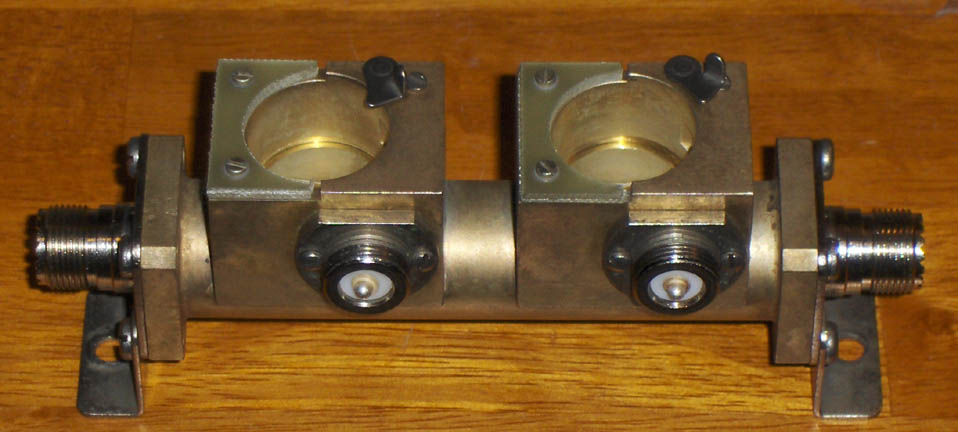

BIRD

MIL-SPEC

DUAL LINE SECTION

 VIBRATION RESISTANT LINE SECTION.

IT HAS MOUNTED FIBER BOARDS THAT KEEPS THE ELEMENTS FROM SPINNING IN HIGH VIBRATION ENVIRONMENTS LIKE MOBILE INSTALLS

SO239S AND STAND-OFF BRACKETS

$210

I HAVE ONLY SEEN 9 OF THESE EVER

WORKS WITH NEW PLASTIC TOP AND OLD METAL TOPPED ELEMENTS.  LOOSEN THE 2 SCREWS INSERT AND LOCK THE ELEMENT IN POSITION THEN PUSH THE BOARD AGAINST THE ELEMENT TAB AND RETIGHTEN THE SCREWS.

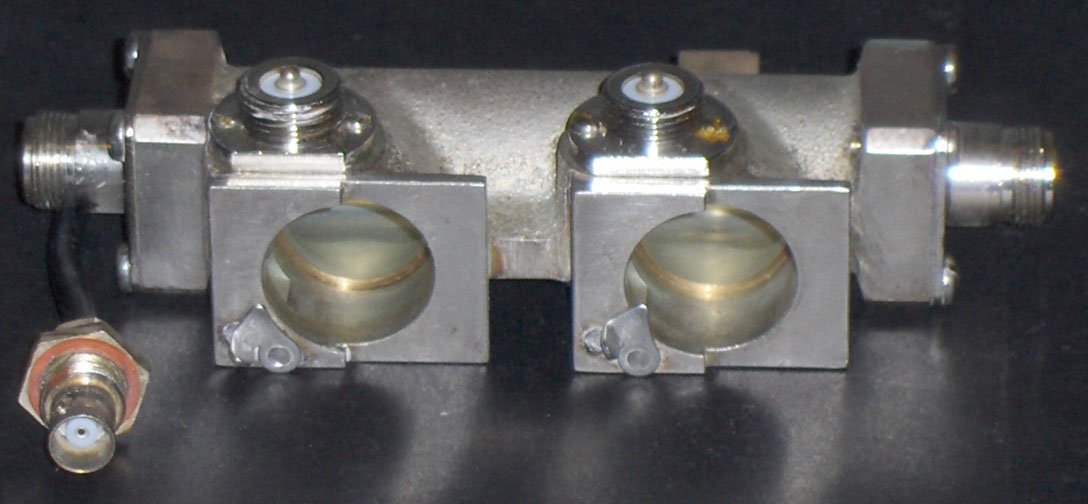

BIRD

DUAL LINE SECTION

This line has a built in sampler output to the BNC connector shown. sold

$175

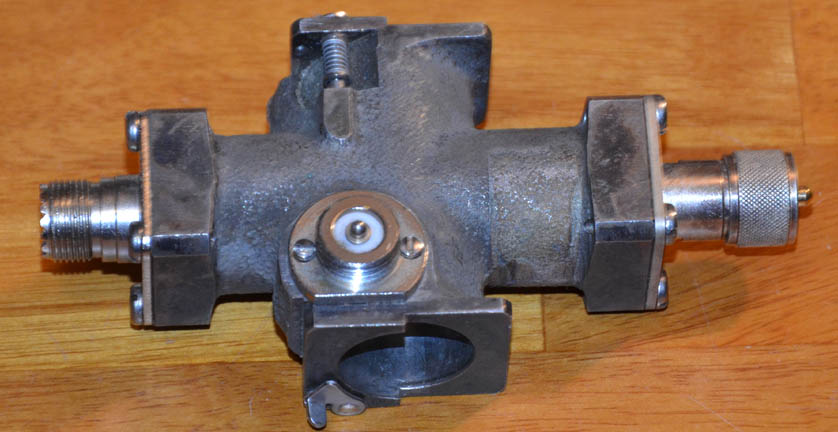

Bird Dual line section Dual element line section.  Has a PL259 on one end and a SO239 on the other.

DLS-UHF-MF-11-23-10



$175

2 in stock

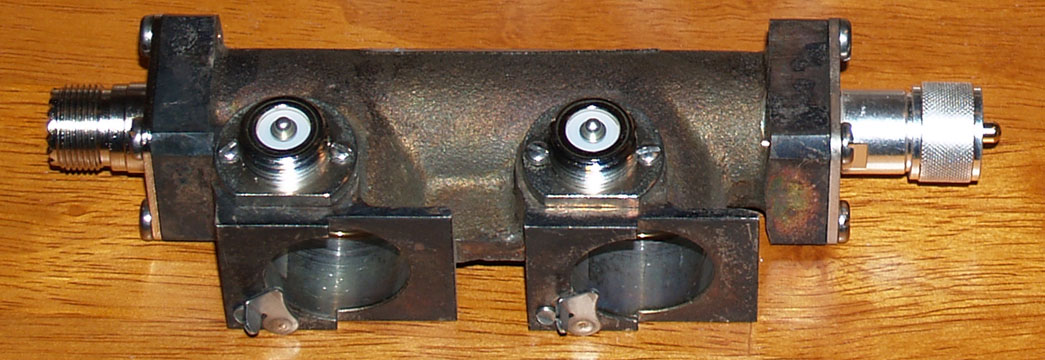

Bird Dual line section Dual element line section.  Has a PL259 on one end and a SO239 on the other.

DLS-UHF-M-F

Sold

$195



Sample Photo

ONLY 3 line left

IN stock


line section

Stand-offs

can be use with single or dual line sections. $10 per pair

In stock

I do no have enough for all the line sections.   When they are gone they are gone.

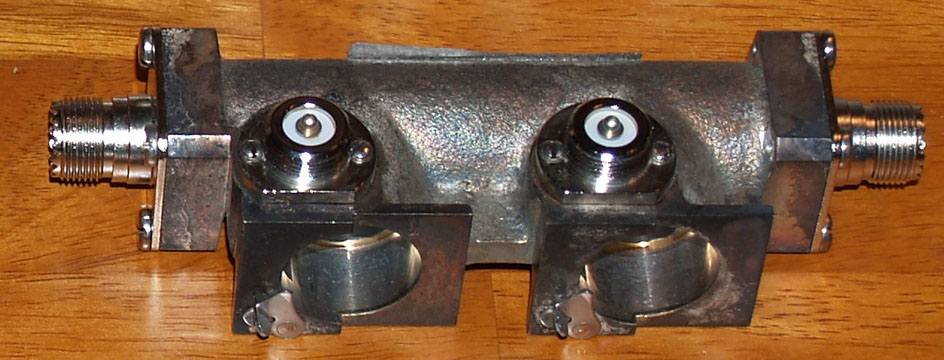

Bird Dual line section Dual element line section.  Has a two SO239 (UHF-f) connectors.

DLS-UHF-F-F

SOLD

OUT

$170

Sample Photo

ONLY 3 dual lines left

IN stock

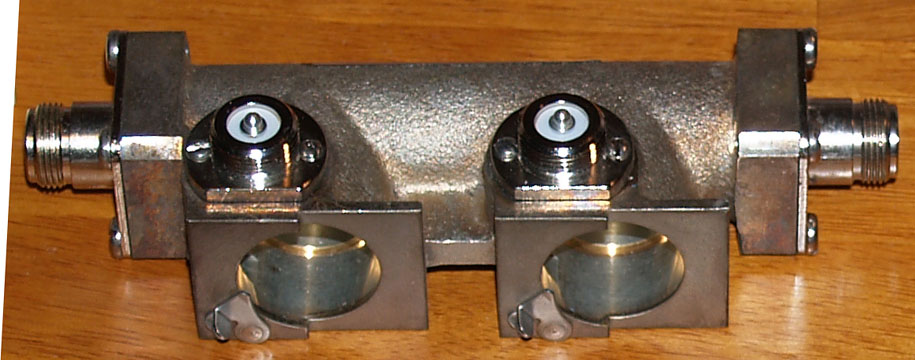

Bird Dual line section Dual element line section.

Two N -female connectors

DLS-N-F-F

SOLD

OUT

$165

Sample Photo

ONLY 3 dual lines left

IN stock

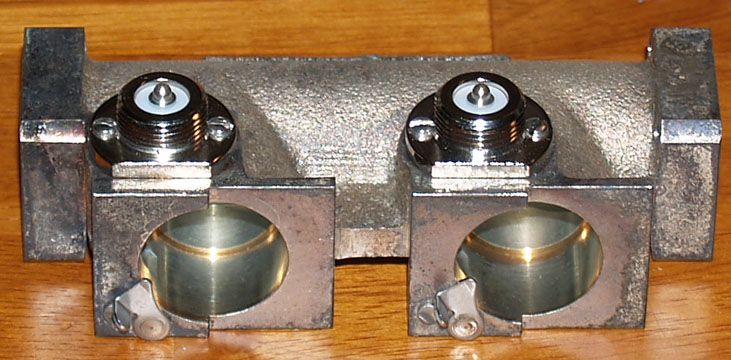

Bird Dual line section No connectors supplied

DLS-NO-Connectors

SOLD

OUT

$160

Sample Photo

ONLY 3 dual lines left

IN stock

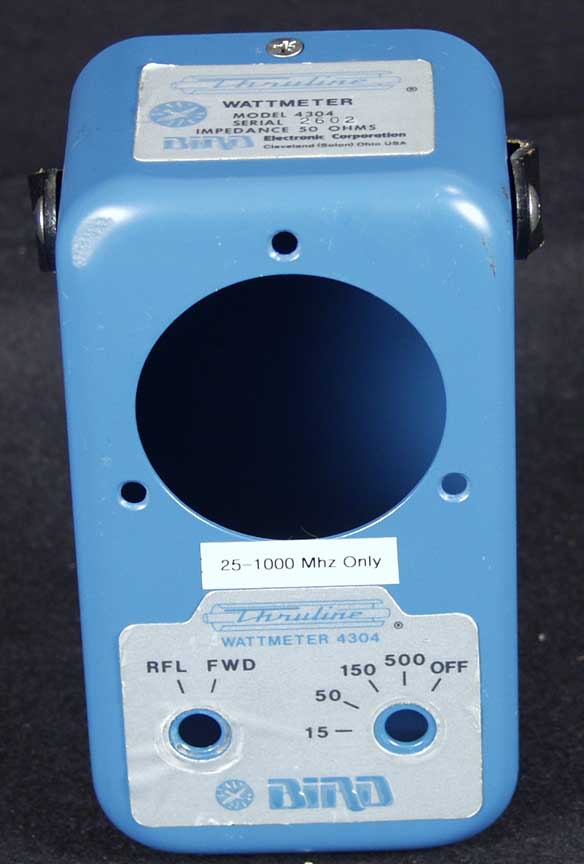

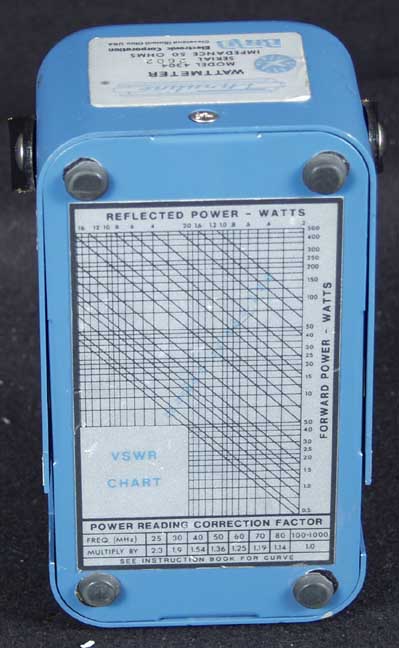

BIRD 4304 Cabinet / CASE Super condition bird 4304 cabinet.

Most important = it has NO extra holes.

SOLD

$65

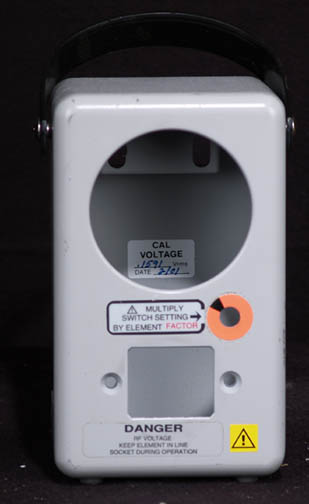

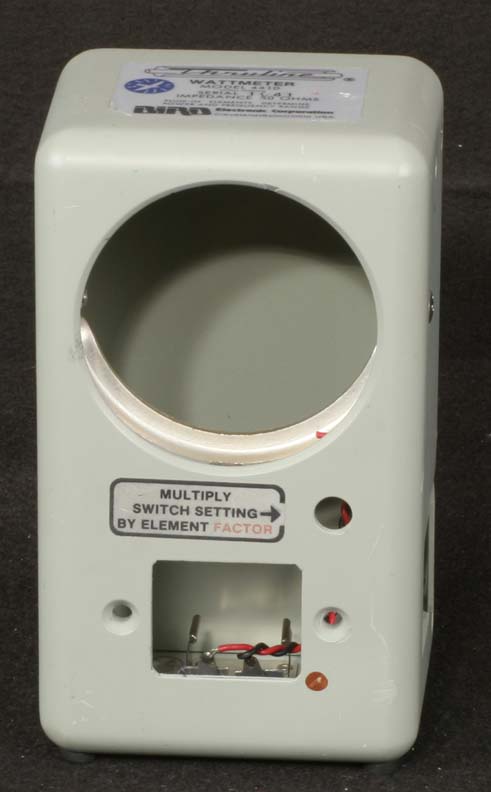

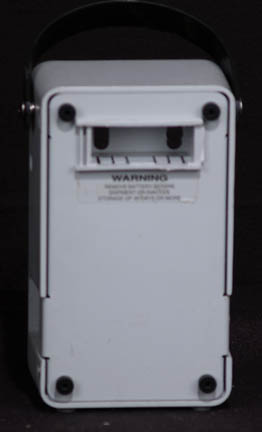

Bird 4410 case /

Cabinet

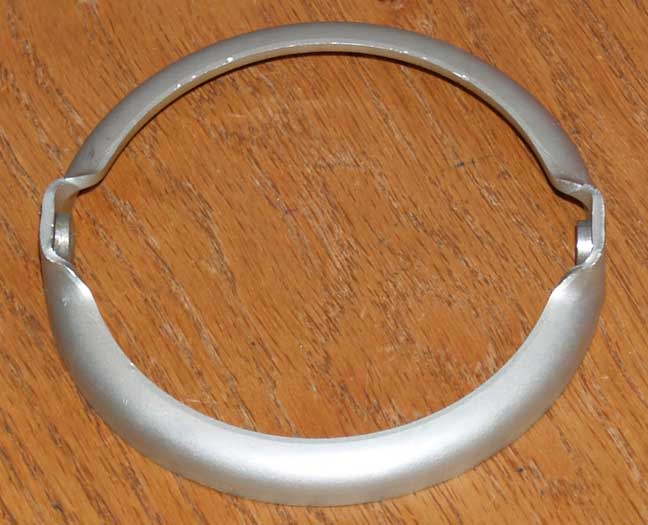

 Bird 4410 meter housing with,  MOUNTED 9V battery holder, and meter ring .

Most important = it has NO extra holes.

SOLD

$75

ONLY THIS ONE

Electronics went into a repair / install.

ONLY THIS ONE

Meter installation

help click me:



Bird 4410A case /

Cabinet

4410A CABINET

WAS REPLACED DUE TO THE MISSING THE BATTERY COVER/DOOR

$50

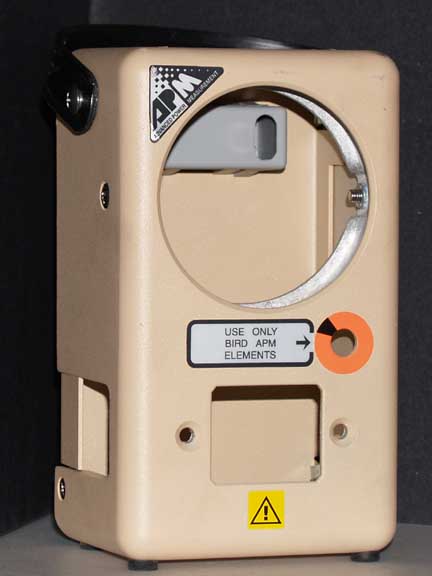

Bird APM-16 Case / Cabinet Bird APM-16 meter housing with,   9V battery holder door on the top rear cover, and meter ring.

Most important = it has NO extra holes.

SOLD

$75

ONLY THIS ONE

  Meter installation

help click me:



 Handles Handmade

Replacement Leather Handles

For the 43 and like meters

OUT of stock

SEE BELOW

$10

USE PLASTIC HANDLES BELOW.


Original Bird  Handles

NEW PLASTIC Replacement Handles made by Bird

For the 43 and like meters

$6  each NEW

IN STOCK NOW


This is the handle currently used on all 43 type meters.
Bird feet Replacement feet for the bottom of Bird 43 and some other meters. NEW

IN STOCK NOW

$2 each

4 for $5

have about 200
Meter Ring Holds the meter in a 43 cabinet. $10 IN stock
43-CABINETS BIRD 43 CABINETS SHOWN BELOW INCLUDE

4 NEW BOTTOM FEET, SO YOU CAN REMOVE FOR PAINTING AND REPLACE THEM

ELSE THEY ARE EXACTLY AS SHOWN.  IF YOU DON'T SEE IT = YOU DON'T GET  IT

OTHER REPLACEMENT PARTS SHOWN DIRECTLY ABOVE

ALL INCLUDE THE BACKS AND ELEMENT HOLDING HARDWARE MOST IMPORTANTLY

NO HIDDEN EXTRA HOLES


43-CABINETS 43-CAB $40 WITH RING Meter installation

help click me:







Prices are determined with a formula involving prior selling prices, current stock, and cosmetic condition.

The letters in my item ID are for my reference to assure you get the correct item.   I often photograph several hundred element at a time. The only way to keep track of the element is with a unique item ID.  An item with AAA is not better or worse then an item with RRR, HHH, or ZZZ.  Nicer items of the same type are priced higher.

All elements are Guaranteed NOT DOA = Click for testing link

Stock changes quickly please verify the element is still in inventory before doing paypal.

 AuctionSniper.com - Easy eBay bid sniper solutions.  Tired of being outbid in the last few seconds on eBay, and not being fast enough to bid again??   This service bids for you to the amount you tell them when you tell them.   No fees unless you win then 1% of the win amount (not your bid amount).  95% of my eBay wins are with auction sniper, the rest are buy it nows.  I have been using it for 4 years with no problems.
Easy eBay bid sniper solutions.

Truly the Easiest way to ebay.   Join for free, and stop being outbid in the last few seconds..    For a limited time you get 3 free snipes (Uses) when you join.



Send mail to Tim Brown with questions or comments about this web site. Copyright NM3E.com, LLC 2003-2013
ALL Photos on these pages are the property of NM3E.com, LLC (copyright 2003-2013) any use or misuse will be dealt with in the harshest way possible!!!
BIRD® and Thruline® are registered trademarks of BIRD® Electronic Corporation, 30303 Aurora Rd.  Solon, OH 41139......http://www.bird-technologies.com/
