Prices shown do NOT include shipping.

A few photos of our Hawaiian vacation

ALL Content on these pages including Photos are the property of NM3E.com, LLC (copyright 2003-2017)





 All attenuators are tested at their full power up to 1000 watts at 14MHz.  No other tests are done unless requested.

Click on thumbnails (small photos) for larger photos.

Description ID # Price Photos QTY in Stock INFO INFO

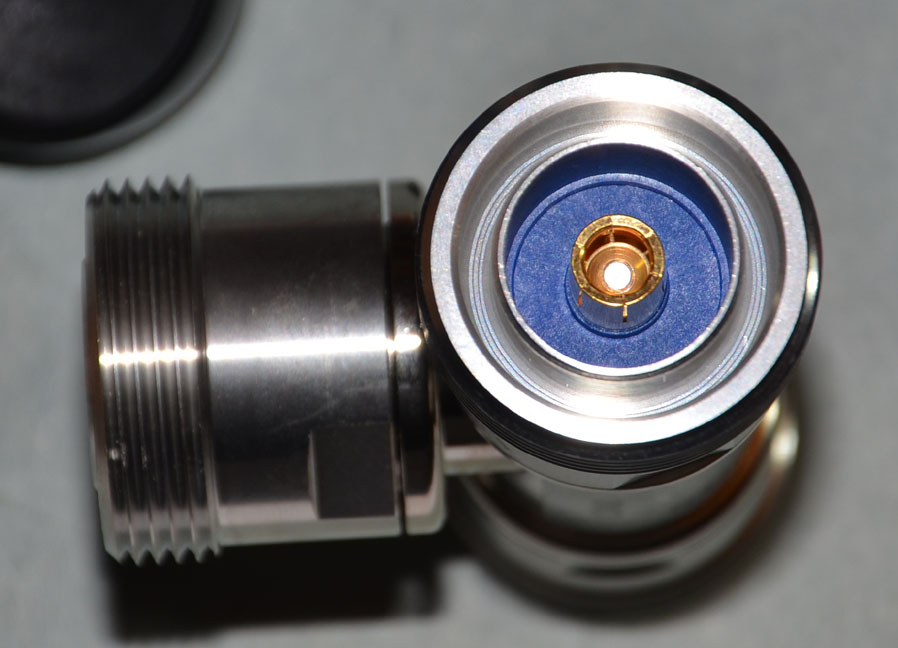

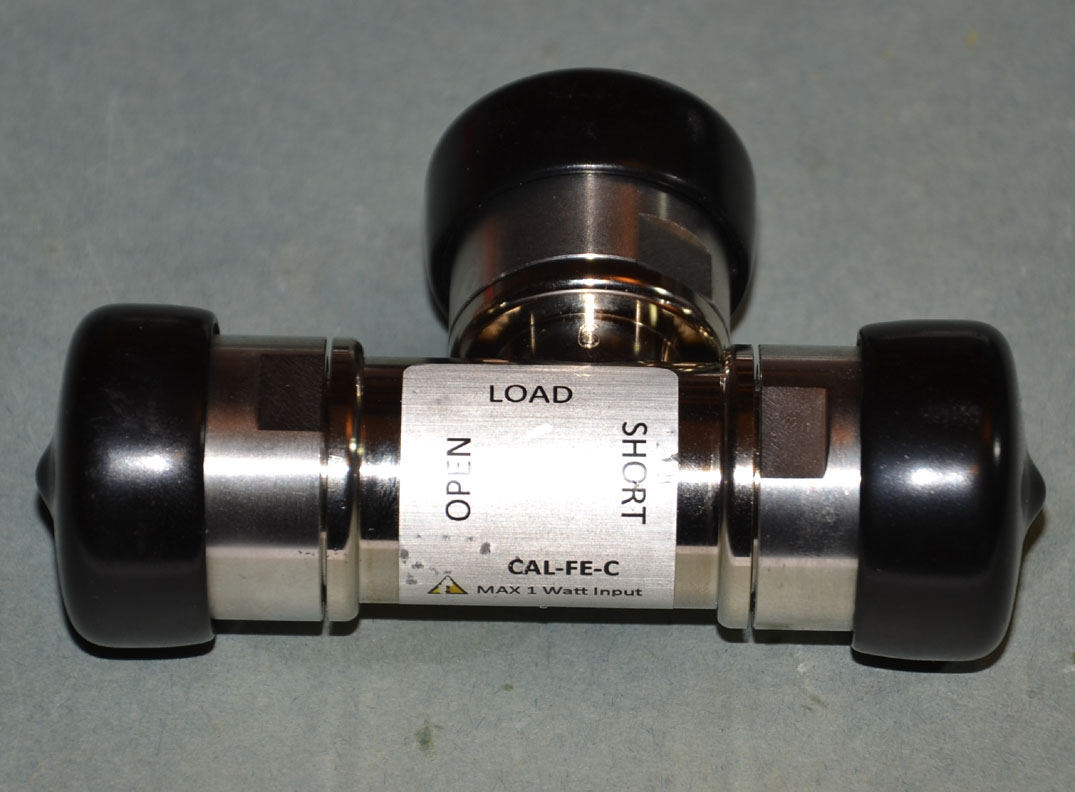

BIRD

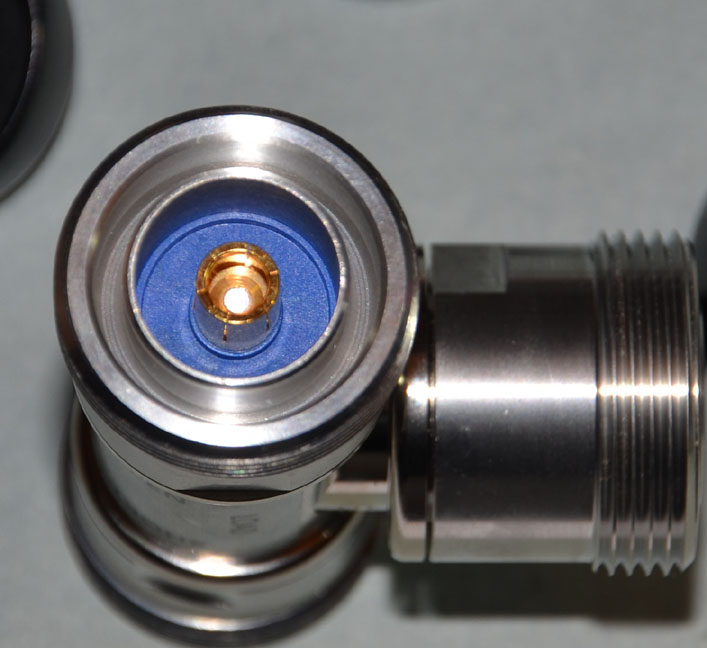

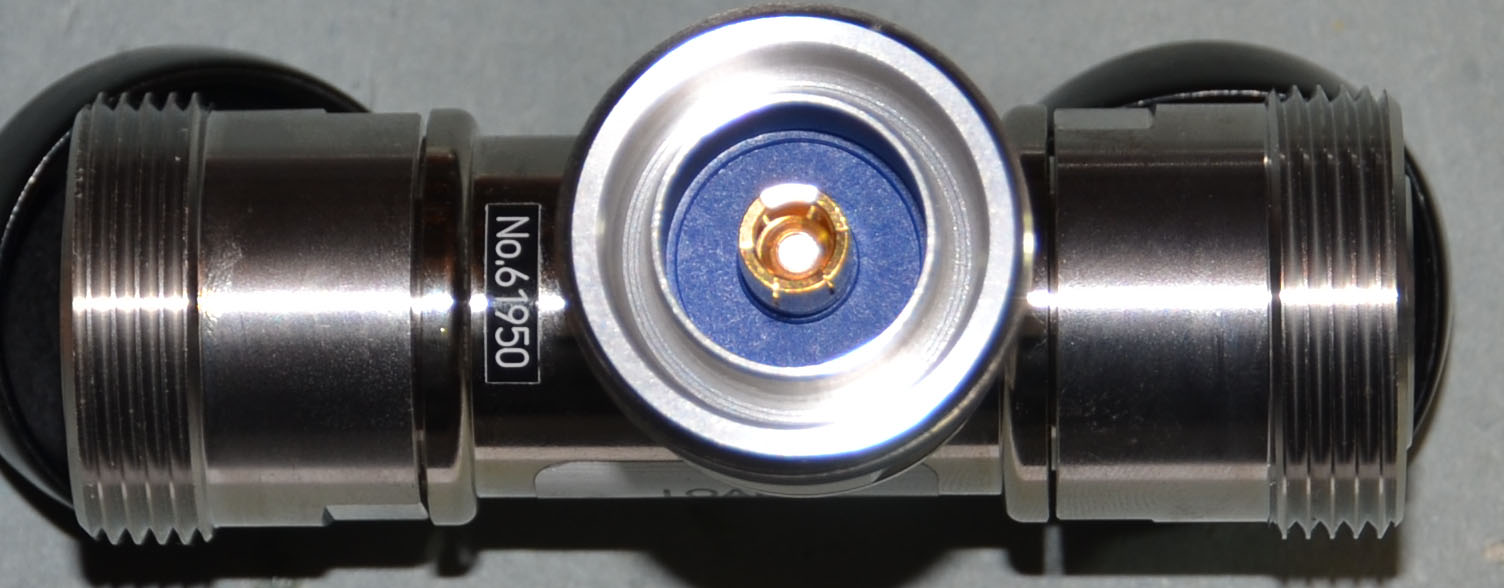

CAL-FE-C

$400

BIRD CALIBRATION STANDARD

DC-6GHz

OPEN SHORT LOAD

(((BIRD's LIST PRICE

IS $709)))



7/16 female DIN connectors





7/16 female DIN connectors

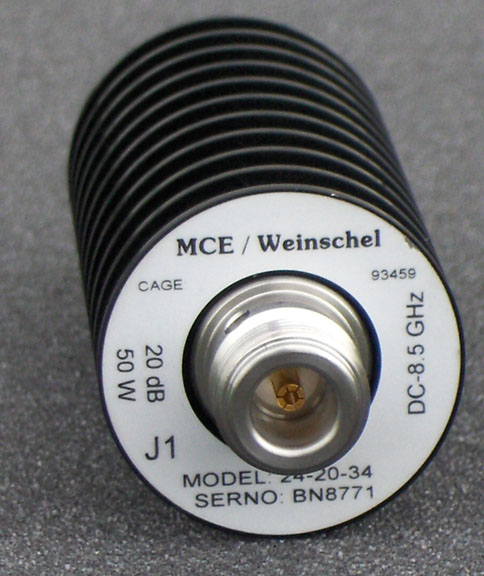

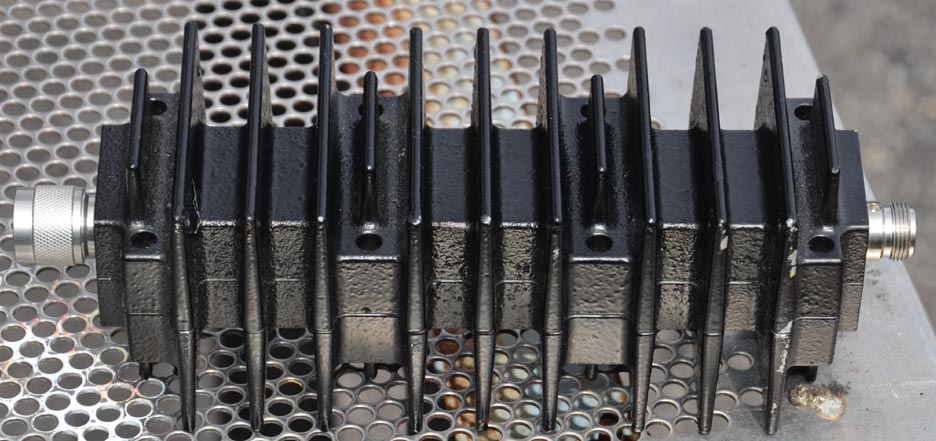

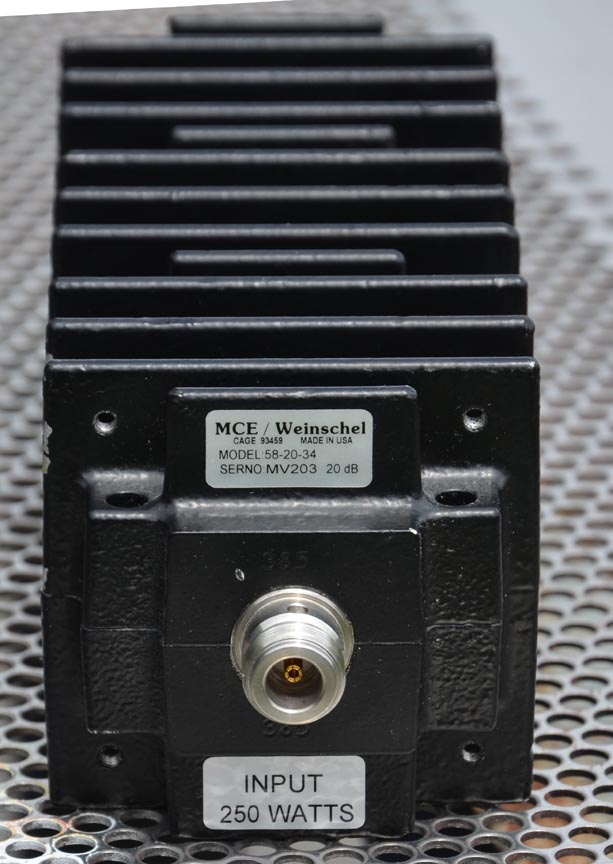

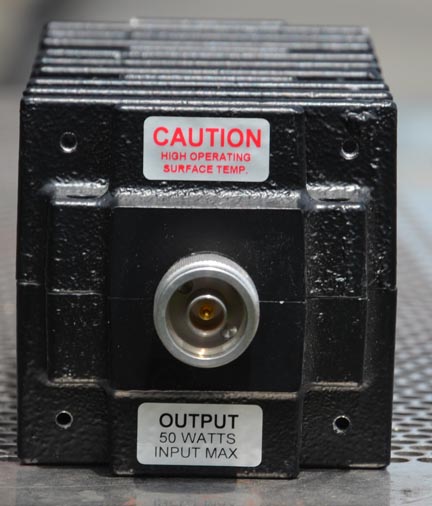

MCE / Weinschel



ATTENUATORS

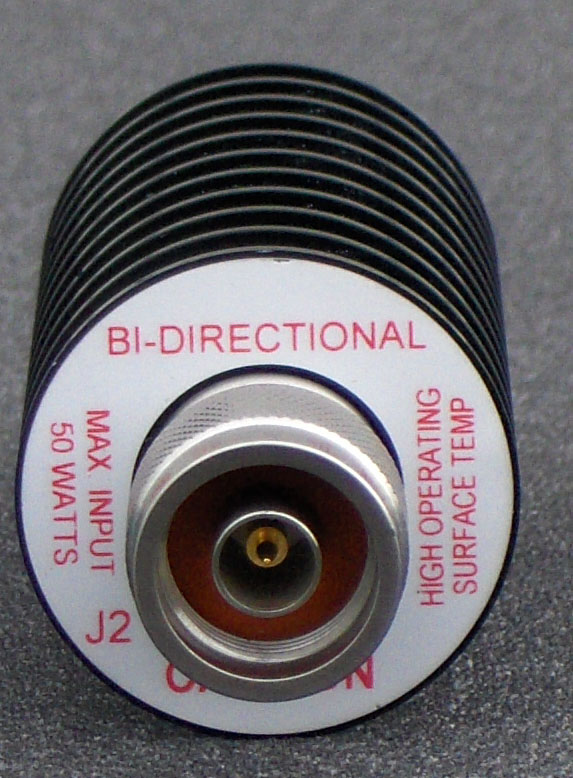

New 50 Watt

20 dB

 Attenuators

 N-male in/out N-female.

Bi-directional

SOLD

0 in stock

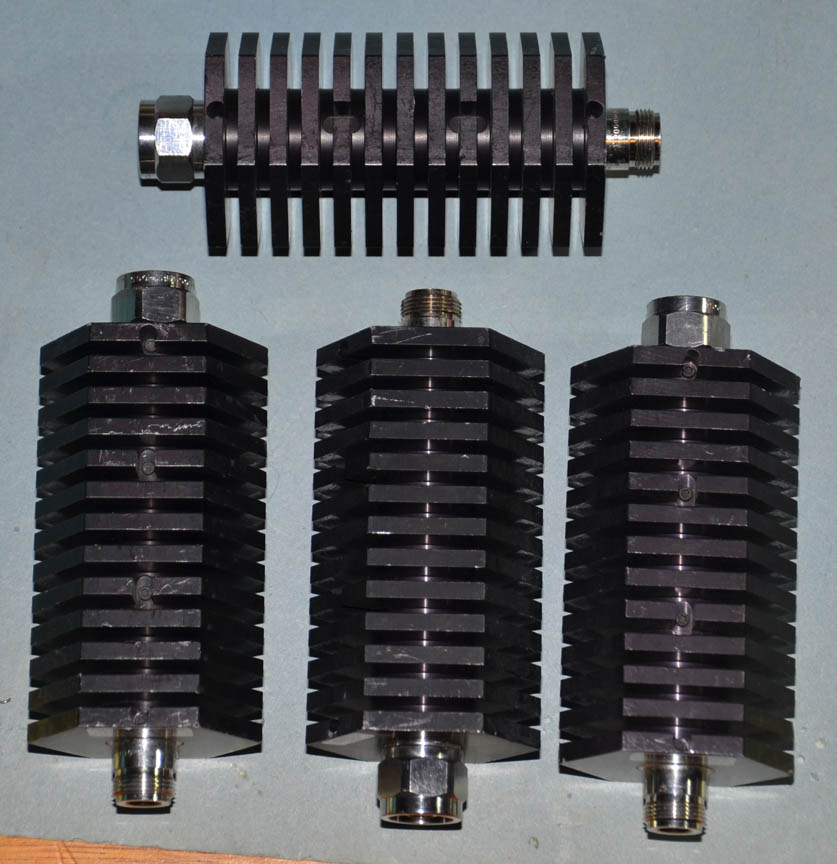

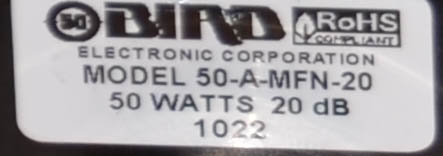

BIRD

50-A-MFN-20

20dB

ATTENUATORS

20 dB

DC-2.4GHz

 Attenuators

 N-male in/out N-female.

Bi-directional



$75 4 IN STOCK

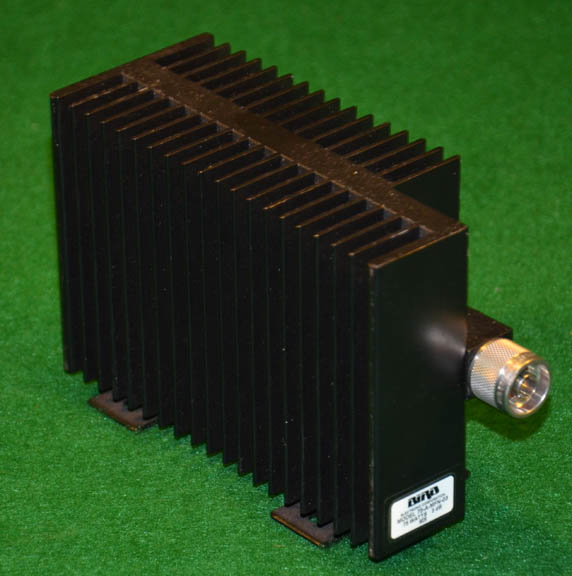

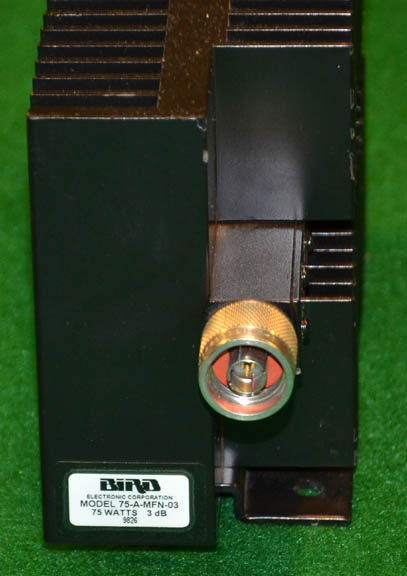

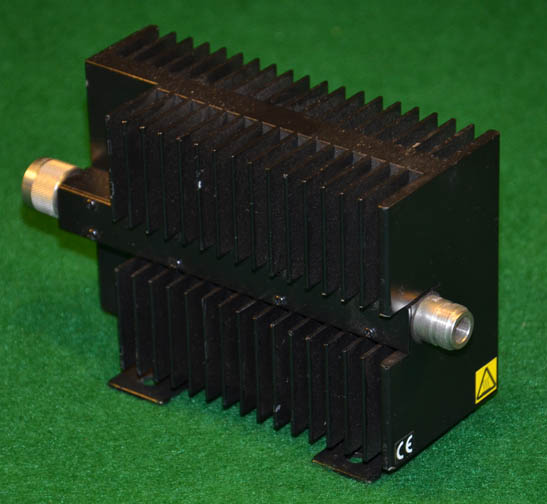

75-A-MFN-03 BIRD 3dB ATTENUATOR

$90

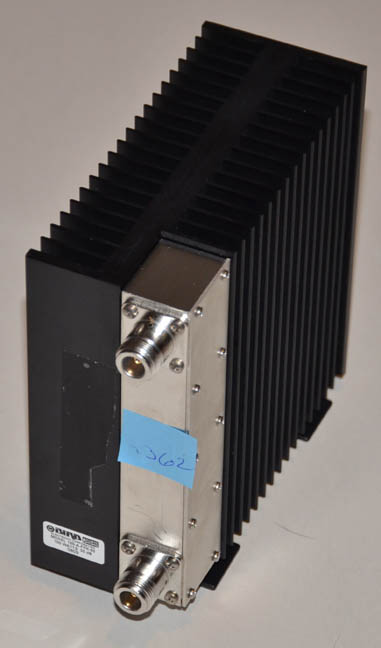

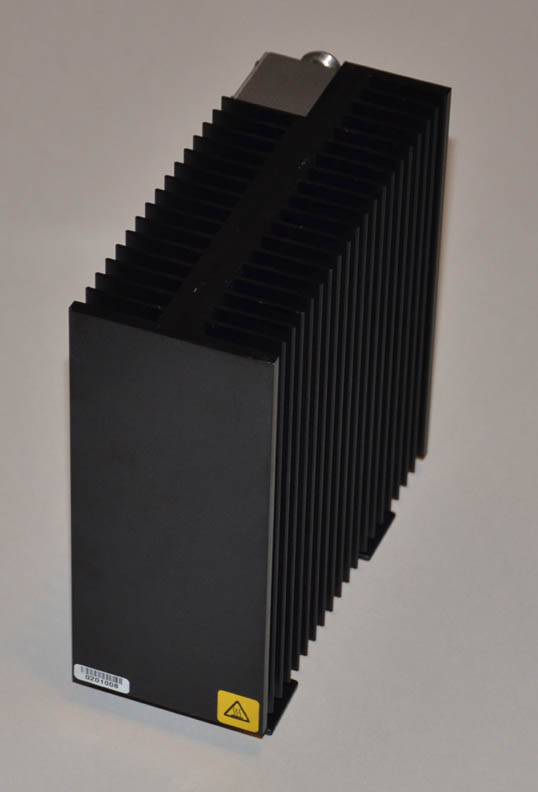

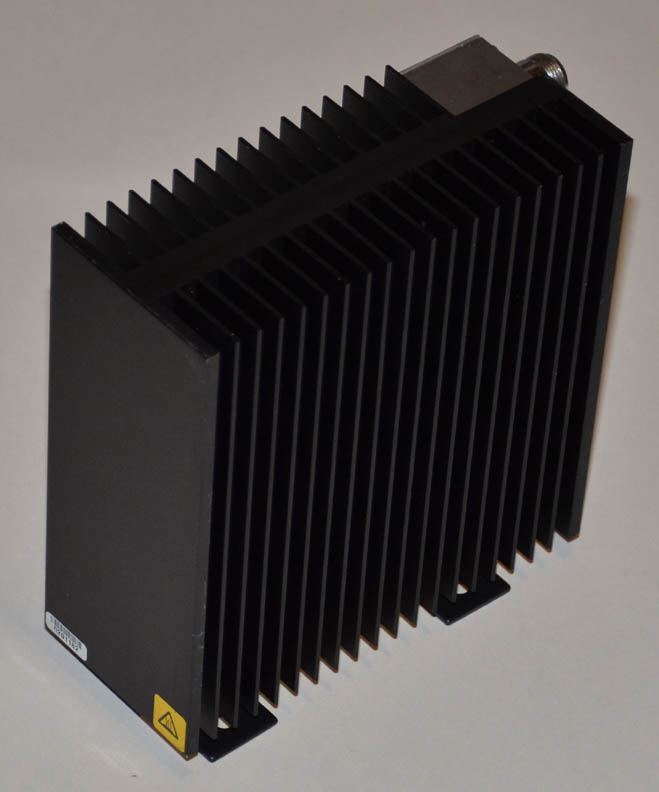

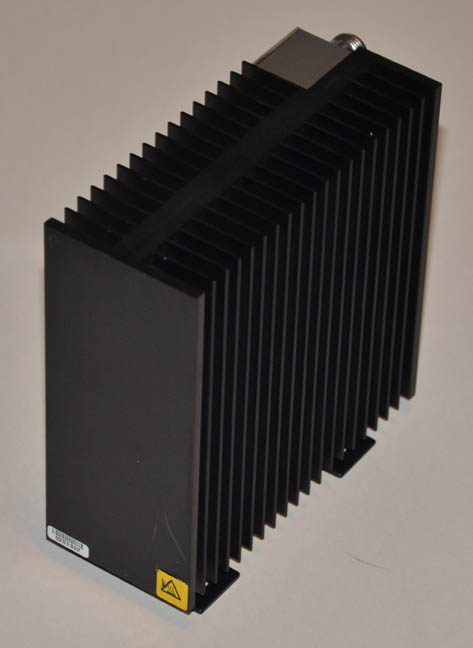

100-A-FFN-30 BIRD 30dB ATTENUATOR

BI-DIRECTIONAL BOTH CONNECTORS ARE N-female

FRONT + SIDE

# 201362

$110

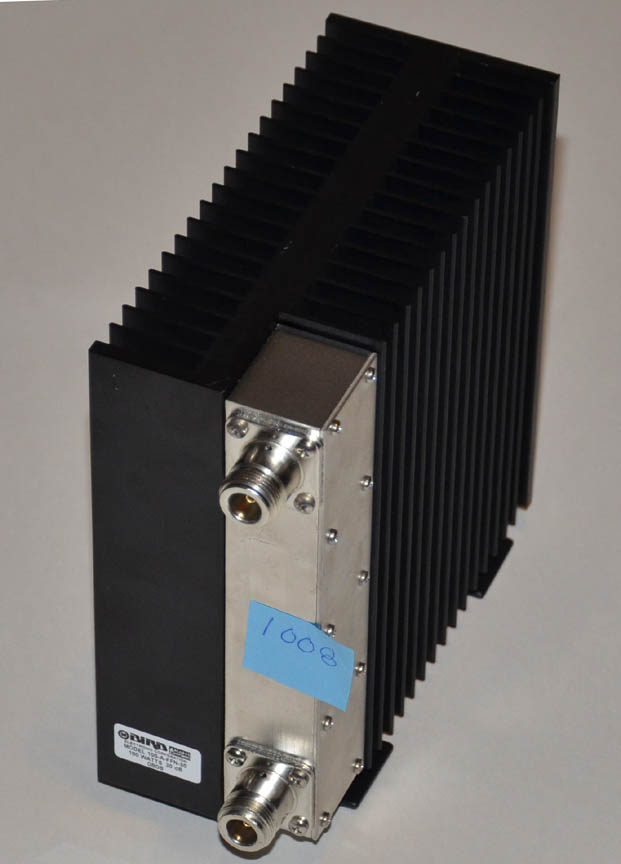

201008

$120

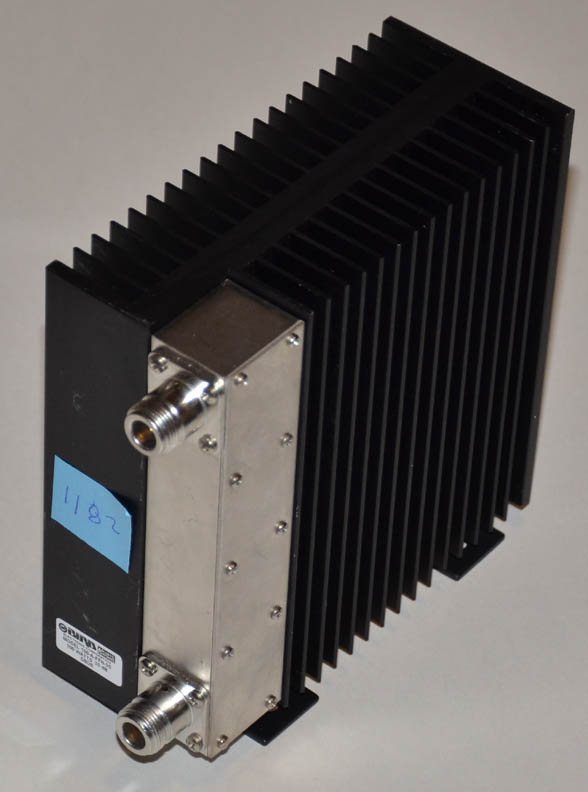

#201182

$115

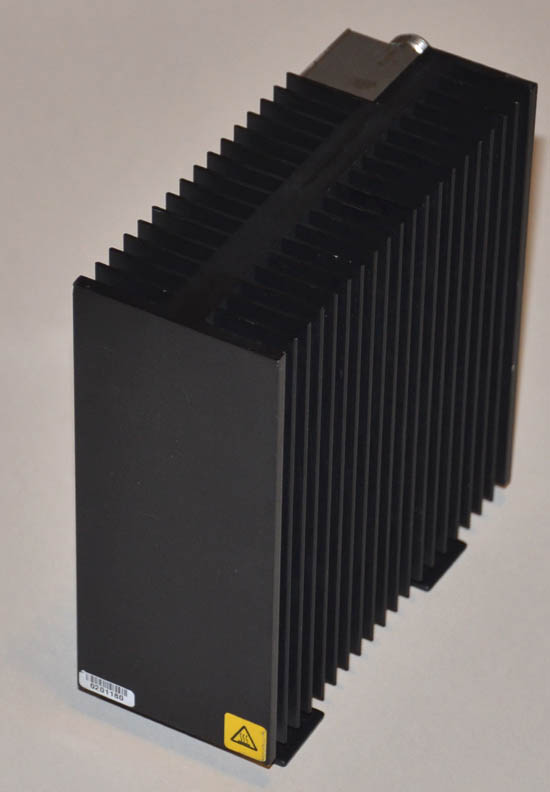

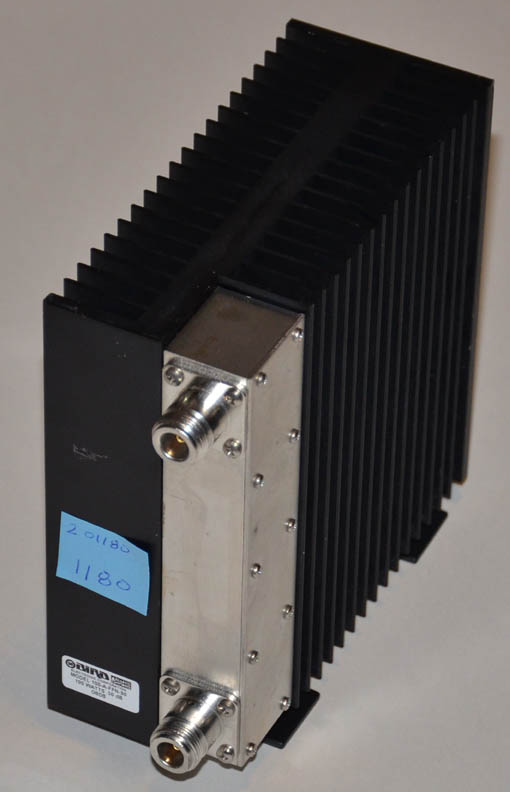

#201180

$115

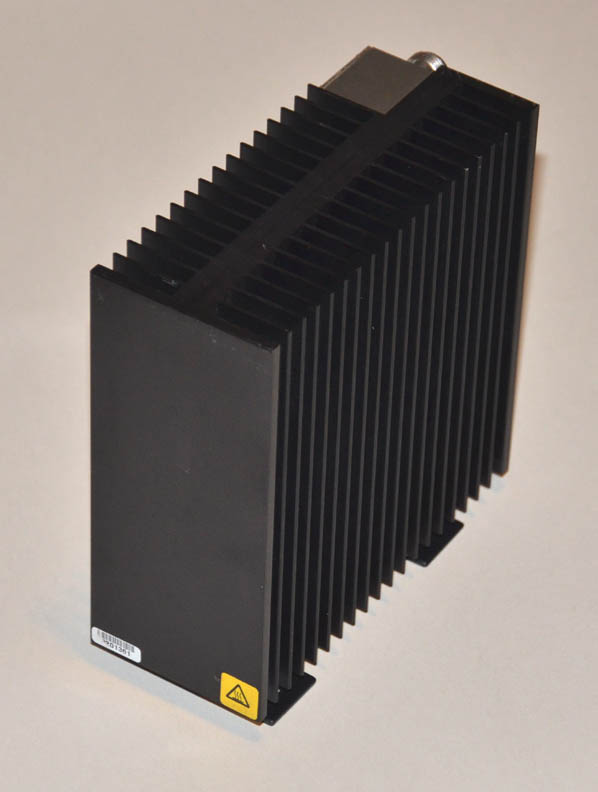

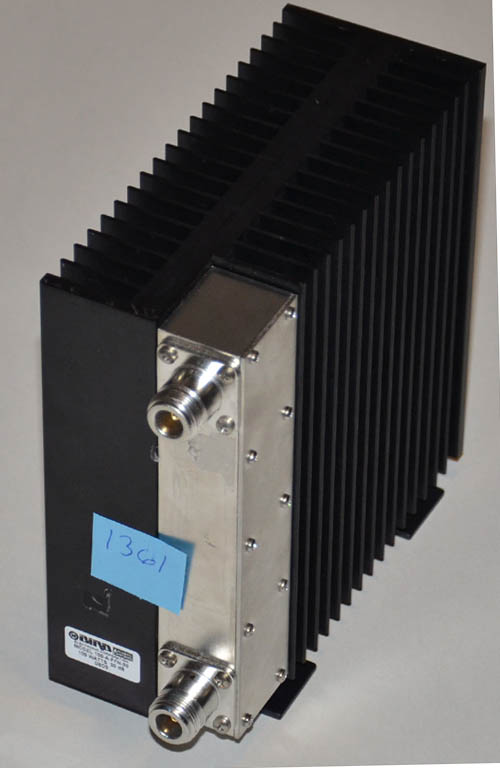

# 201361

$115

  PRICES BETWEEN PHOTOS

REAR + OTHER SIDE

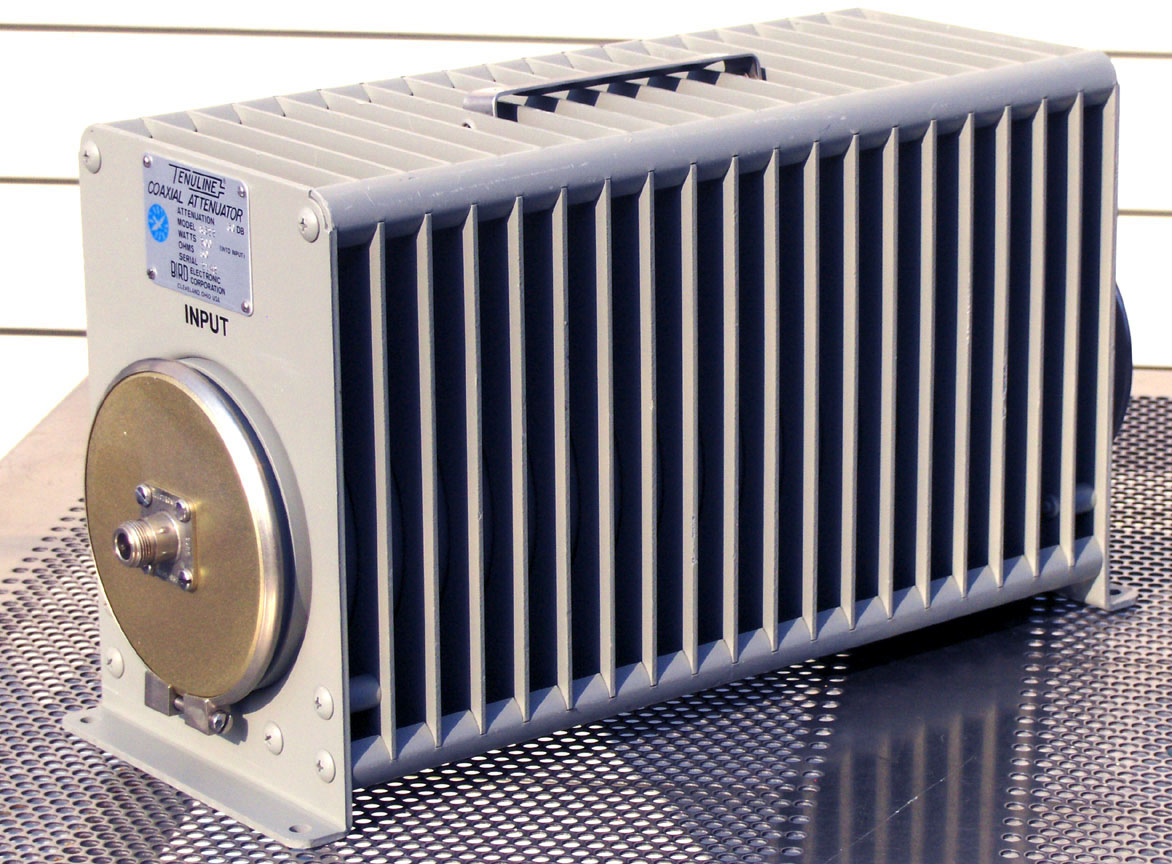

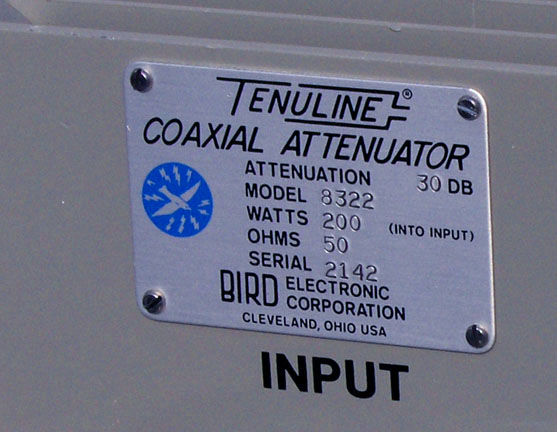

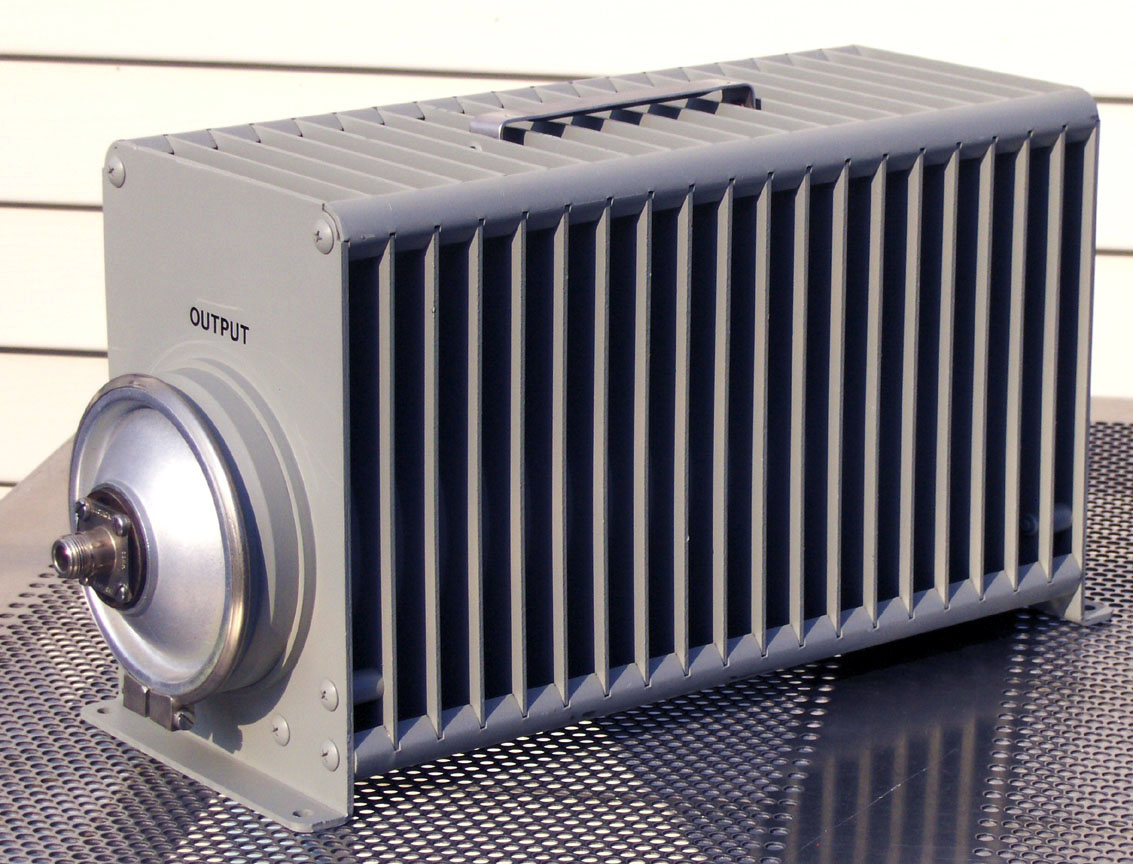

Bird 200Watt 30dB

Serial #2142

Bird 8322

30dB 200 watts CCS INPUT  (Continuous Commercial Service) Attenuator

SOLD

$295

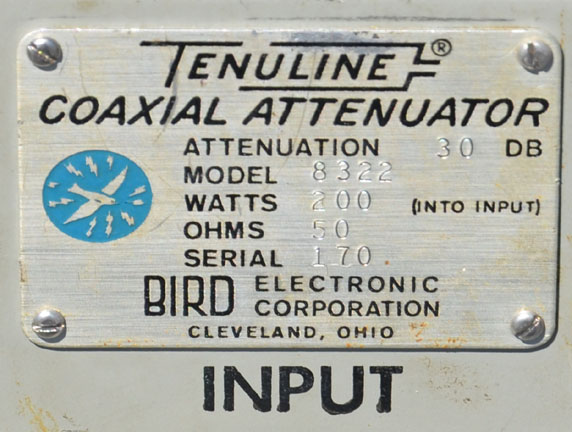

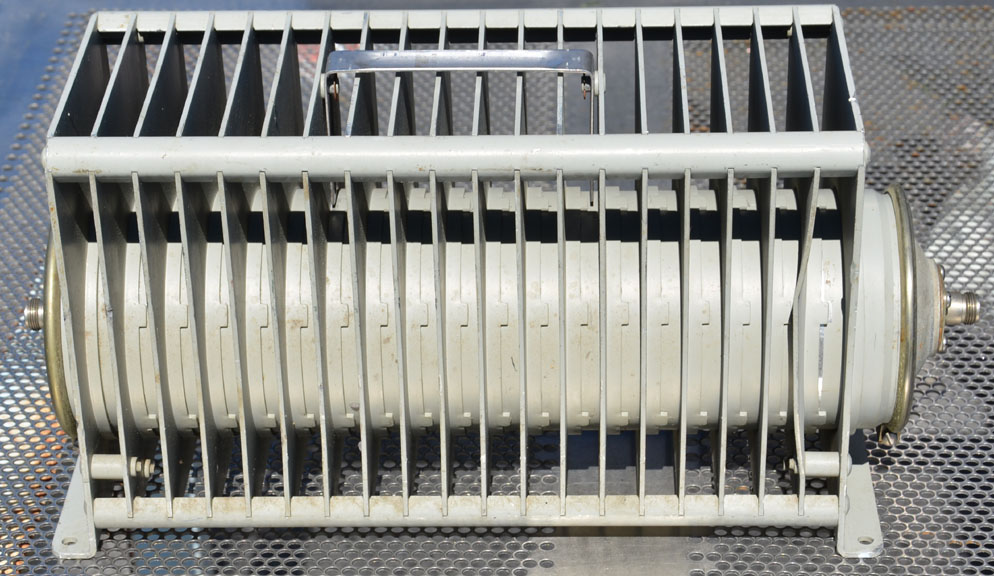

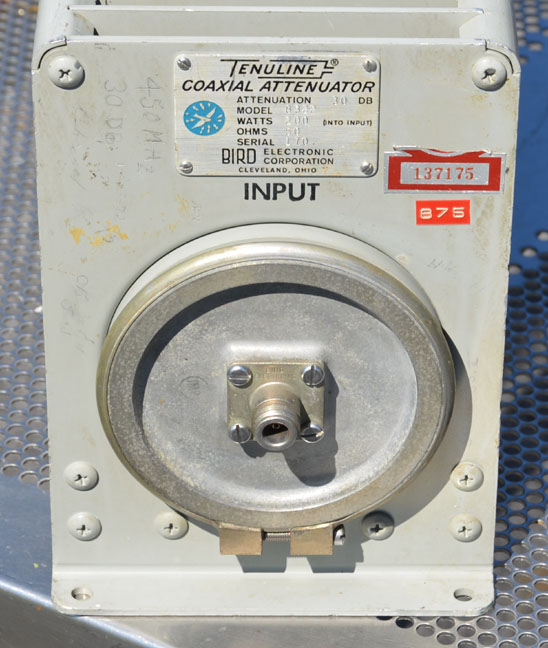

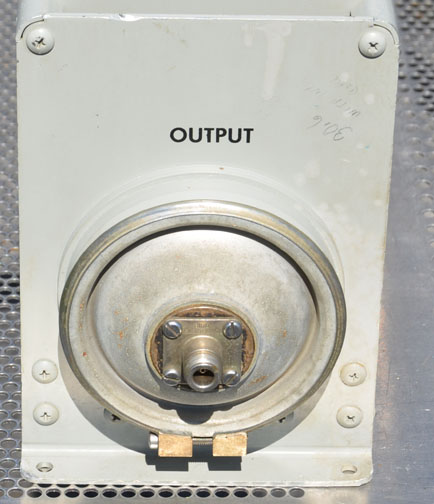

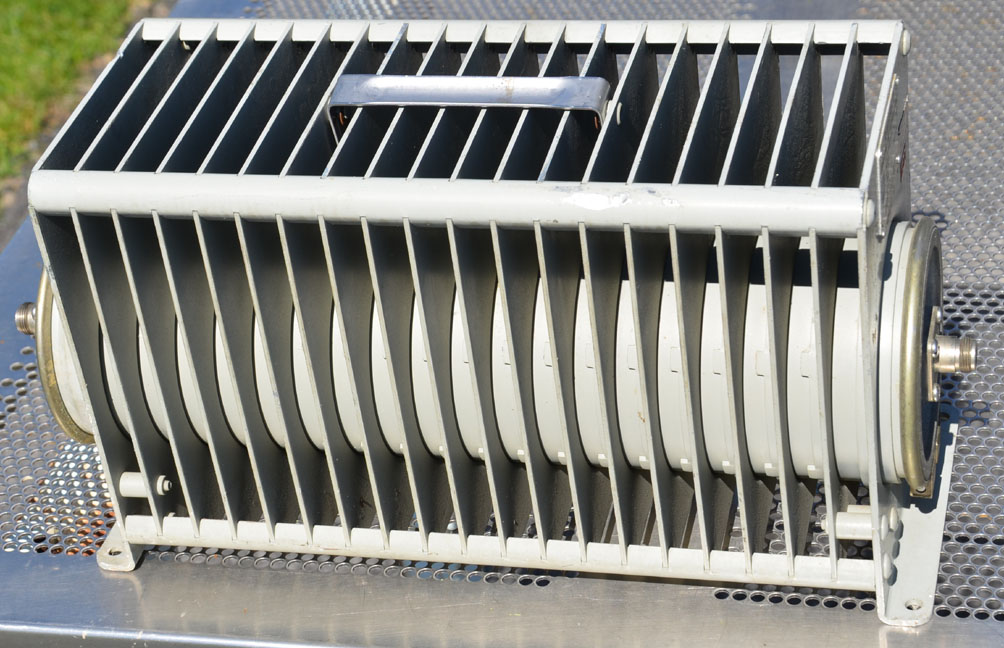

Bird 8322

200 Watt 30dB

ATTENUATOR

Serial #170

Bird 8322

30dB 200 watts CCS INPUT  (Continuous Commercial Service) Attenuator

$250

needs a good cleaning

Bird 8322

200 Watt 30dB

ATTENUATOR

Serial # 6315

Bird 8322

30dB 200 watts CCS INPUT  (Continuous Commercial Service) Attenuator

SOLD

$325

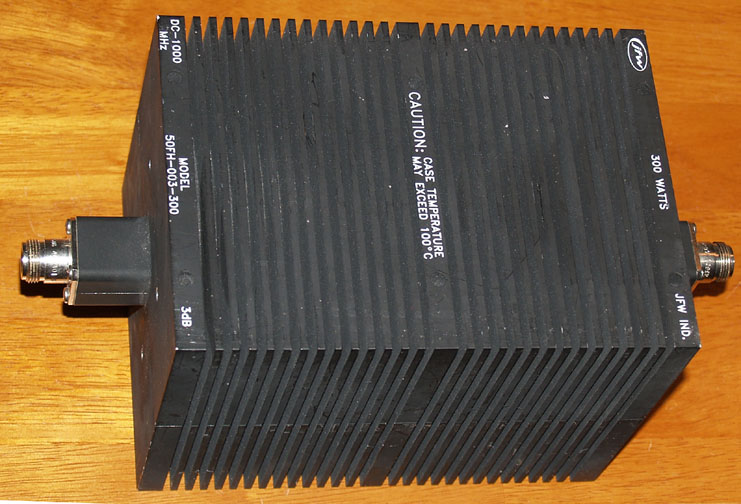

300 Watt 3dB

DC - 1000MHz

N-Female IN/OUT

Very heavy duty heat sink on this attenuator.

DRY attenuator

SOLD

$195

500MHz

SWR 1.09:1

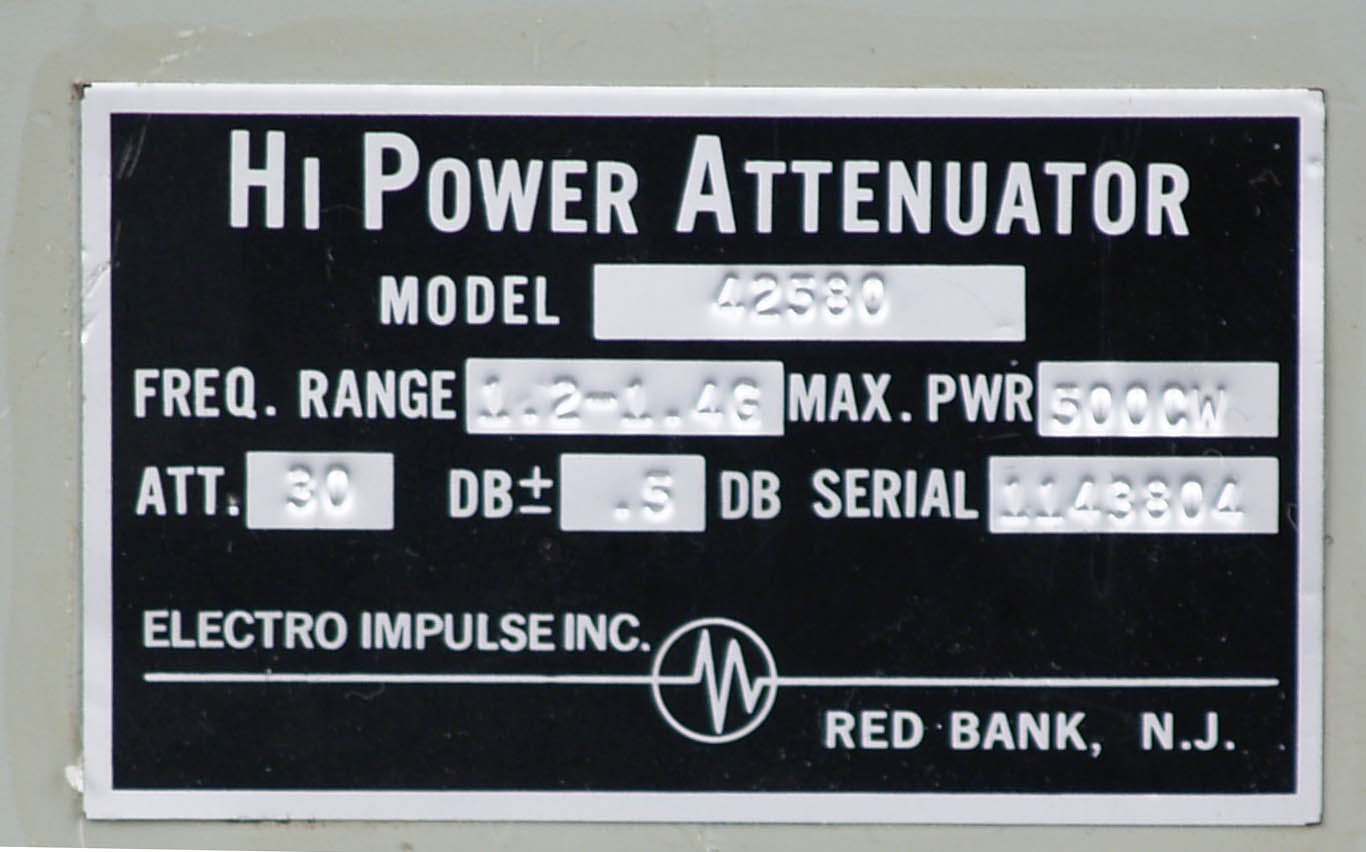

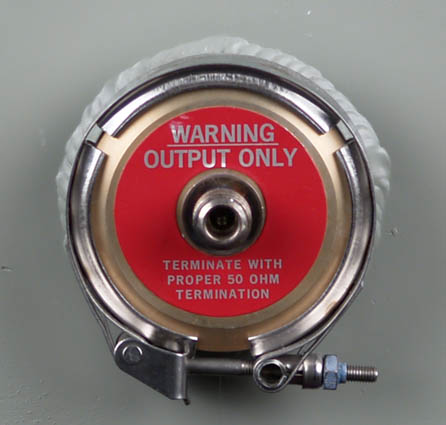

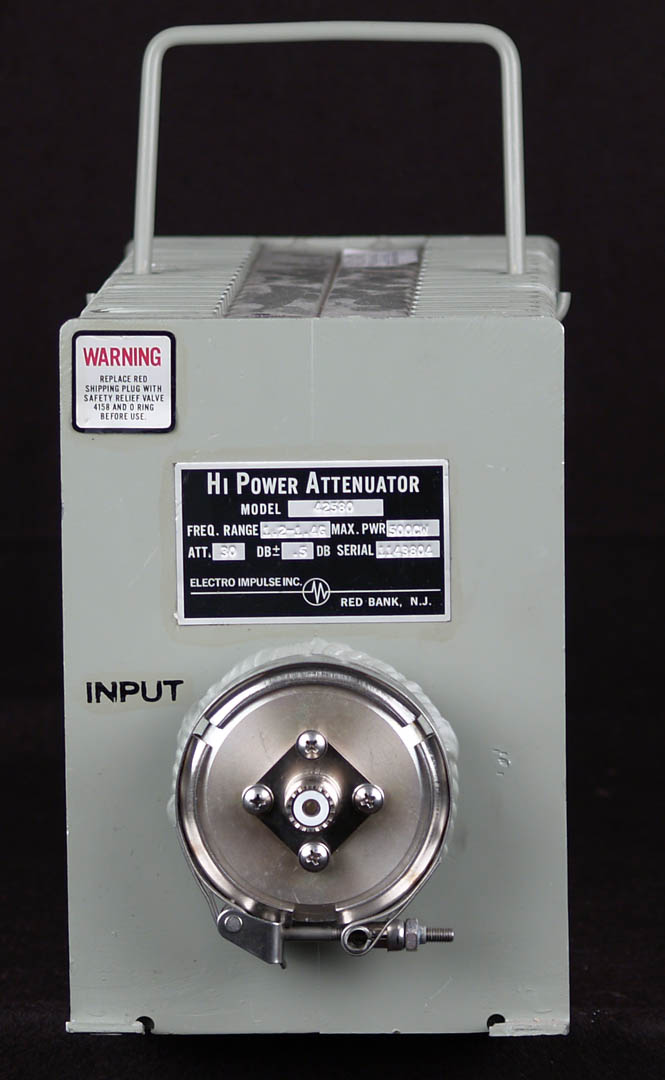

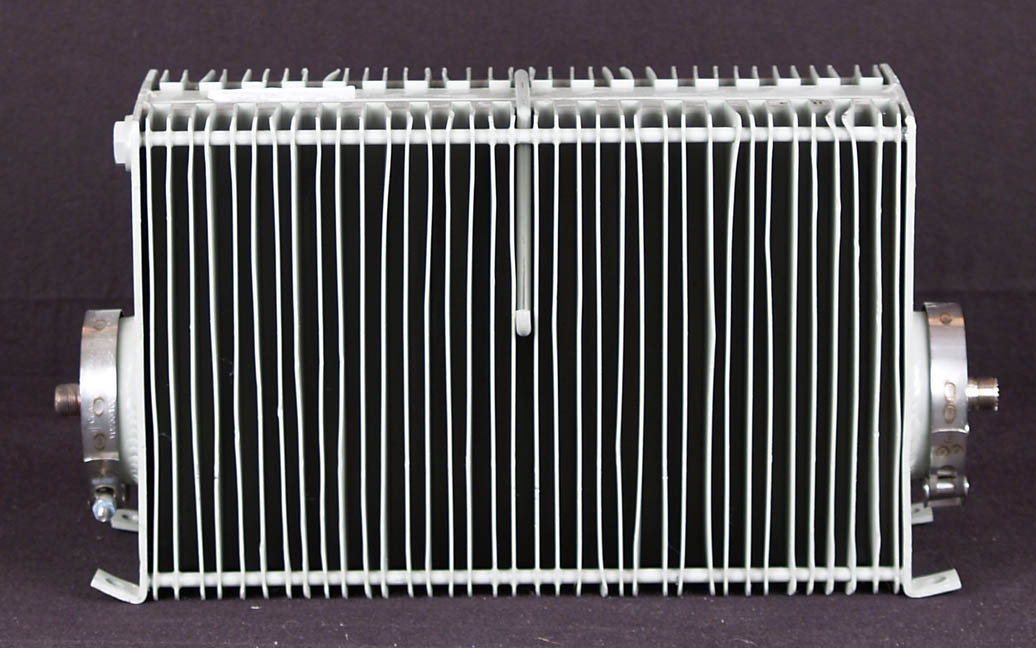

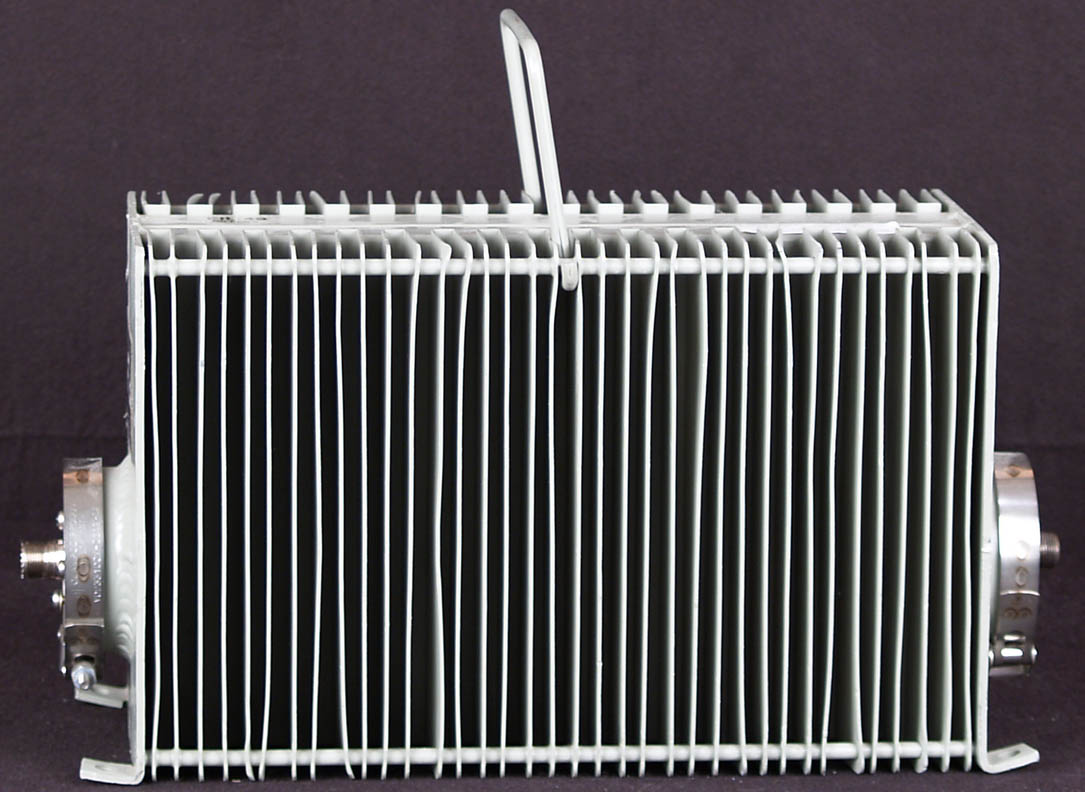

Electro Impulse

42580

Attenuator - 30dB 500Watt

UHF-female (SO239) input        and N-female output

Tested at 150MHz 500 forward watts 2.5 reflected.  14MHz 500 forward less then 2 reflected  (less then first division on a 50H)

INPUT Uses QC connector, so it can be swapped them to fit your needs.

$300

TESTED AT 150MHZ

500 WATTS FORWARD

2 WATTS REFLECTED

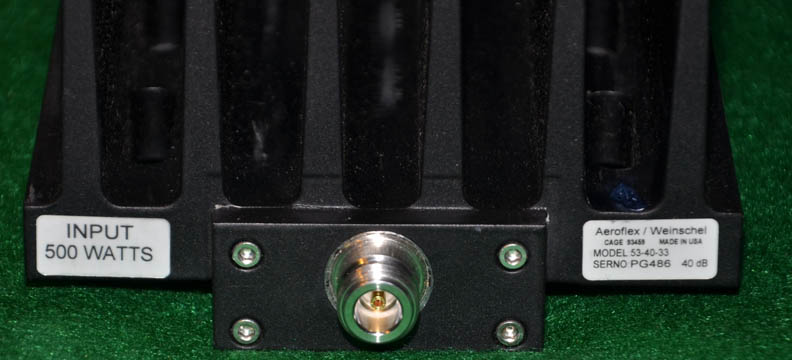

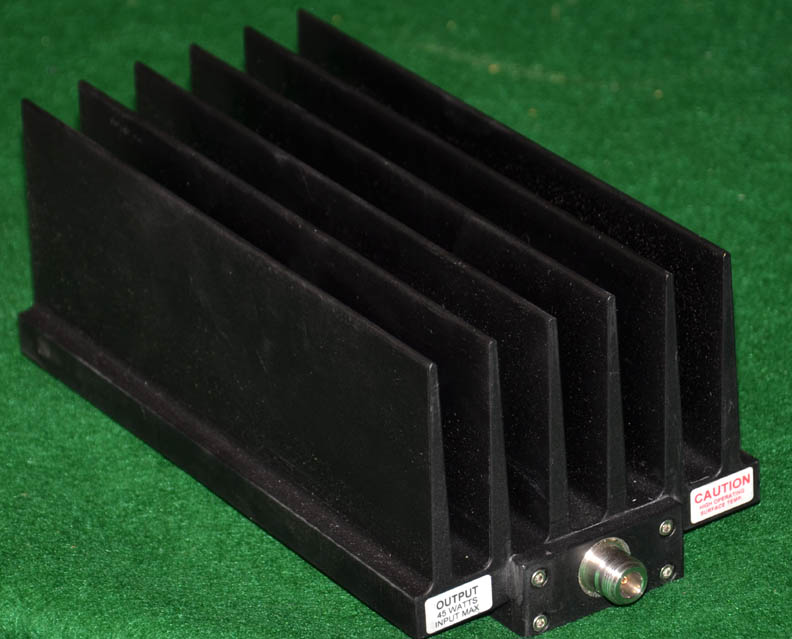

AEROFLEX /

WEINSCHEL

53-40-33

500 WATT

-40DB ATTENUATOR

SOLD

SERIAL #

PG486

$350

N-female

VERY DUSTY

REMOVED FROM A SPARES SHELF

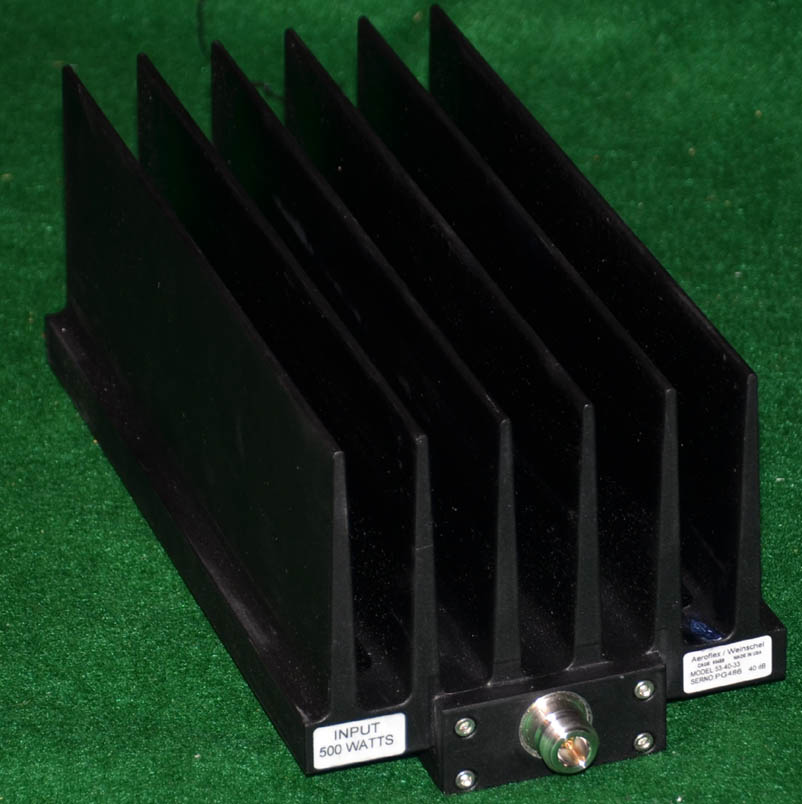

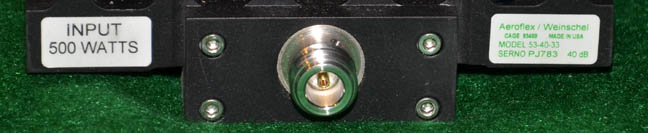

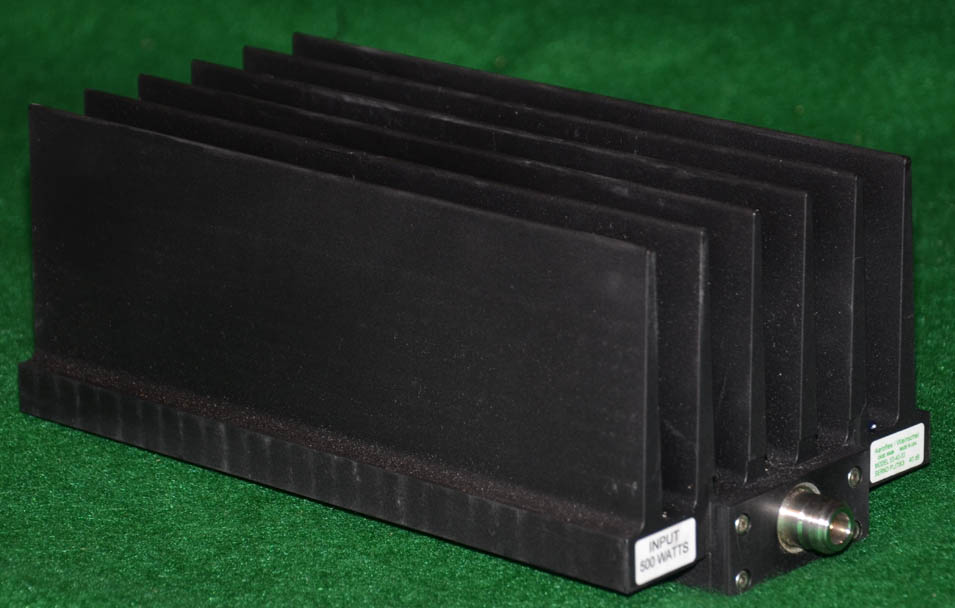

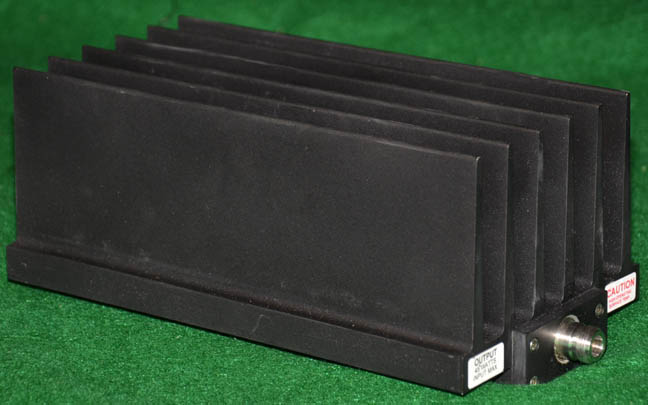

AEROFLEX /

WEINSCHEL

53-40-33

500 WATT

-40DB ATTENUATOR

SERIAL #

PJ783

$350

VERY DUSTY

REMOVED FROM A SPARES SHELF

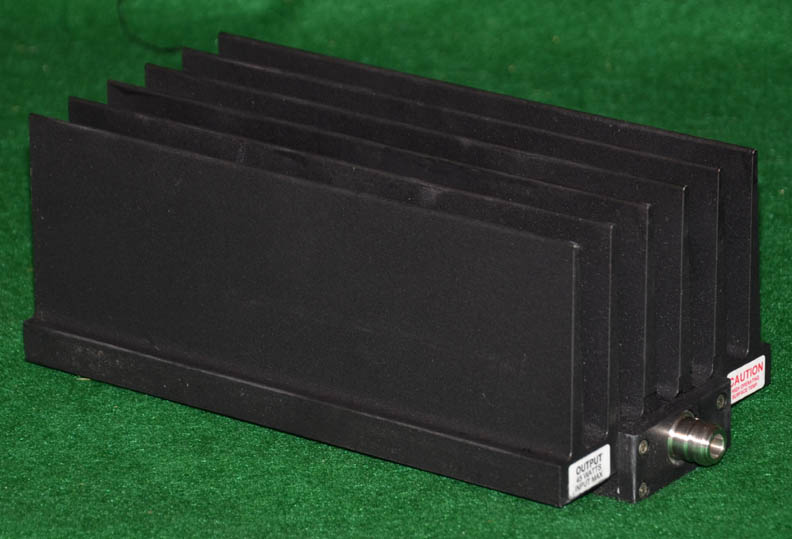

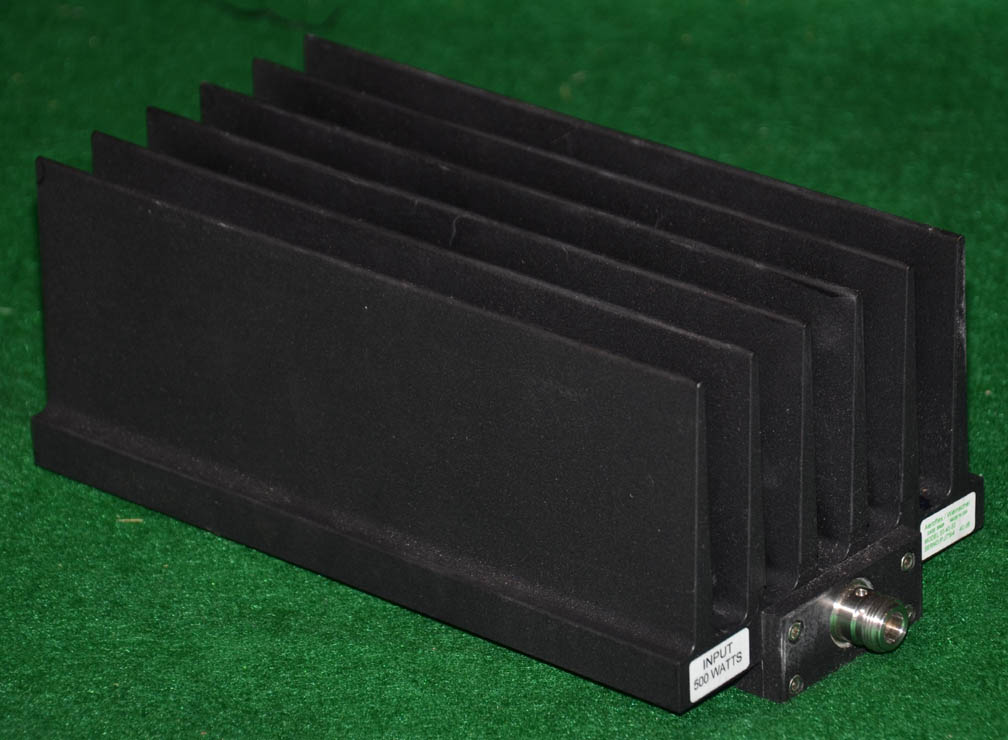

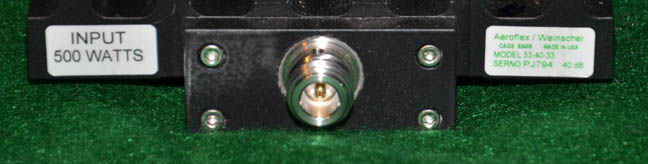

AEROFLEX /

WEINSCHEL

53-40-33

500 WATT

-40DB ATTENUATOR

SERIAL #

PJ794

$350

VERY DUSTY

REMOVED FROM A SPARES SHELF

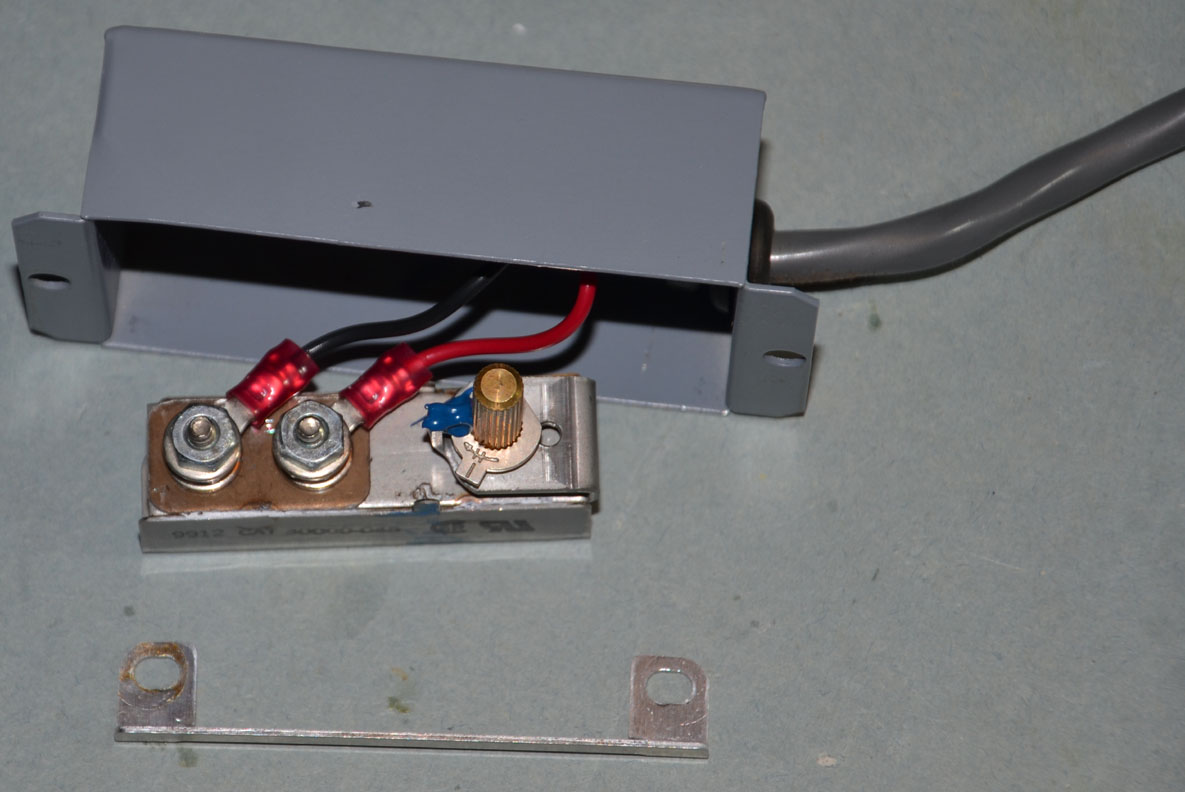

SENSOR-230 Temperature sensor that mounts to the front of any of the large BIRD loads/attenuators below

Opens the key / mic when the attenuator or termination gets to unsafe temp

$65 includes cover and mounting bracket shown
SOLD

Bird

8325

Serial #1747



Attenuator - 30dB 500Watt CCS Continuous Commercial Service

UHF-female (SO239) input        and N-female output

Tested at 150MHz 500 forward watts / less then 3 watts reflected.  14MHz 500 forward less then 2 reflected  (less then first division on a 50H)

INPUT and OUTPUT both use QC connectors, so they can be swapped them to fit your needs.

SOLD

$525


SOLD

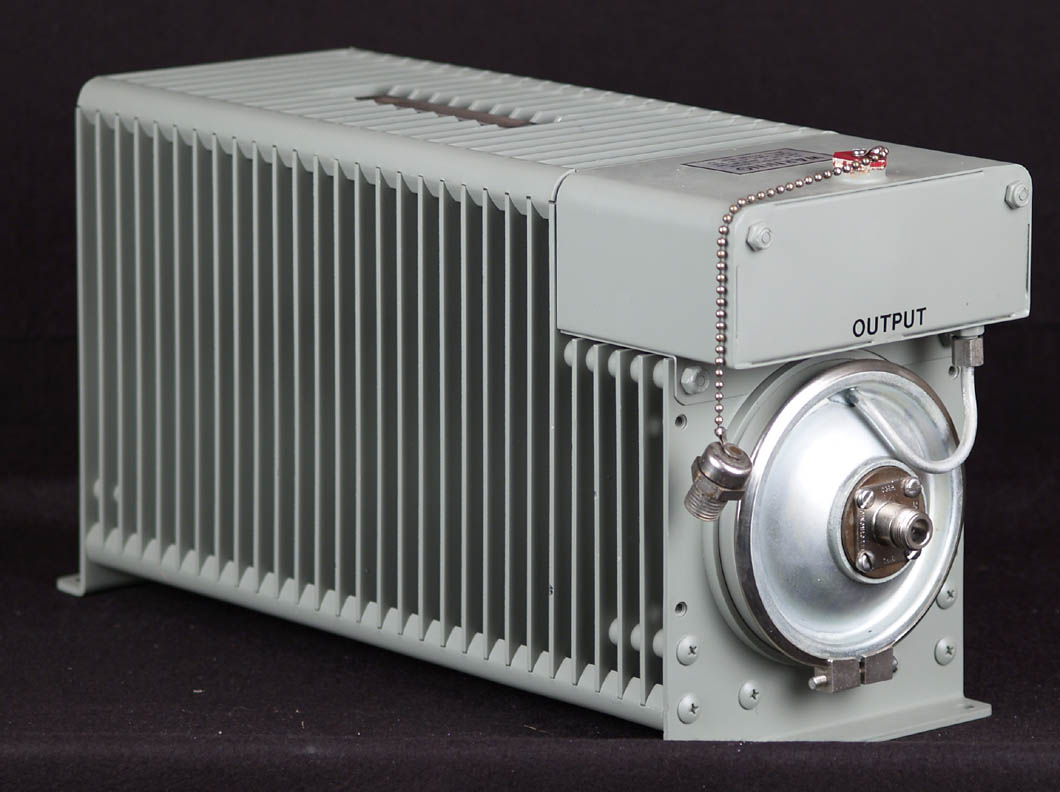

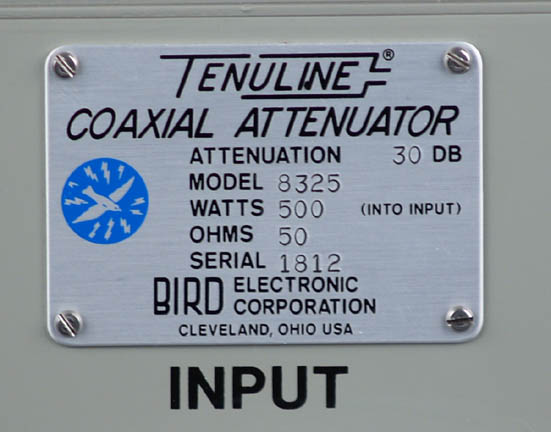

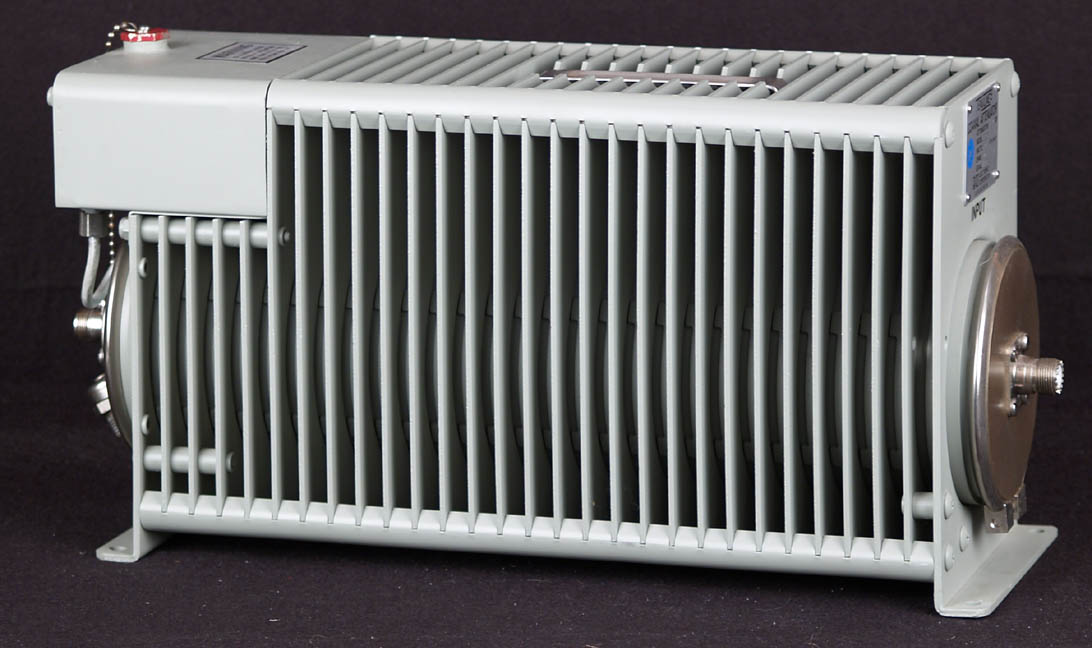

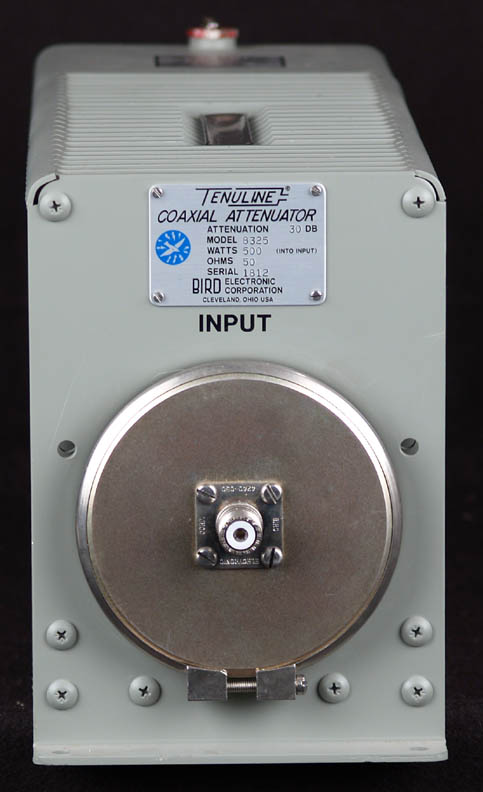

Bird

8325

Serial #1812



Attenuator - 30dB 500Watt CCS Continuous Commercial Service

UHF-female (SO239) input        and N-female output

Tested at 150MHz 500 forward watts / less then 3 watts reflected.  14MHz 500 forward less then 2 reflected  (less then first division on a 50H)

INPUT and OUTPUT both use QC connectors, so they can be swapped them to fit your needs.

SOLD

$595

includes both the red shipping plug and vent plug

Compare to NEW List price of $1342

8325

Serial #4988



Attenuator - 30dB 500Watt CCS Continuous Commercial Service

UHF-female (SO239) input        and N-female output

Tested at 150MHz 500 forward watts / less then 3 watts reflected.  14MHz 500 forward less then 2 reflected  (less then first division on a 50H)

INPUT and OUTPUT both use QC connectors, so they can be swapped them to fit your needs.

SOLD


$675



includes both the red shipping plug and vent plug



Compare to NEW List price of $1342

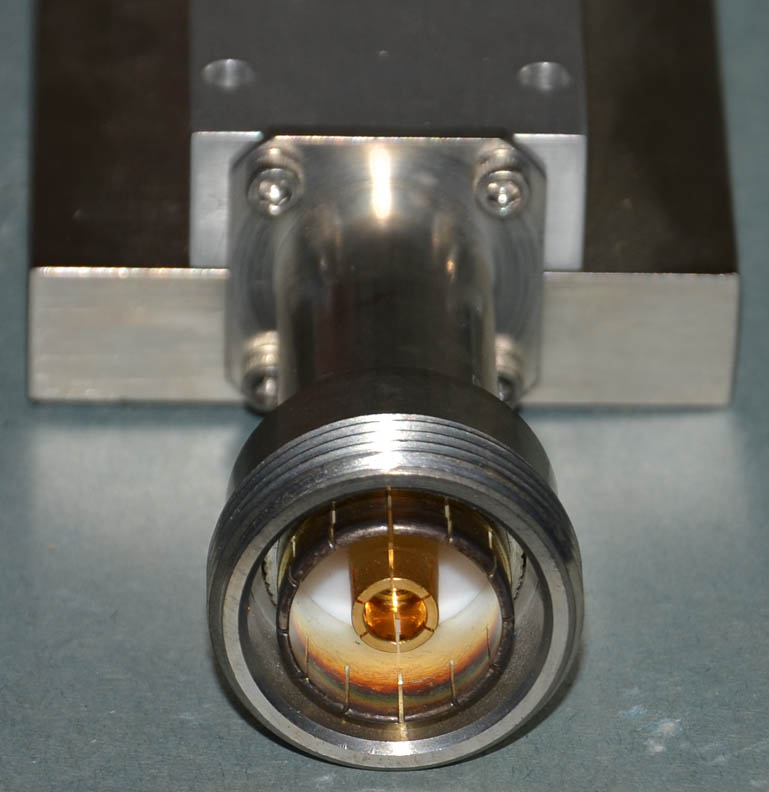

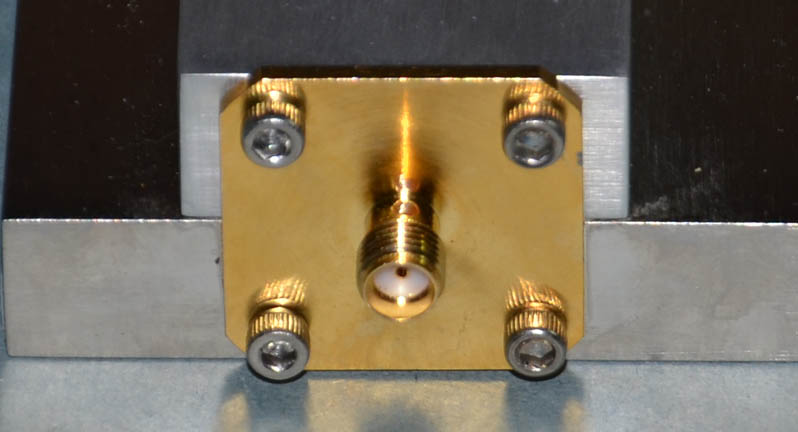

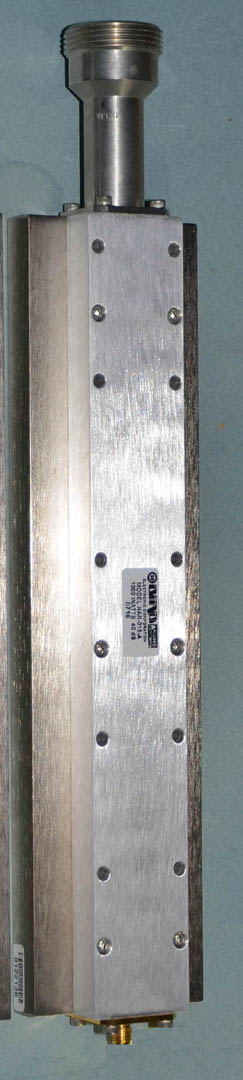

NEW

40dB

ATTENUATORS



MADE BY BIRD FOR HARRIS

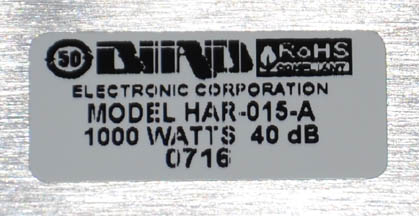

HAR-015-A



UN-MOUNTED ATTENUATOR

REQUIRES PROPER MOUNTING TO A LARGE AREA HEAT SINK



7/16 DIN INPUT

SMA OUTPUT



TESTED ON 1296MHz

$350



YOU SAVE ON SHIPPING COSTS BY SUPPLYING YOU OWN HEAT SINK.



SHIPPING WEIGHT ONLY  4 Pounds



STARTED WITH 27

5 LEFT

most common question is

 "why the long connector"

The connector length is required so the attenuator can be properly mounted to a heat sink.

Meaning the heat sink should extend past the mounting block assembly by 1.25 inches for proper heat dissipation.

/\ /\ /\

Birds normal heat sink size for this item is about 19 X 11 X 4.5 inches



V V V



$20

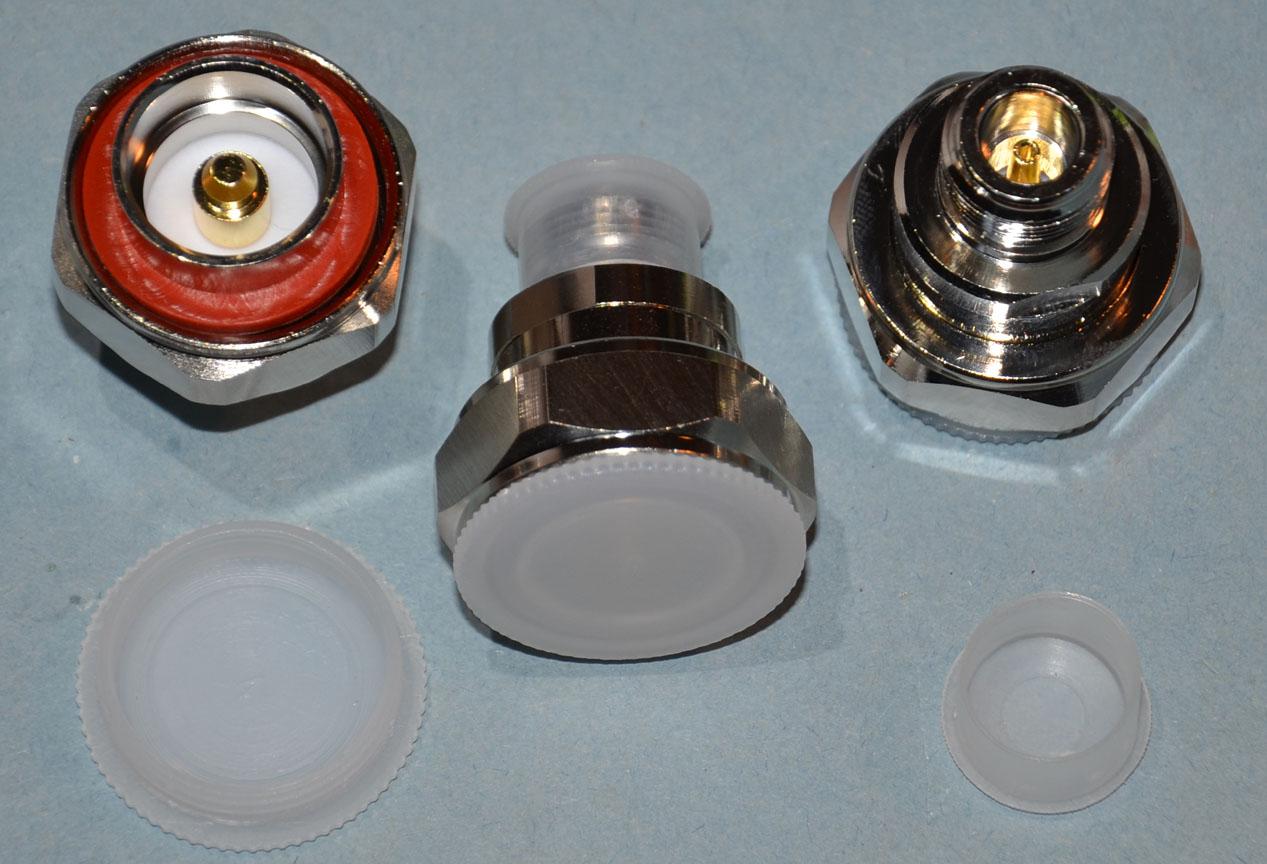

NEW ADAPTER

7/16 MALE TO N-FEMALE



NEW

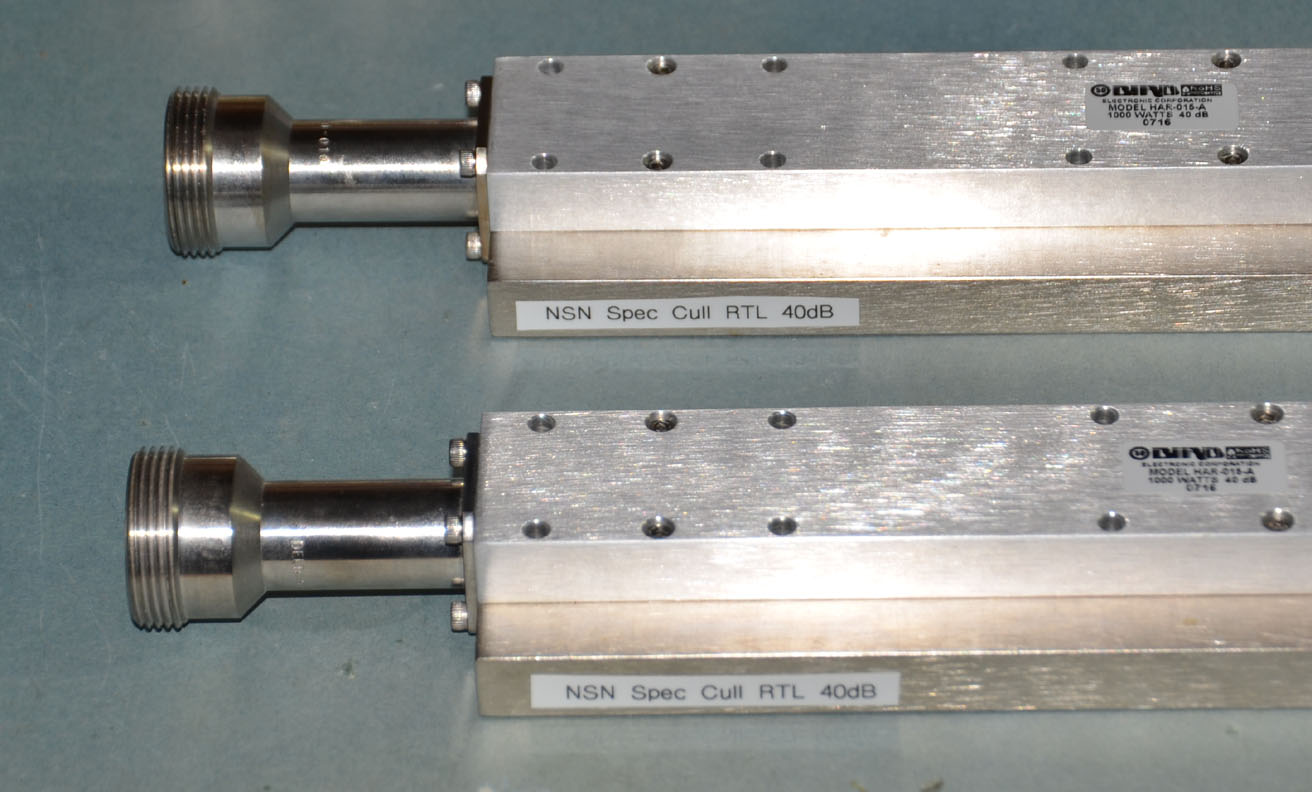

SPECIAL CULLED LOW RETURN LOSS ATTENUATORS

THESE WERE TESTED AND SEPARATED FROM THE ABOVE ITEMS BY THE FACTORY

MARKED RTL > 40dB

UNSURE AT WHAT FREQUENCY THE RETURN LOSS WAS TESTED FOR THIS CULLING

I TEST AT 1296 AND THE SWR IS VERY LOW ABOUT 1.02 - 1.03 : 1

WHICH IS ABOUT 36dB RTL

ONLY 2

$450

same as above with cull tag



TESTED AT 1296MHz
AEROFLEX Weinschel

SOLD

82-40-33

ATTENUATOR

1000 Watts 40dB

1,000 watts average
upto 25°C ambient.

10 kilowatt peak

DC-1.5GHz 1.15:1  SWR

1.5-3GHZ 1.25:1  SWR

SOLD

$650



N-females INPUT and OUTPUT

Camera flash shows every small paint nick

Looks better in person

Still has all 4 legs and feet

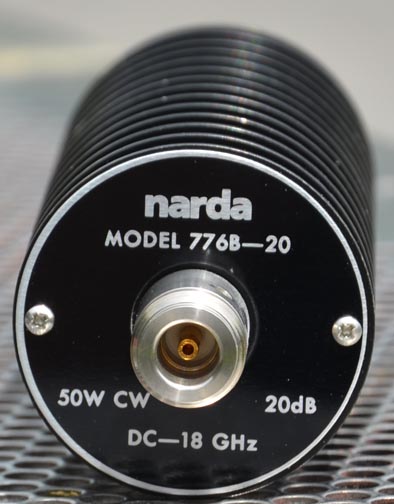

Attenuators

by Narda, MiniCircuits, Pasternack

N-Male  TO  N-Female

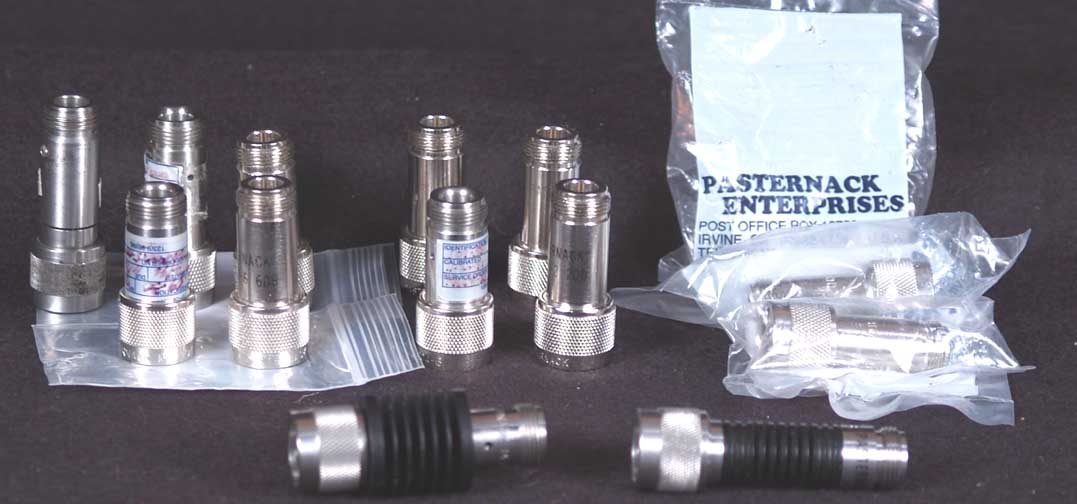

Pasternack attenuators

N-Male  /  N-Female

Mini Circuits    SAT-6, SAT-7   $3 EACH

SMA Male -

SMA-Female

Attenuators

Priced as marked

 below the photo



DC-2GHz  1 WATT  $10 each

 7002-1, 7002-2, 7002-6,

7002-20



DC-18GHz 2 WATTS $35 EACH

 7004-2, 7004-3, 7004-6,

7004-10, 7004-20

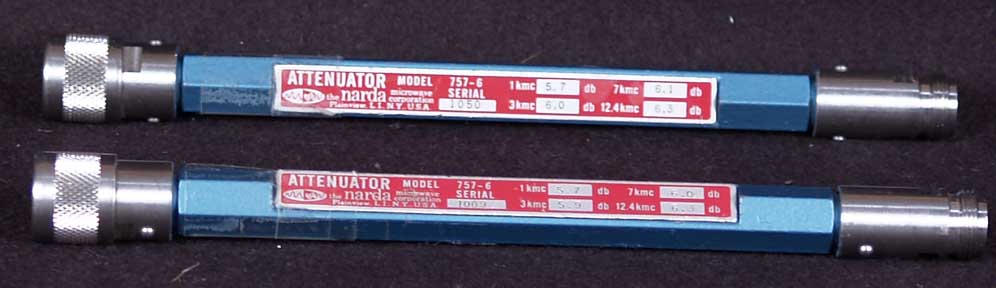

 ^  Narda  ^

757-6

6dB

DC-12.4GHz Attenuator

$25 each

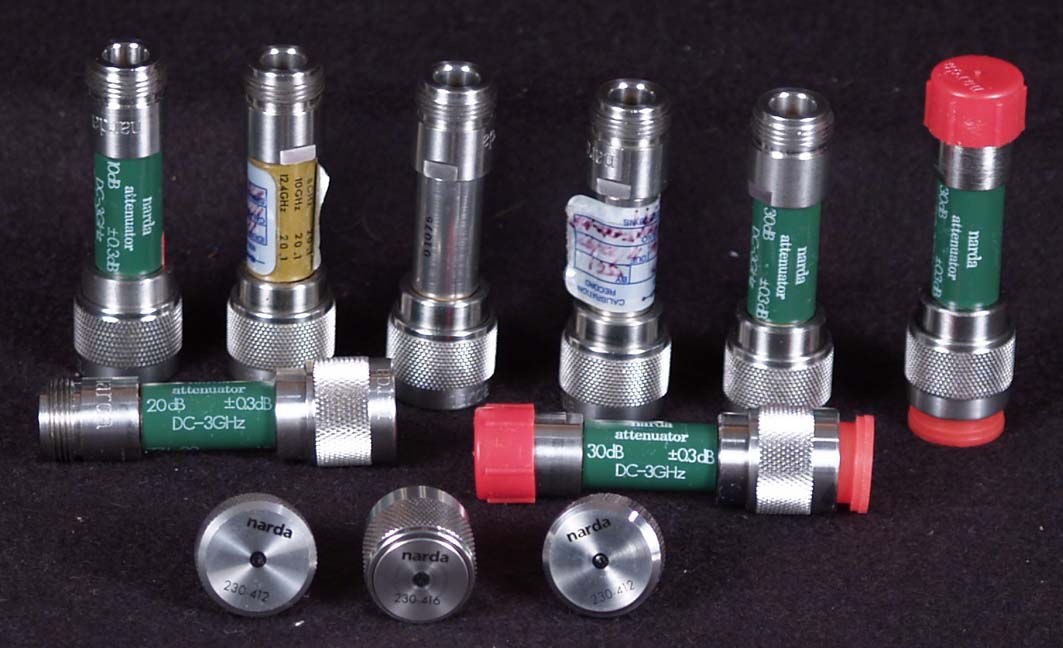

Narda  attenuators      N-Male / Female

Shorting plugs $3 each

DC-18HGz 2Watts 757C-3  $35   3dB

777C-6

6dB 2 WATTS

DC-12.4GHz

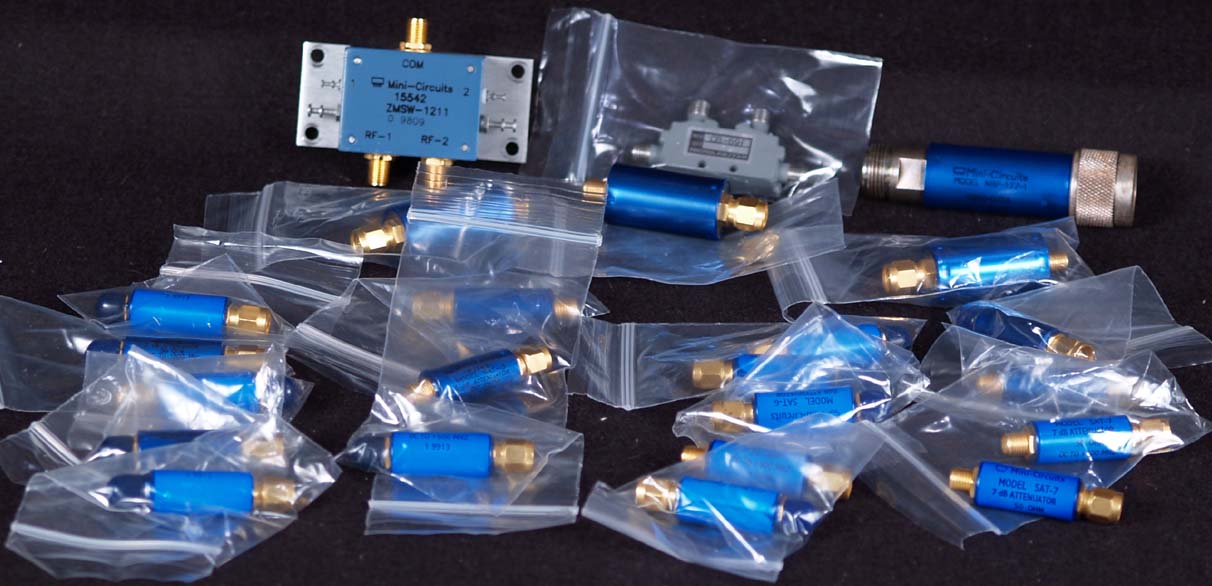

 Mini Circuits SHP-200, NBP177-1   $4/EACH

ZMSW-1211 $6

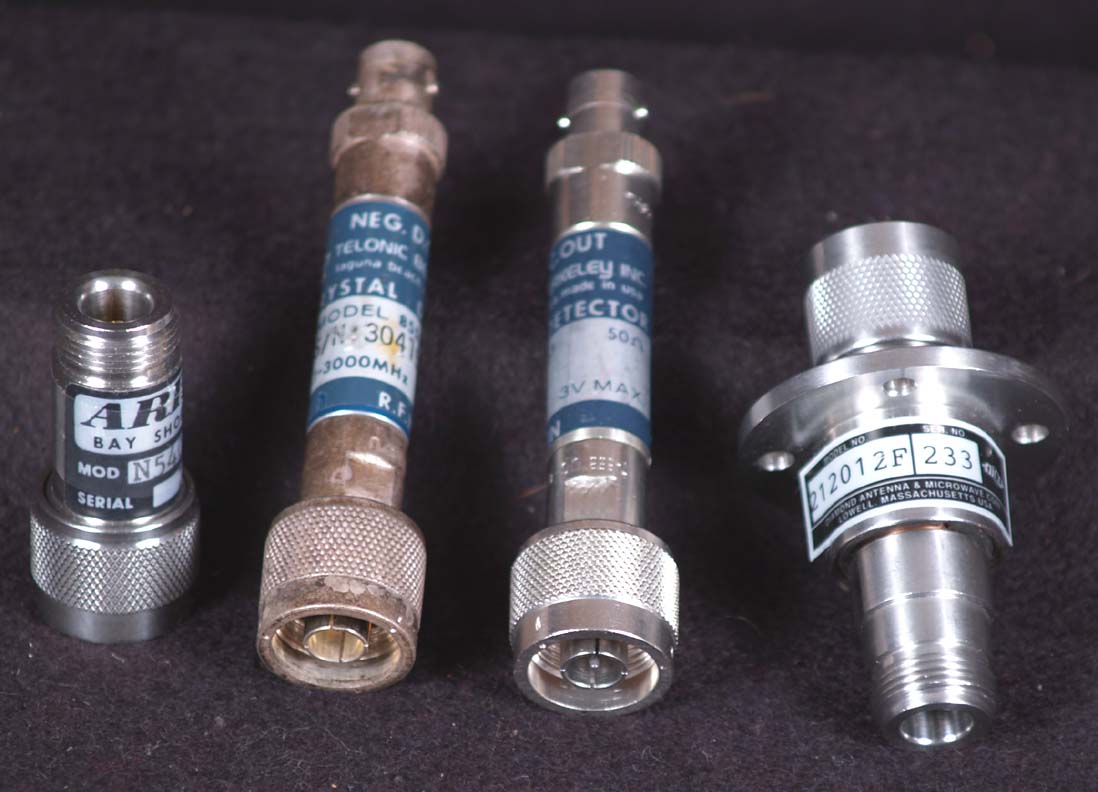

  Crystal Detectors are sold - no idea what the others are??

Make an offer.

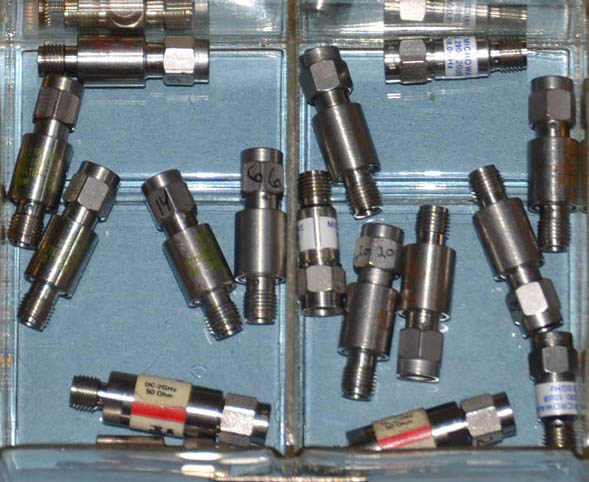

SMA

MALE TO FEMALE

$10 EACH UNLESS MAKRED

MIDWEST MICROWAVE DC-18GHZ

1 - 10dB

1 - 20dB

1- 30dB

TEKTRONIX   DC-18GHZ

3 - 6dB

3 - 14dB

5 - 20dB

$5 EACH

PASTERNACK

2 - 2dB

DC-2GHZ




BNC ATTENUATORS, TERMINATIONS AND FEED THRU TERMINATIONS.



ALSO ON LOAD AND ATTENUATOR PAGES

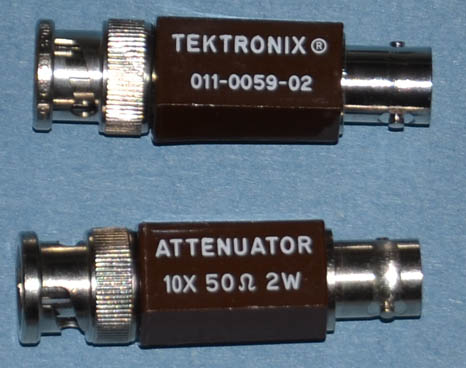

TEKTRONIX

011-0059-02

2 WATT 10X (10DB)

$10



POMONA

4119050

$10

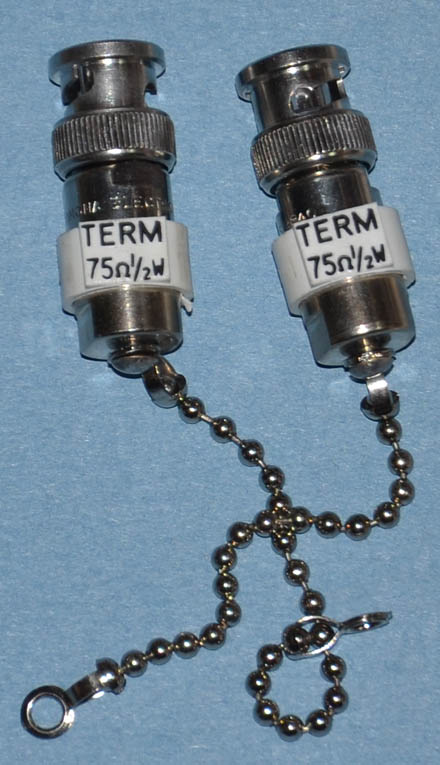

75 OHM     1/2 WATT TERMINATION

$10

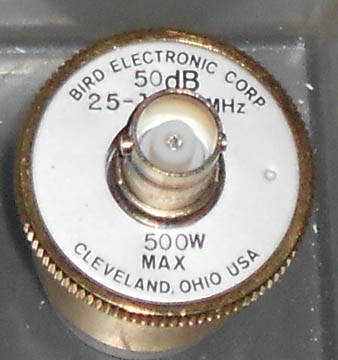

4274-025 25-1000MHz sampling element.

use a standard 43 type meter

to allow a fixed -50dB sample output on the BNC connector

500 WATTS MAX

4274-05-29-11

SOLD

$75

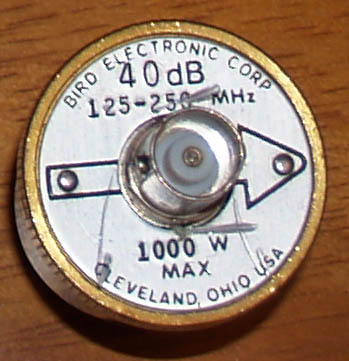

400-125 125-250MHz sampling element.

use a standard 43 type meter

to allow a fixed -40dB sample output on the BNC connector

1000 WATTS MAX

400-125-01-28-07

SOLD

$60


400-125 125-250MHz sampling element.

use a standard 43 type meter

to allow a fixed -40dB sample output on the BNC connector

1000 WATTS MAX

40dB125M-09-03-04

SOLD

$50

BNC IS BENT  WORKS 100%

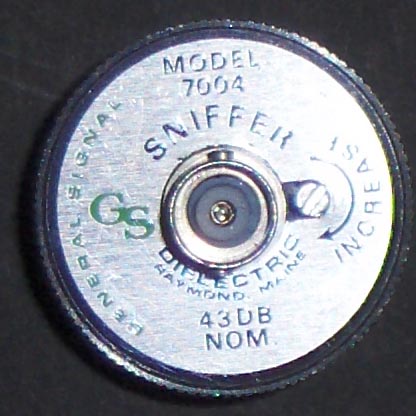

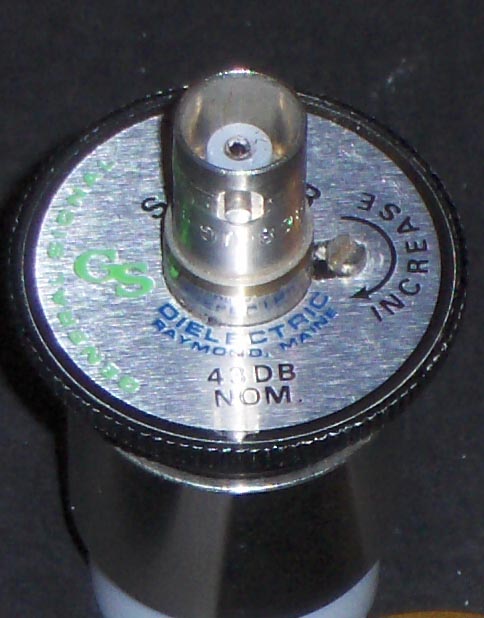

GS 7004

ADJUSTABLE

"SNIFFER"

43dB Nominal

ADJUSTABLE FROM ELEMENT TOP

HOLD

$55


Bird

Non-Directional Coupler

-30 dB

20-65MHz

1000 watts peak

4279A030

SOLD

$50

IN and out are QC connectors that can be changed to suit your needs.
NEW

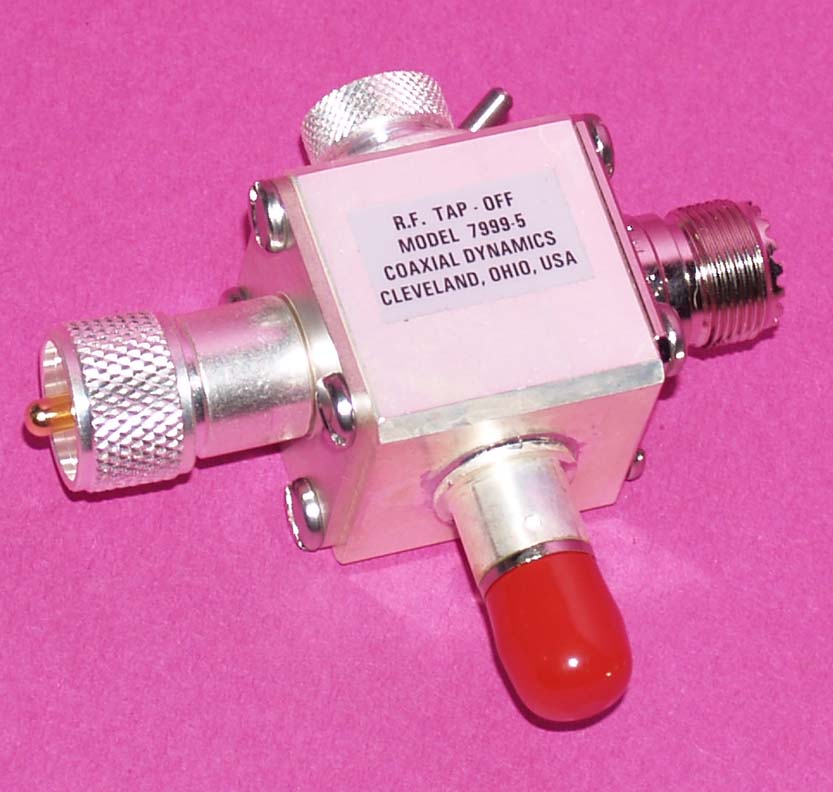

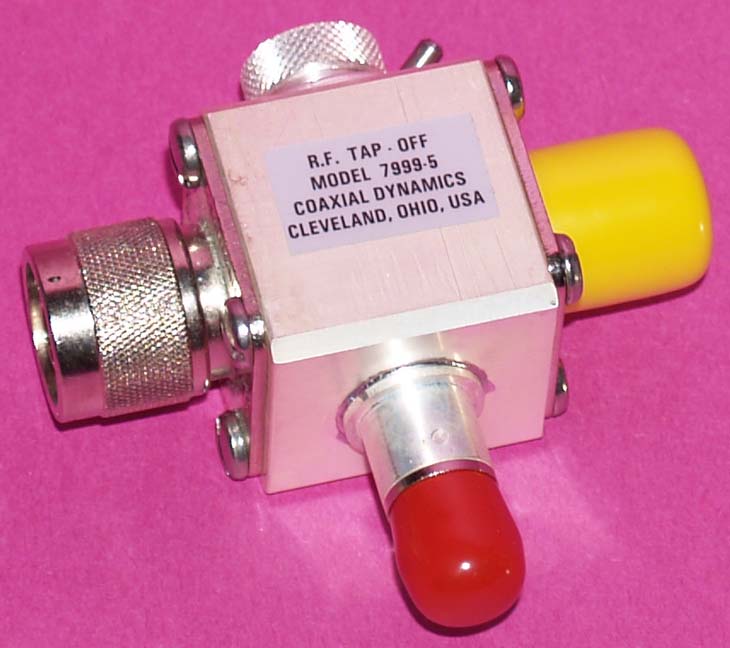

Coaxial Dynamics

7999 Samplers

1 left in stock

Variable sampler

Equivalent to the Bird  4273

5000 Watts (5KW)

1.5-35MHz

coupling 35-73dB

Connector Options:

$155 With   UHF-females (SO239s)

OR

     $175 With    1 UHF-Female (SO239) + 1 UHF-Male (PL259)

Connector Options:

$150 With    N-females

OR

    $150 With    1 N-Male +

1 N-Female



Some silver tarnish WILL occur between the time the photo was taken and you get the part.
The samplers below marked  NOS .... I found a limited supply of these from a one time Bird authorized dealer.  They were in a drawer so the backs may have some marks on them. Once sold there are no more. If you look at the connector photos you can see they are unused. Each photo set is of only that sampler so you know exactly what you are buying

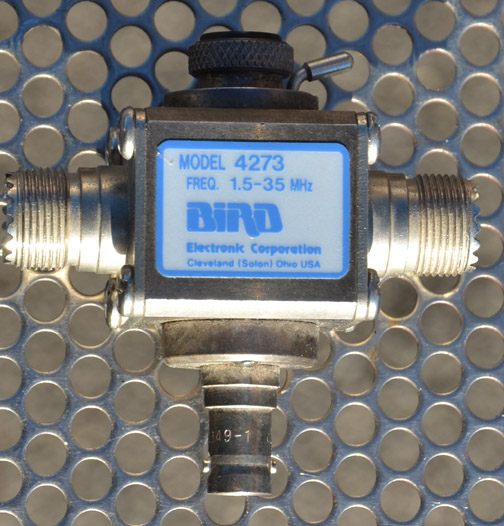

Bird 4273

1.5 - 35Mhz variable signal sampler

5KW

5000 WATTS



VERY HARD TO FIND HF VERSION OF THE BIRD SAMPLER.

The samplers listed below are mostly heavy silver plate.

>>>>>>

Some silver tarnish WILL occur between the time the photo was taken and you get the part.







Bird 4273

1.5 - 35Mhz variable signal sampler

5KW

5000 WATTS

VERY HARD TO FIND HF VERSION OF THE BIRD SAMPLER.

NOS

$190

SOLD

4273 #Z

UHF MALE - UHF FEMALE

PL259 - SO239

UHF In / Out

UHF-Male (PL259)

UHF-Female (SO239)

BNC sample output

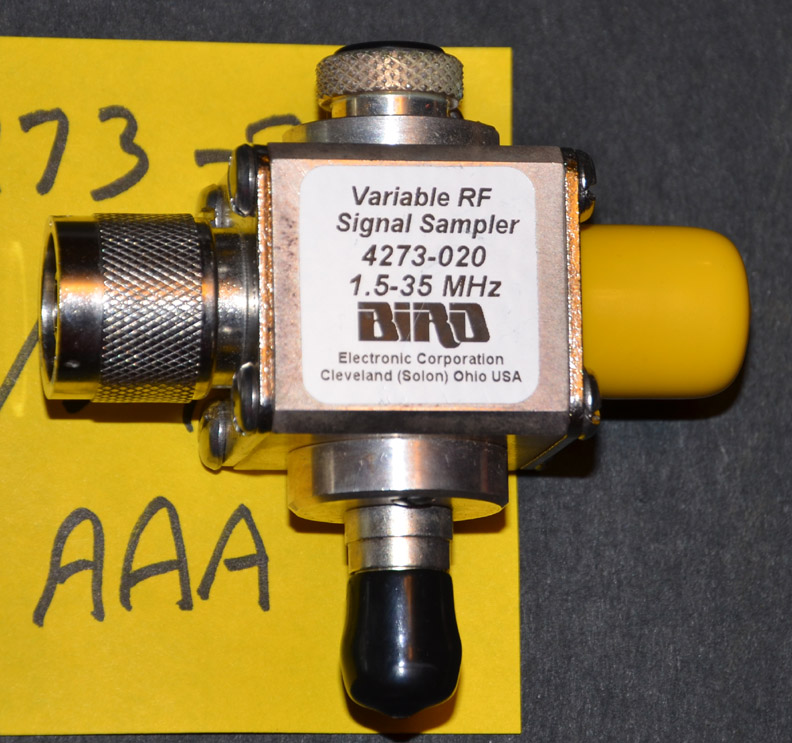

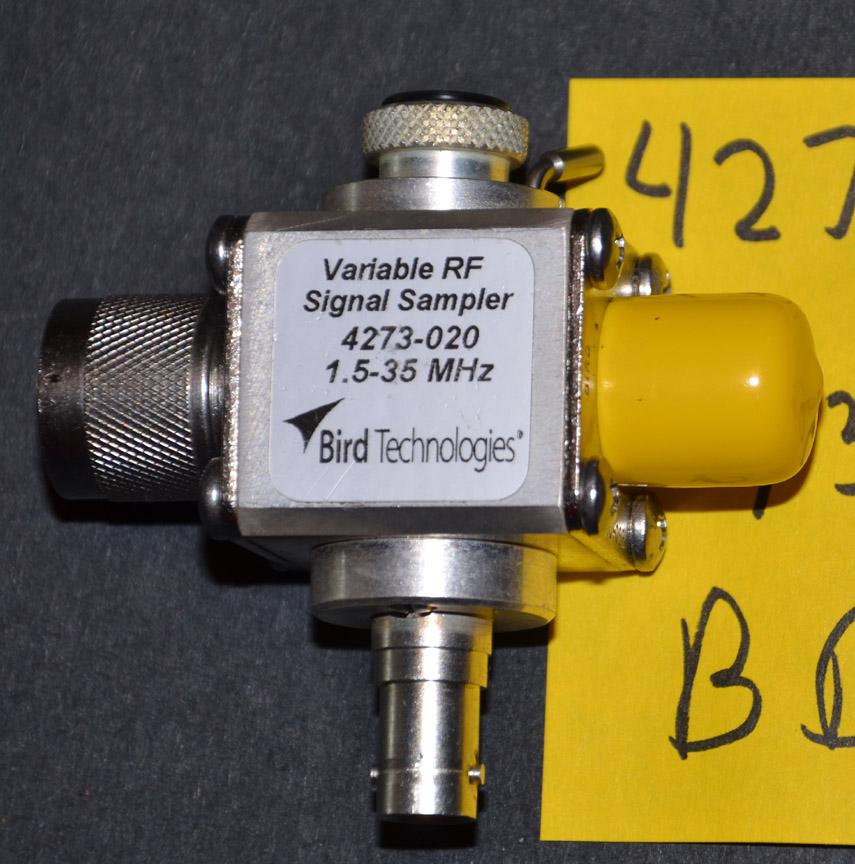

Bird 4273-020

1.5 - 35Mhz variable signal sampler

5KW

5000 WATTS

SOLD

VERY HARD TO FIND HF VERSION OF THE BIRD SAMPLER.

$110 - 4273 #6

Note BNC is not perfect

N In / Out

 N-Male

N-Female

BNC sample output

Note BNC is not perfect

Bird 4273-020

1.5 - 35Mhz variable signal sampler

5KW

5000 WATTS

SOLD

VERY HARD TO FIND HF VERSION OF THE BIRD SAMPLER.

$150 - 4273 #8



Bird 4273-020

1.5 - 35Mhz variable signal sampler

5KW

5000 WATT

VERY HARD TO FIND HF VERSION OF THE BIRD SAMPLER.

$170

4273 #T

Priced with the UHF-male and UHF-female as shown



Bird 4273-020

1.5 - 35Mhz variable signal sampler

5KW

5000 WATTS

VERY HARD TO FIND HF VERSION OF THE BIRD SAMPLER.

SOLD

#12

$130

Priced with the N-male and N-female as shown

BNC is a little rough but connects fine.

N-f / N-f No charge



UHF-f / UHF-f Add $5



UHF-m / UHF-f Add $20

Bird 4273-020

1.5 - 35Mhz variable signal sampler

5KW

5000 WATTS

VERY HARD TO FIND HF VERSION OF THE BIRD SAMPLER.

4273-020



$130


Priced with the N-male and N-female as shown



N-f / N-f No charge



UHF-f / UHF-f Add $5



UHF-m / UHF-f Add $20



Bird 4273-020

1.5 - 35Mhz variable signal sampler

5KW

5000 WATTS

VERY HARD TO FIND HF VERSION OF THE BIRD SAMPLER.

4273-020

SOLD

#P

$130


Priced with the N-male and N-female as shown

N-f / N-f No charge



UHF-f / UHF-f Add $5



UHF-m / UHF-f Add $20

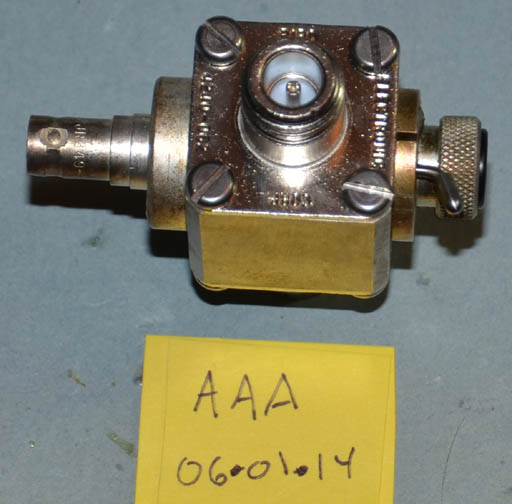

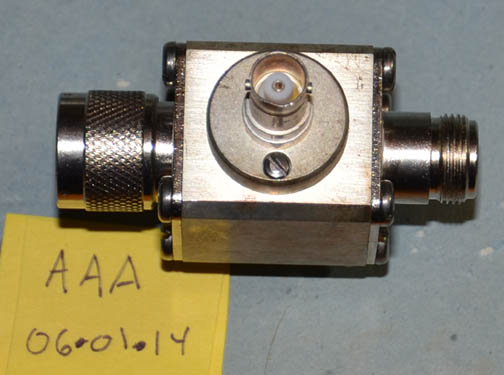

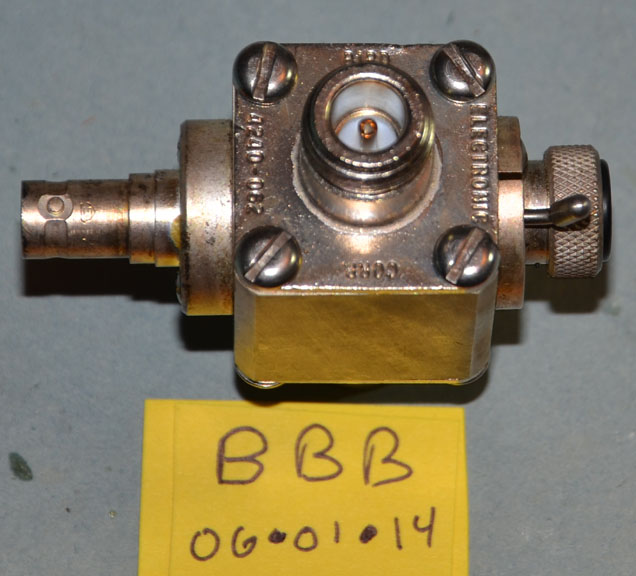

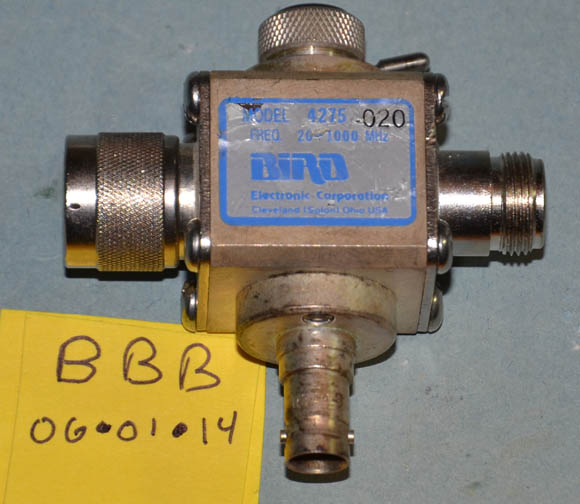

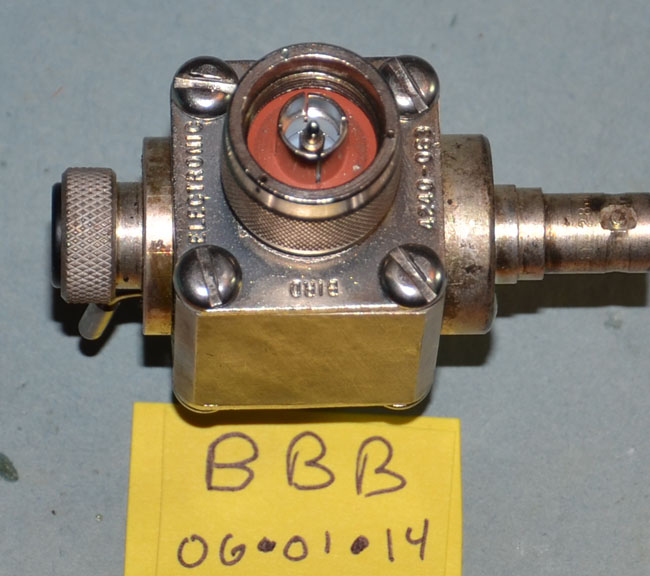

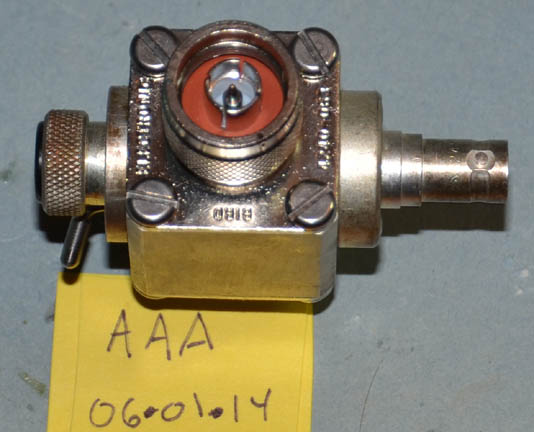

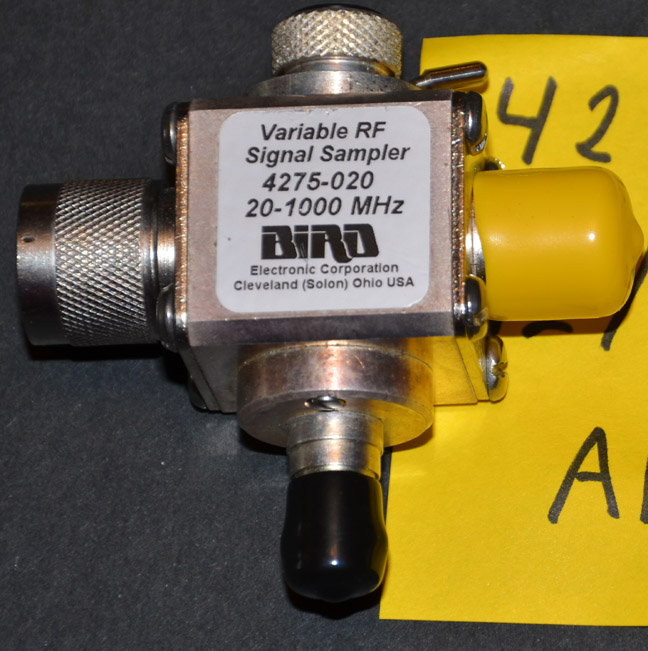

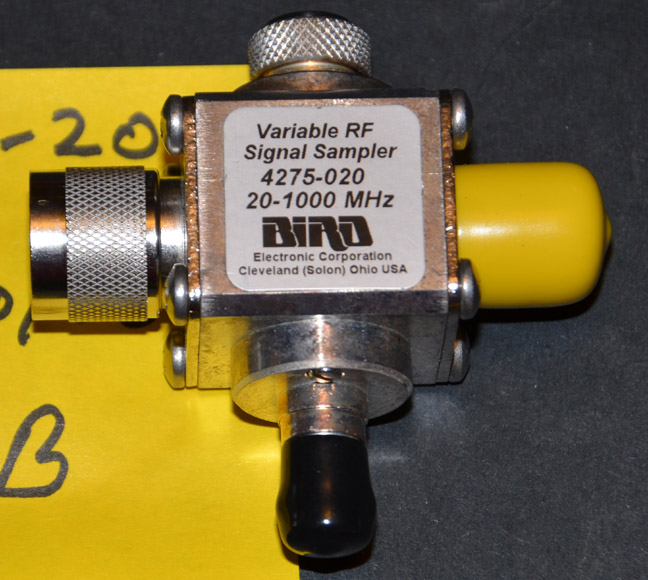

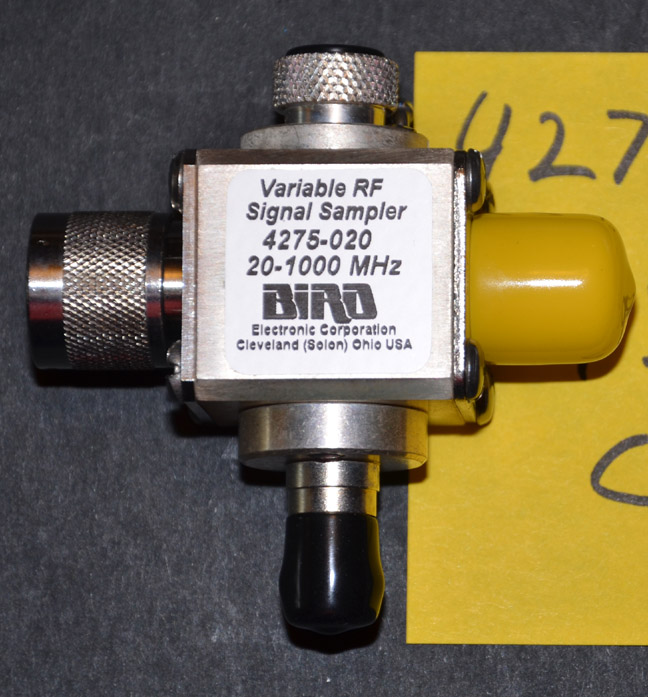

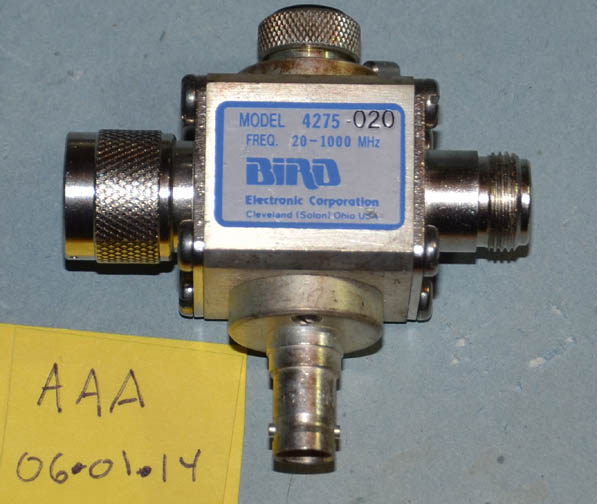

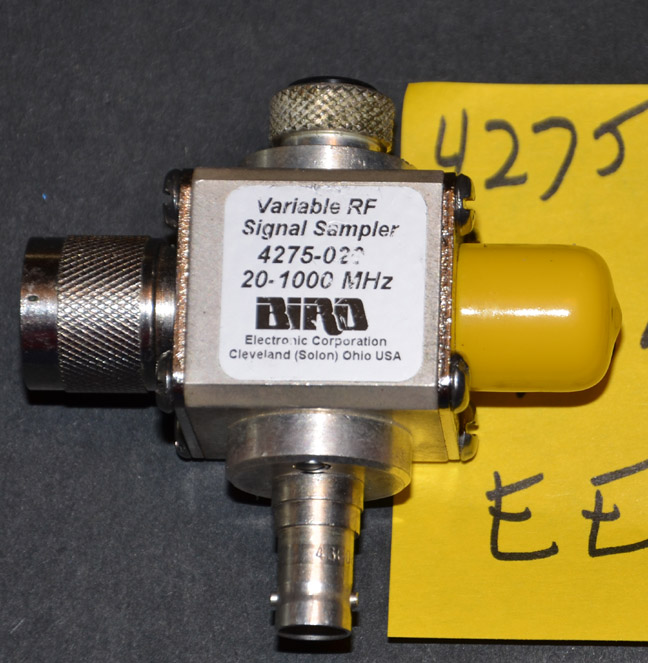

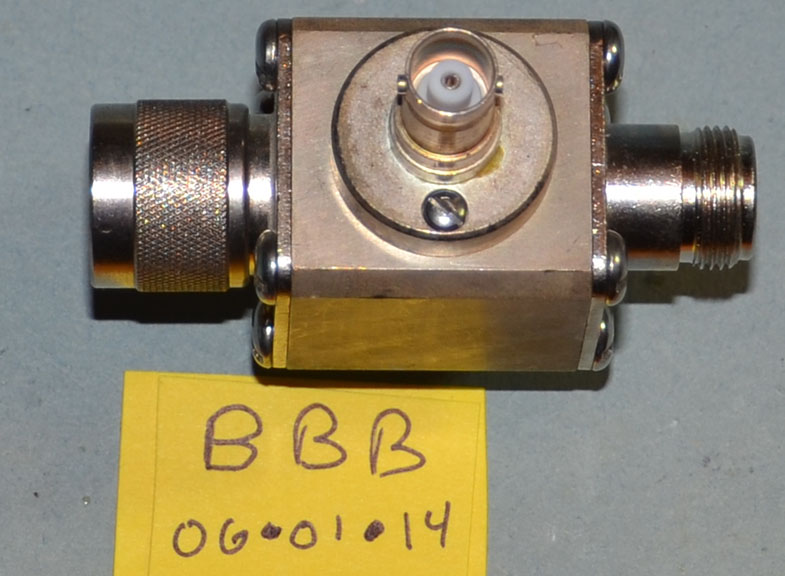

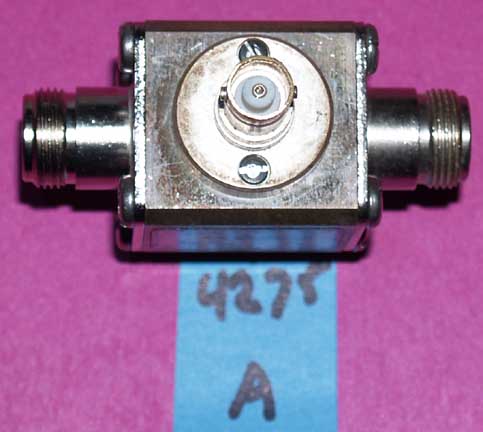

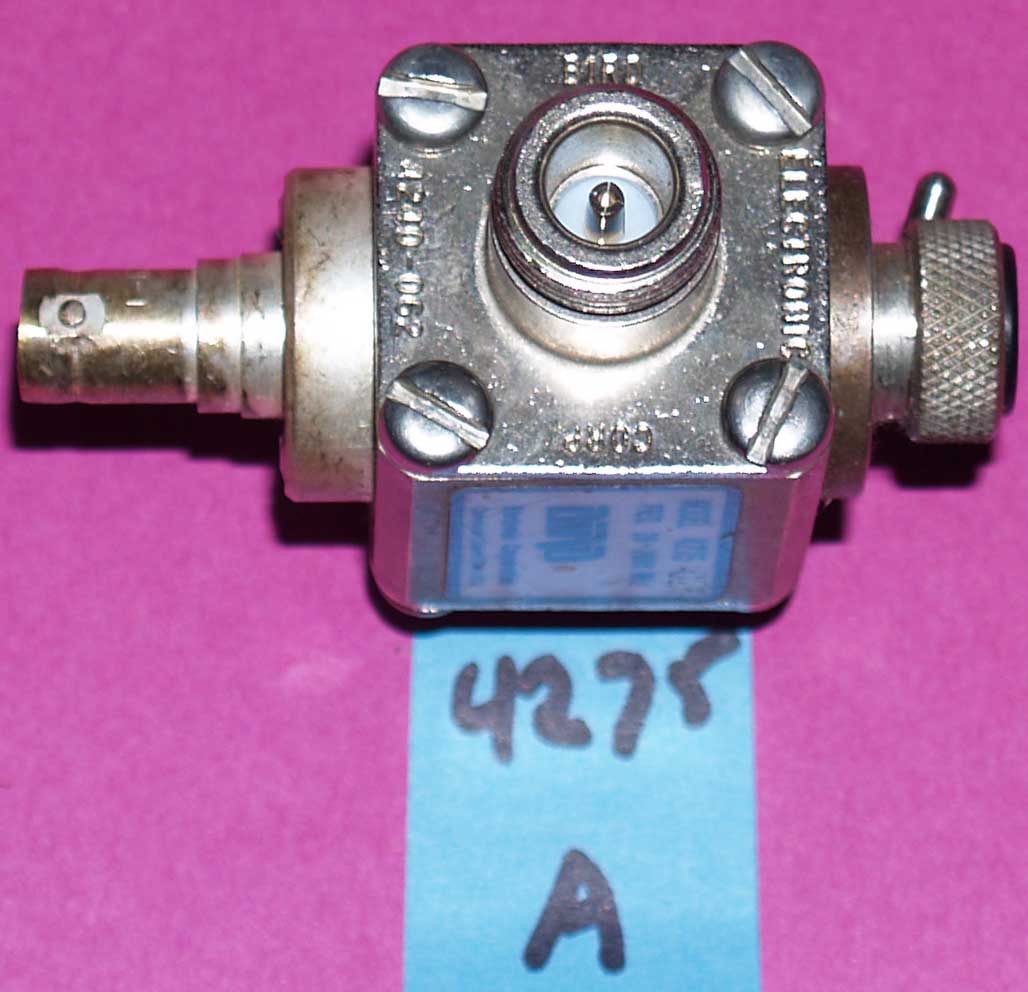

Bird 4275-020

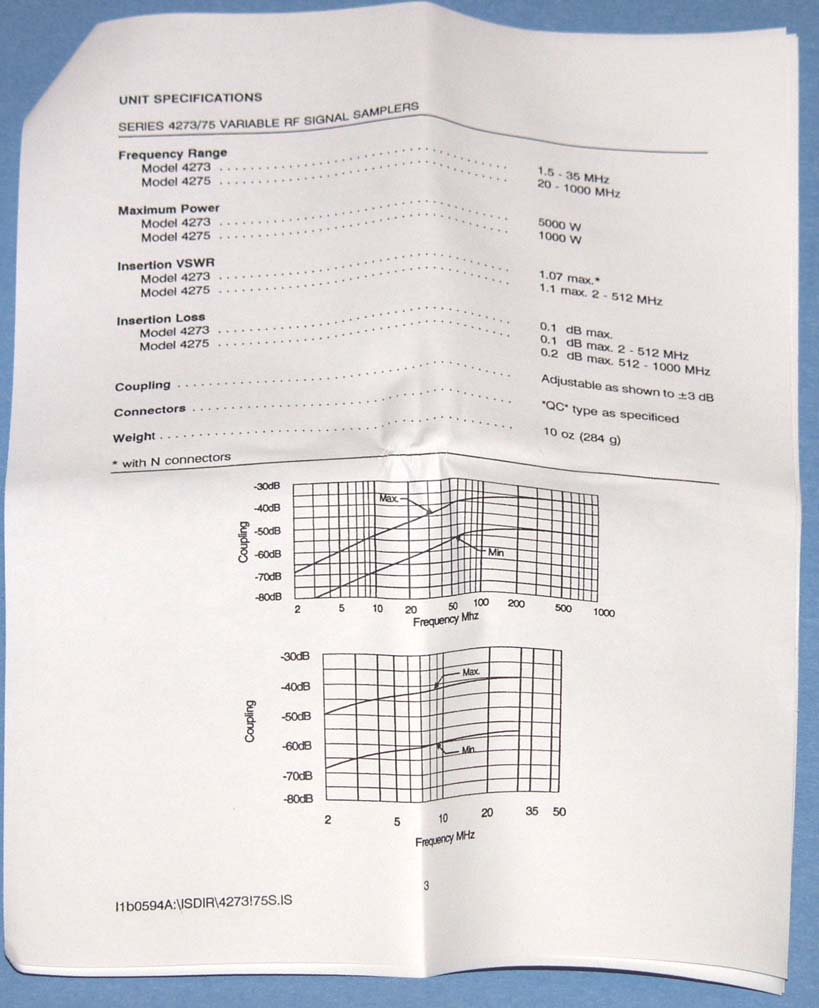

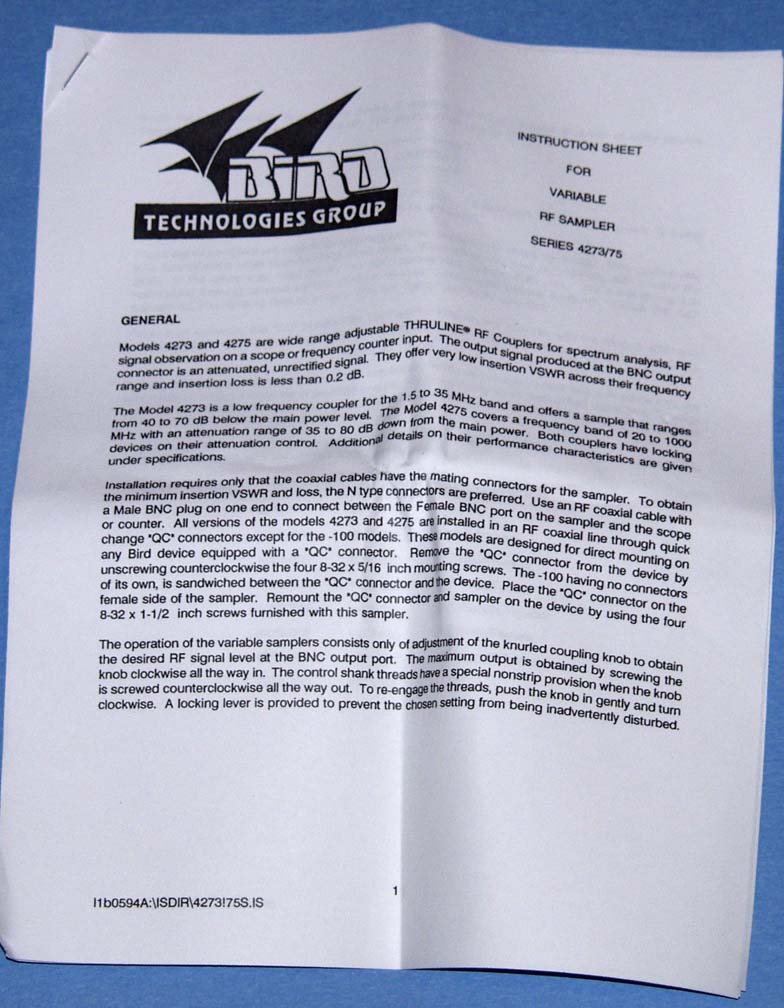

DATA SHOWS INSERTION LOSS   AND COUPLING

2-1000MHZ

1KW

RATED ON SPEC SHEET

20-1000MHZ

NEW OLD STOCK

SOLD OUT

STILL PLASTIC WRAPPED TO  BACKING AS SHIPPED BY TESCO.

SOLD

N-MALE

N-FEMALE

IN / OUT

note:

spec sheet rate these to 2 MHz

BIRD's current list cost for new is $358
Bird 4275-020

DATA SHOWS INSERTION LOSS   AND COUPLING

2-1000MHZ

1KW

RATED ON SPEC SHEET

20-1000MHZ

4275-CCC-07-05-09

N-MALE / N-FEMALE

SALE

$95

TOP

N-FEMALE

IN / OUT

N-MALE

IN /OUT

BNC SAMPLE PORT

Bird 4275-020

DATA SHOWS INSERTION LOSS   AND COUPLING

2-1000MHZ

1KW

RATED ON SPEC SHEET

20-1000MHZ



4275-020-AAA-06-01-14

N-MALE / N-FEMALE

SALE

$95



TOP



N-FEMALE

IN / OUT





N-MALE

IN /OUT





BNC SAMPLE PORT

Bird 4275-020

DATA SHOWS INSERTION LOSS   AND COUPLING

2-1000MHZ

1KW

RATED ON SPEC SHEET

20-1000MHZ



4275-020-BBB-06-01-14

N-MALE / N-FEMALE

SALE

$95



TOP



N-FEMALE

IN / OUT





N-MALE

IN /OUT





BNC SAMPLE PORT

Bird 4275

DATA SHOWS INSERTION LOSS   AND COUPLING

2-1000MHZ

1KW

RATED ON SPEC SHEET

20-1000MHZ

4275-UUU-07-05-09

UHF-FEMALE / UHF-FEMALE

SOLD

$100



TOP



UHF-FEMALE

IN / OUT





UHF-FEMALE

IN / OUT





BNC SAMPLE PORT

Bird 4275-030

DATA SHOWS INSERTION LOSS   AND COUPLING

2-1000MHZ

1KW

RATED ON SPEC SHEET

20-1000MHZ

4275-030-07-05-09

UHF-FEMALE / UHF-FEMALE

SALE

$100

TOP

UHF-FEMALE

IN / OUT



UHF-FEMALE

IN / OUT



BNC SAMPLE PORT

Bird 4275

DATA SHOWS INSERTION LOSS   AND COUPLING

2-1000MHZ

1KW

RATED ON SPEC SHEET

20-1000MHZ

4275-ZZZ-07-05-09

N-FEMALE / N-FEMALE

SALE

$95



TOP

N-FEMALE

IN / OUT



N-FEMALE

IN /OUT



BNC SAMPLE PORT

Bird 4275-100

2-1000Mhz variable signal sampler

This attaches directly to your bird 43 or similar meter.  You remove one of the QC connectors, put this in it's place, put the connector you just removed on the sampler, attach with the 4 included long screws = DONE $90

 Includes the mounting screws

Uses the QC you already have = nothing else to buy

Sample photo several in stock



shown sampler data, not included


NEW

Sampler

TEE-06-30-04

Variable thru line sampler section.  It is a true thru line with N-male and N-female connectors. The VARIABLE output is via a BNC connector that slides in and out to change the sampled output.

Model: HZ-A2250 ohms
• Frequency: 50MHz - 12GHz
• Insertion Loss: 0.2db Max
• Power Rating: 500W (AVG) 5KW (Peak)
• Connectors Main Line: “N” ( M ) + “N” ( F )
• Sample End Port: “BNC” ( F ) Adjustable RF Output!


NEW

$30.00

NEW

Silver

Includes protective caps shown

 30+ in stock



TEE-06-30-04

These are silver and some tarnishing may occur





Prices are determined with a formula involving prior selling prices, current stock, and cosmetic condition.

The letters in my item ID are for my reference to assure you get the correct item.   I often photograph several hundred element at a time. The only way to keep track of the element is with a unique item ID.  An item with AAA is not better or worse then an item with RRR, HHH, or ZZZ.  Nicer items of the same type are priced higher.

All elements are Guaranteed NOT DOA = Click for testing link

Stock changes quickly please verify the element is still in inventory before doing paypal.

 AuctionSniper.com - Easy eBay bid sniper solutions.  Tired of being outbid in the last few seconds on eBay, and not being fast enough to bid again??   This service bids for you to the amount you tell them when you tell them.   No fees unless you win then 1% of the win amount (not your bid amount).  95% of my eBay wins are with auction sniper, the rest are buy it nows.  I have been using it for 4 years with no problems.
Easy eBay bid sniper solutions.

Truly the Easiest way to ebay.   Join for free, and stop being outbid in the last few seconds..    For a limited time you get 3 free snipes (Uses) when you join.



BIRD® and Thruline® are registered trademarks of BIRD® Electronic Corporation, 30303 Aurora Rd.  Solon, OH 41139......http://www.birdrf.com/
