    All loads are tested at their full power up to 1000 watts at 14MHz. No other tests are done unless requested.

Click on thumbnails (small photos) for larger photos.

Description ID # Price Photos QTY in Stock INFO INFO
Sniffers / samplers have moved here:

RF SAMPLERS

Attenuators have moved here:

ATTENUATORS




BNC ATTENUATORS, TERMINATIONS AND FEED THRU TERMINATIONS.



ALSO ON LOAD AND ATTENUATOR PAGES

TEKTRONIX

011-0059-02

2 WATT 10X (10DB)

$20



POMONA

4119050

$10



75 OHM     1/2 WATT TERMINATION

$25




SOLD

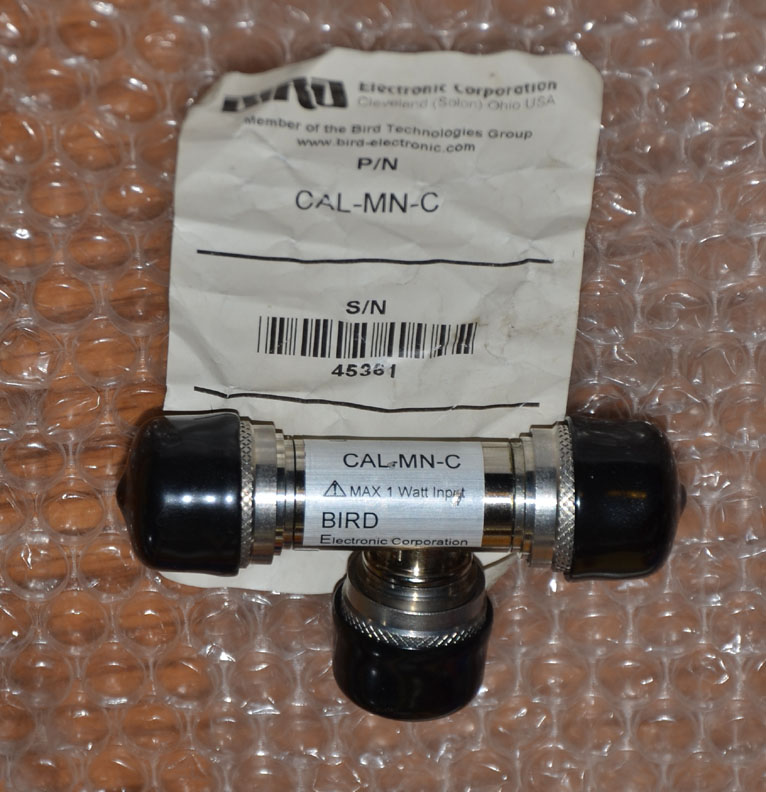

BIRD

CAL-MN-C

$350

BIRD CALIBRATION STANDARD

DC-6GHz

OPEN SHORT LOAD

(((BIRD's LIST PRICE IS $600)))



SOLD

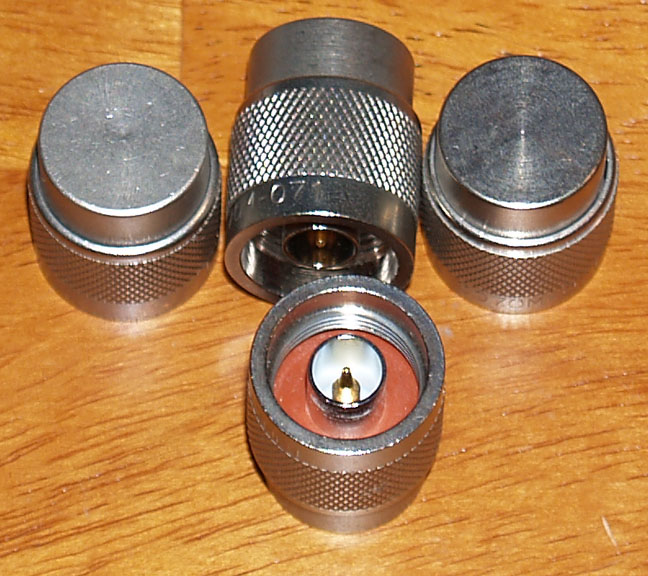

INMET 3070M-071

2 watt

DC-18GHz

SOLD

$15

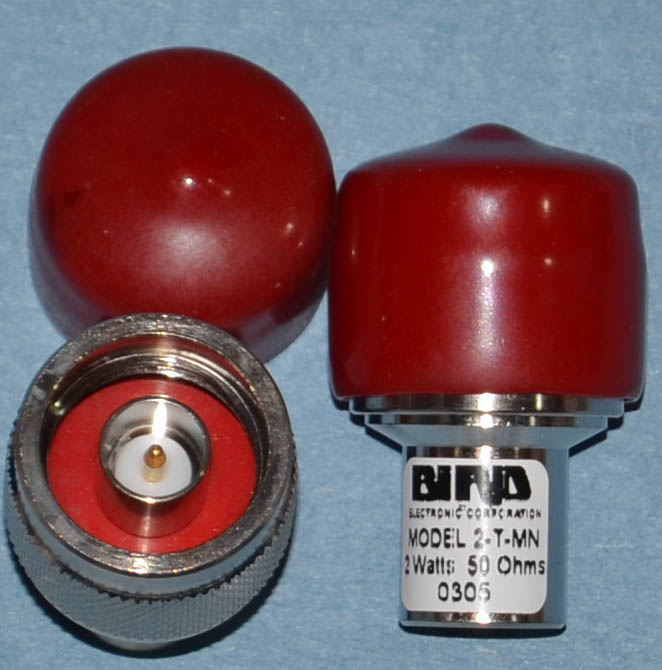

BIRD 2-T-MN

NEW

2 watt

DC-6GHz load

$15

5+ in stock

NM =

N-male

connector

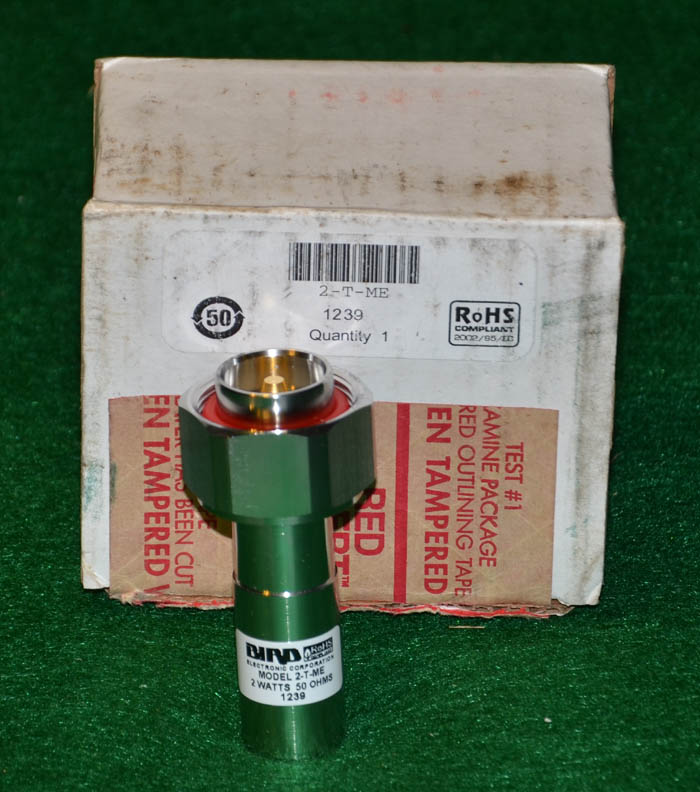

BIRD

2-T-ME

2-T-ME

NEW

2 watt

DC-6GHz load

$30

I OPENED THE BOX TO CHECK THIS

ME = MALE 7/16 DIN

($10O LIST PRICE)


BIRD

80M

5 WATTS

N-MALE

$15

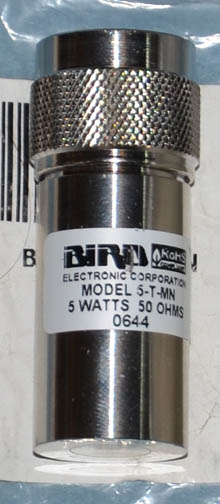

BIRD

5-T-MN

NEW

5-T-MN

DC-10GHZ

5 WATTS

SOLD



MN= N-MALE

($5O LIST PRICE)

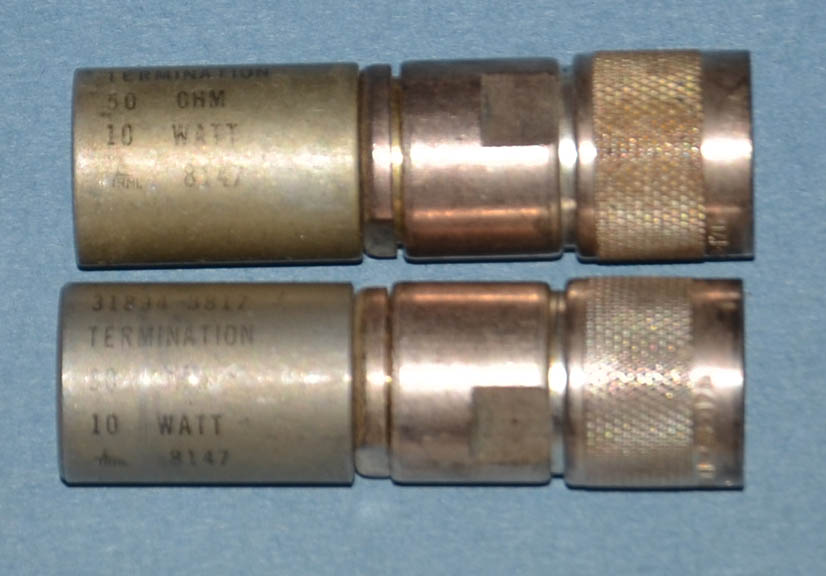

8147 10 WATTS

N-MALE

$10

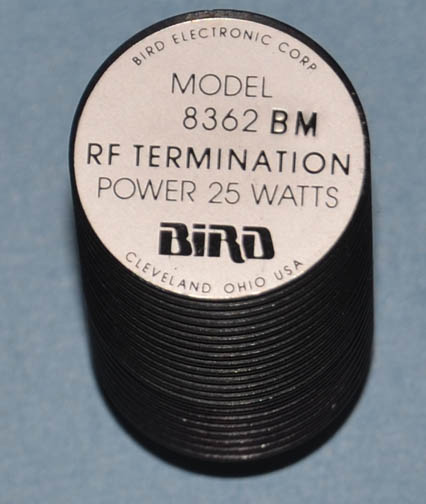

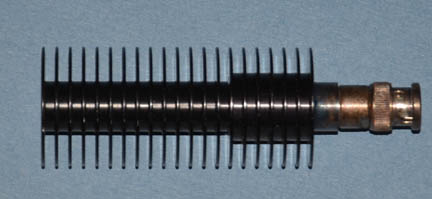

BIRD

8362BM

25 WATTS

BNC-MALE

$40

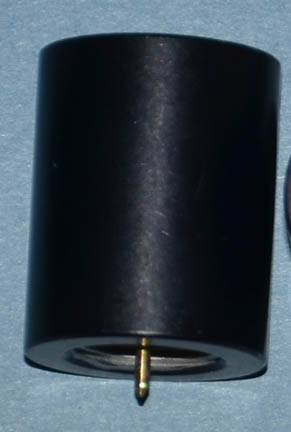

20 WATT LOAD 20 WATTS

N-MALE

$15

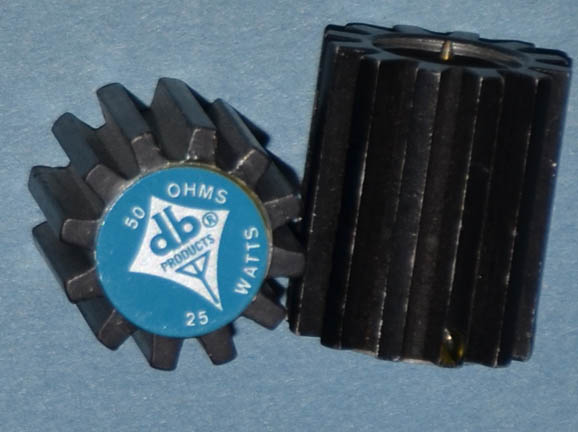

DB25

DECIBEL PRODUCTS DUMMY LOAD

25 WATTS

N-MALE

$15
DB30

DECIBEL PRODUCTS DUMMY LOAD



30 WATTS

N-MALE



$20
MACOM

MA-44001

20 WATTS $20
DB40

DECIBEL PRODUCTS DUMMY LOAD

40 WATTS

N-MALE

1 Left

$25

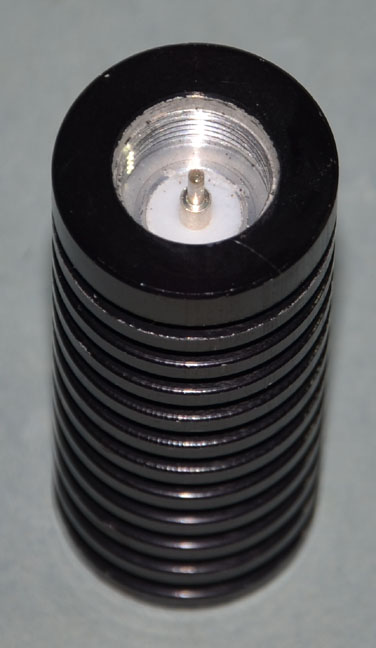

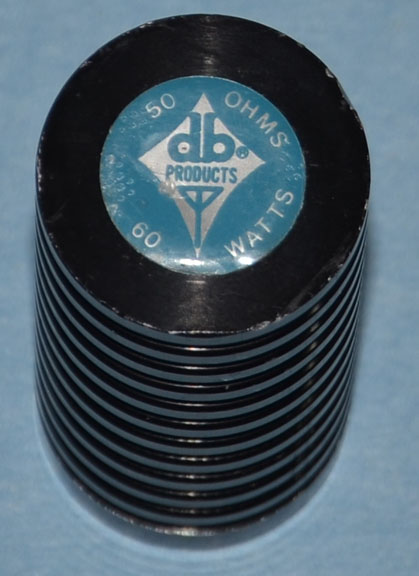

DB60

DECIBEL PRODUCTS DUMMY LOAD

60 WATT

N-MALE

$35

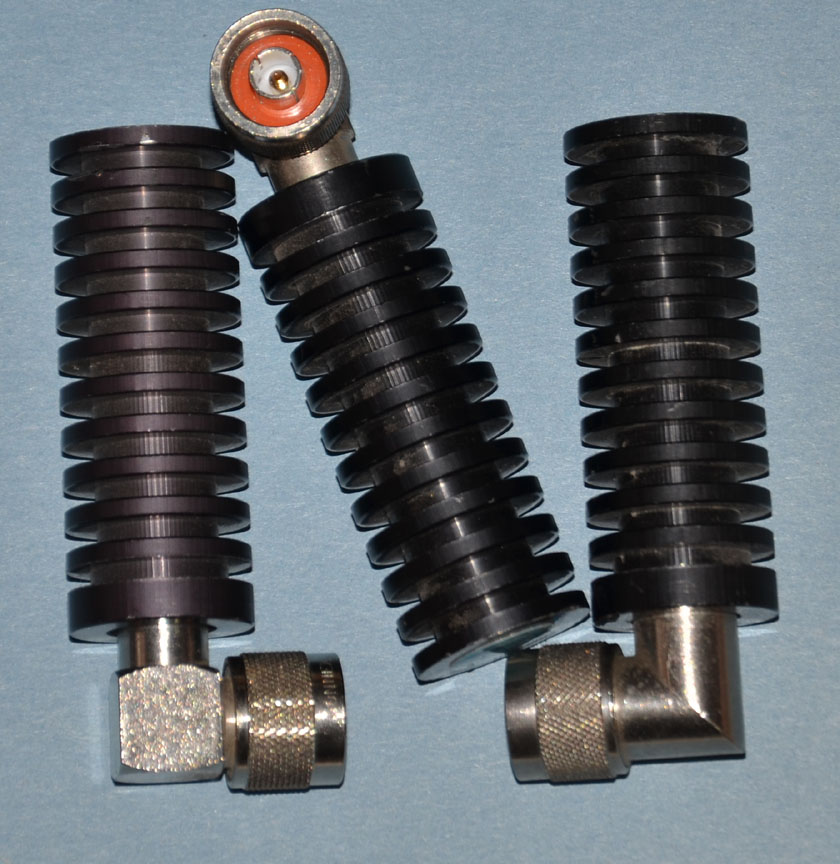

DB60

DECIBEL PRODUCTS DUMMY LOAD

60 WATT

90 DEGREE

N-MALE

$35   11

IN STOCK

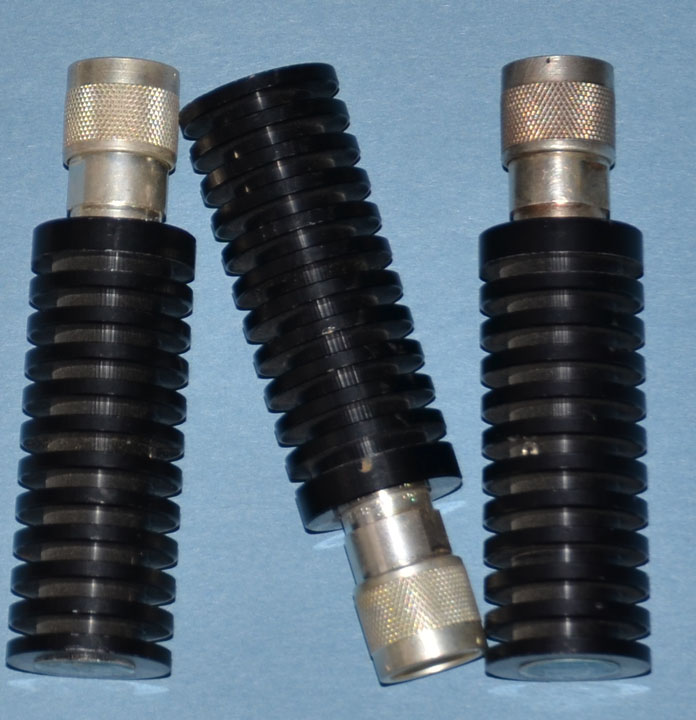

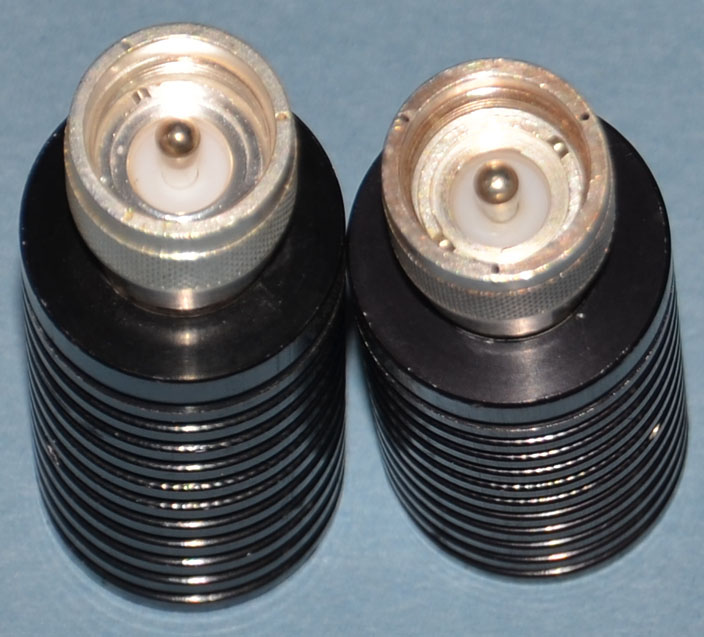

DB60

DECIBEL PRODUCTS DUMMY LOAD

60 WATT

UHF-MALE

(PL259)

$40 3

IN STOCK


DB60

DECIBEL PRODUCTS DUMMY LOAD

60 WATT

90 DEGREE

UHF-MALE

(PL259)

$40     8

IN STOCK


50 Watt

Dummy Load  By Decibel

DB 50W-NM

Very small and light weight

IN STOCK

$35

OR $40 with adapter below

11 in stock

Some are very dark, some are lighter in color as shown   These DB loads are USED and not perfect but are very nice

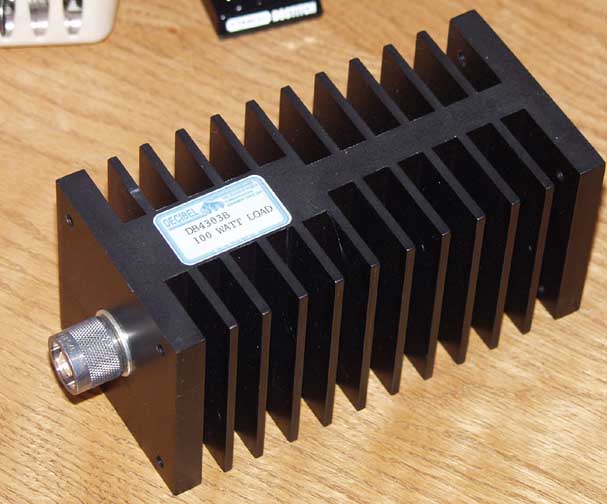

100 Watt Dummy Load  By Decibel

DB4303B W/N-Male Connector (NOT  SMALLER DB4303 or G) $50

OR $55 with adapter below

69 in stock Larger Heat sink then the more common DB4303 These DB loads are USED and not perfect but are very nice
NEW

High quality

Adapter

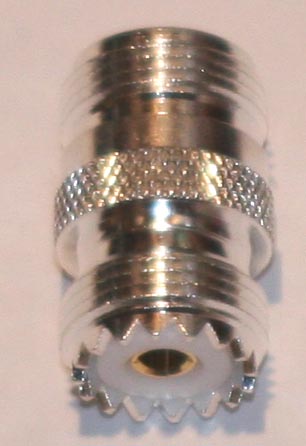

NEW N-female to UHF-female (SO239) adapter.

  Screws into any of the loads or attenuators with a fixed N-male input Like the one above.

This allows connection of standard UHF (PL-259) coax connector.

$6 20 in stock

QTY pricing please ask.


BIRD

8164

100 WATT DRY DUMMY LOAD SOLD

$85

SERIAL# 7424

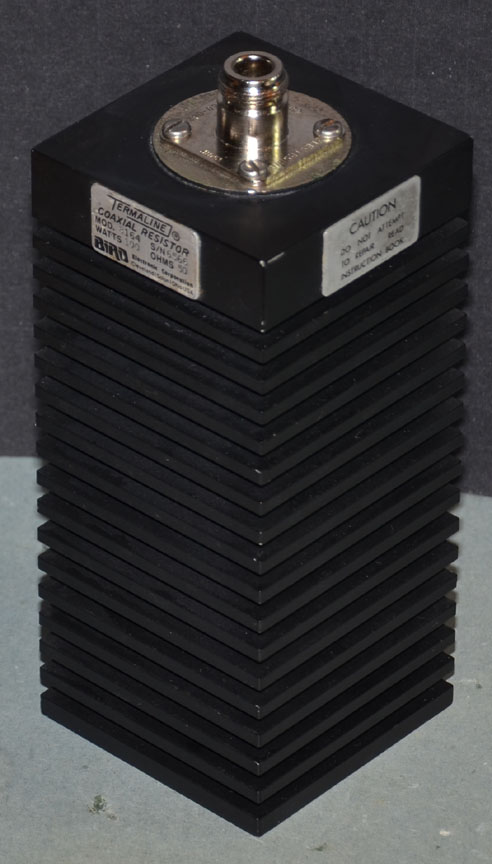

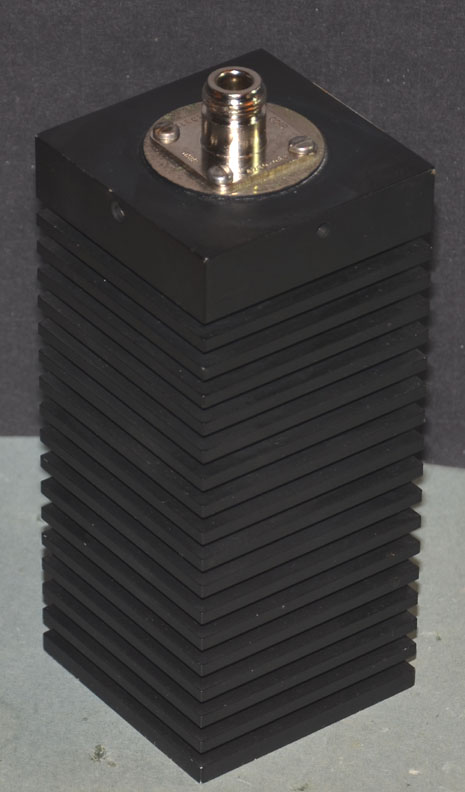

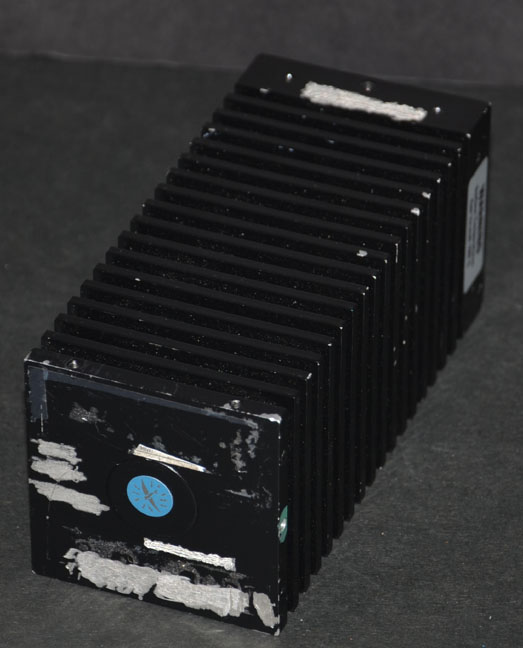

BIRD

8164



100 WATT DRY DUMMY LOAD $100

SERIAL# 6566

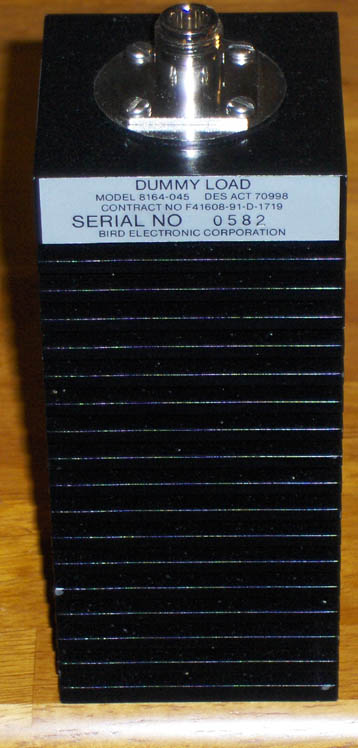

BIRD

8164-045

100 WATT DRY DUMMY LOAD

SOLD

$120

SERIAL# 0582

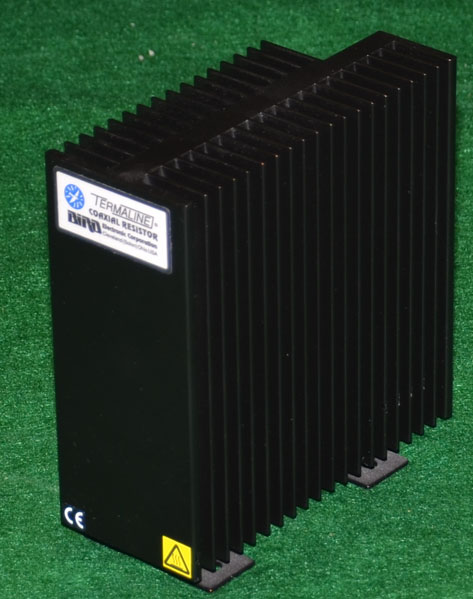

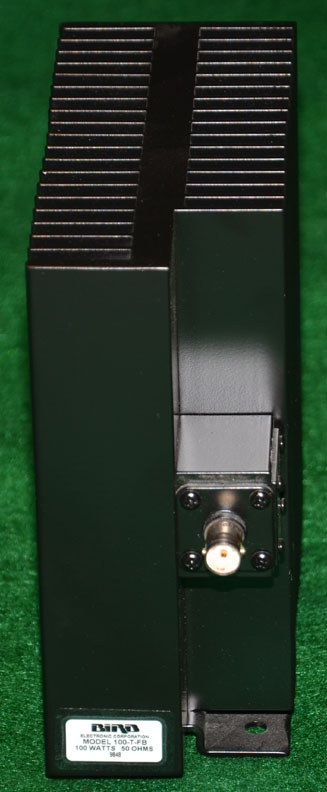

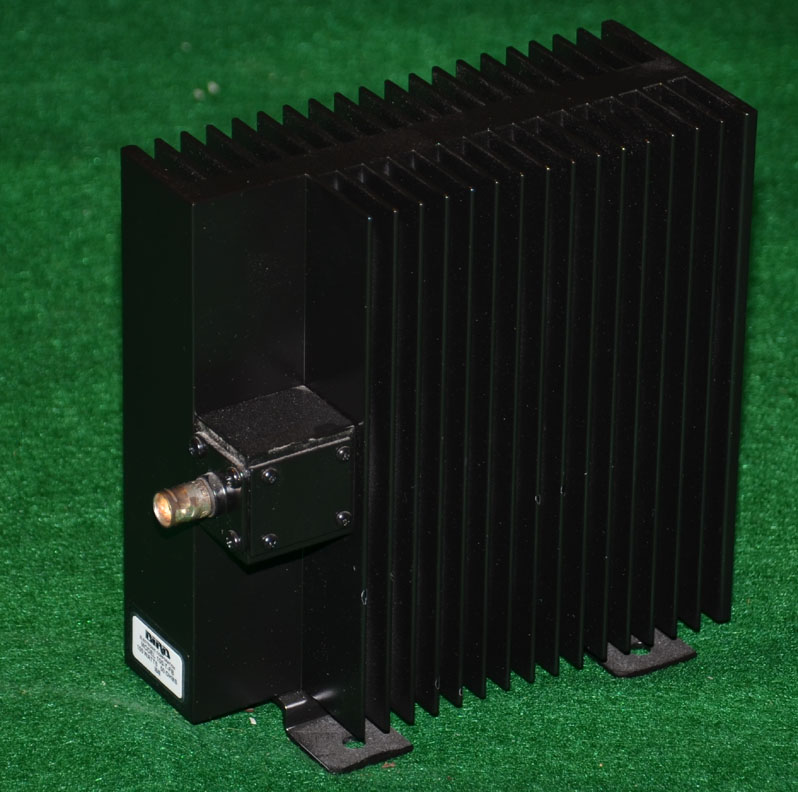

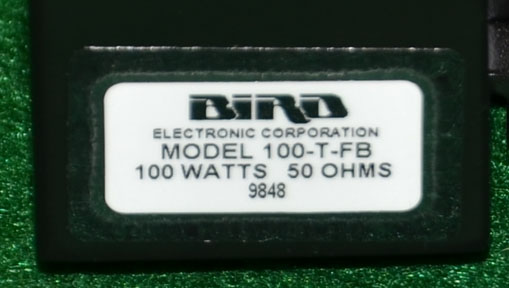

BIRD

100-T-FB

#9848

Bird 100 watt load with BNC-female connector.

DC-2.4GHz

Was on a spares shelf when I bought it.  The light areas on the feet are dust from storage.

$110



BNF-F

input

list cost is $237

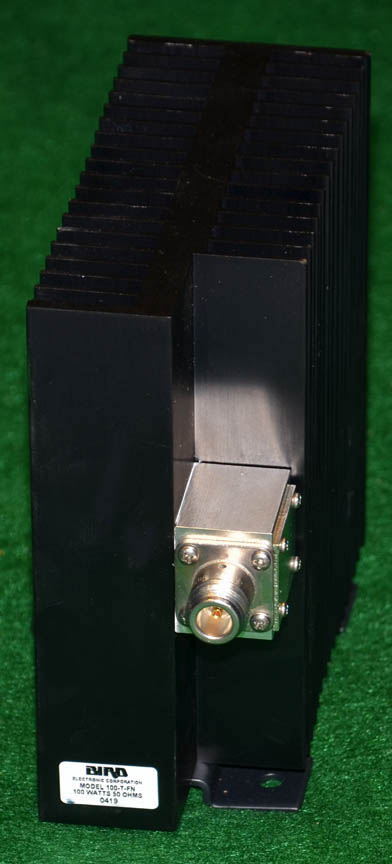

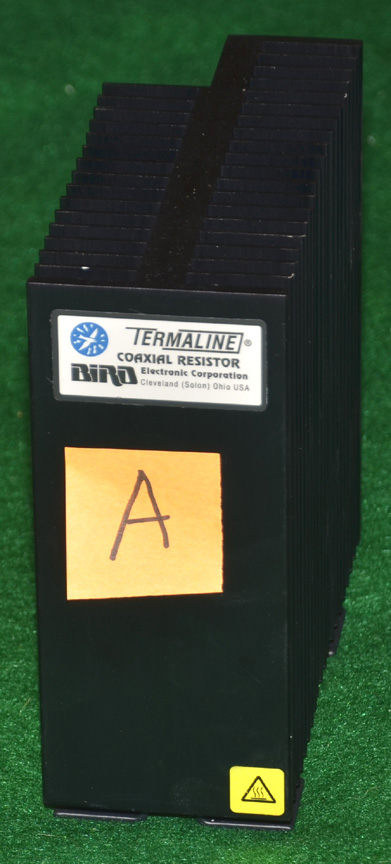

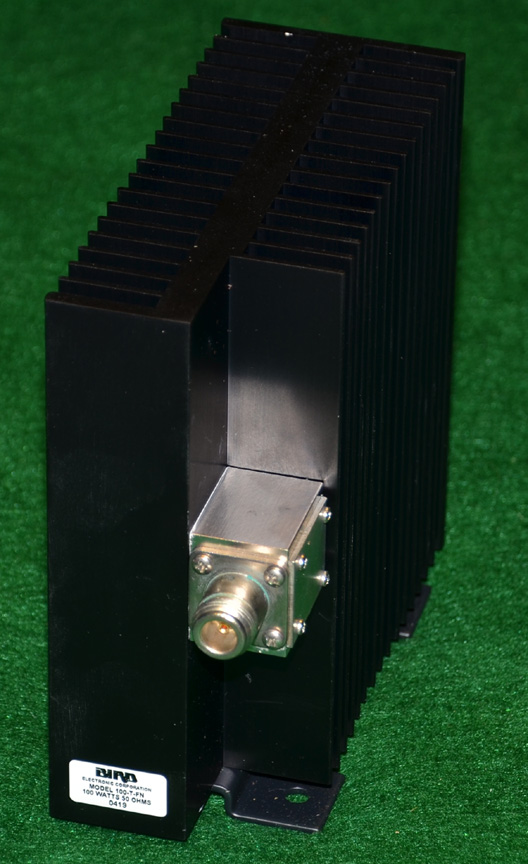

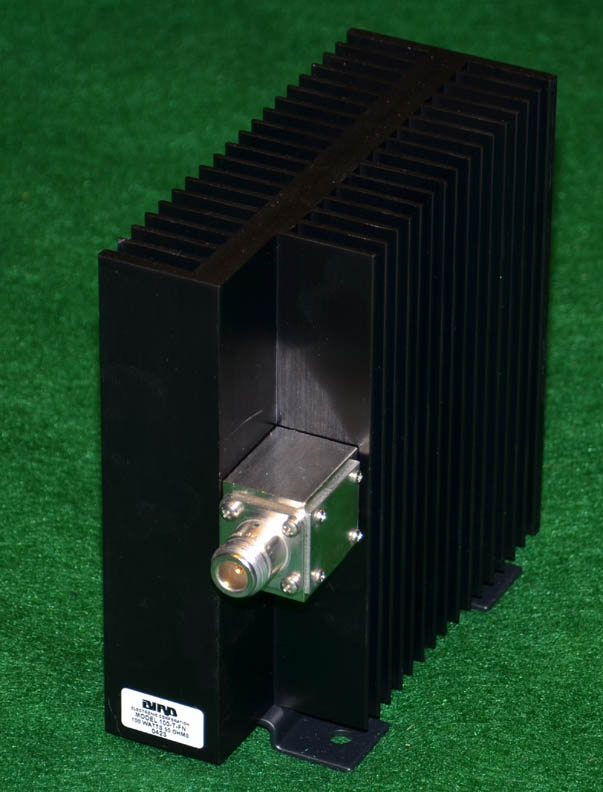

100-T-FN Bird 100 watt load with

N-female connector.

DC-2.4GHz

FRONT

100T-FN-A SOLD

100T-FN-D $120

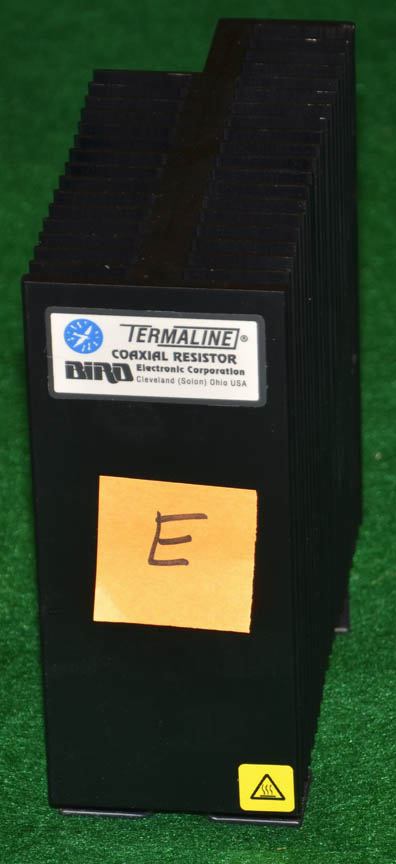

100T-FN-E $120

Priced as marked >>>>>>>>>>>>>>>>



BACK

Will include a

FREE SO230

adapter if requested at time of purchase

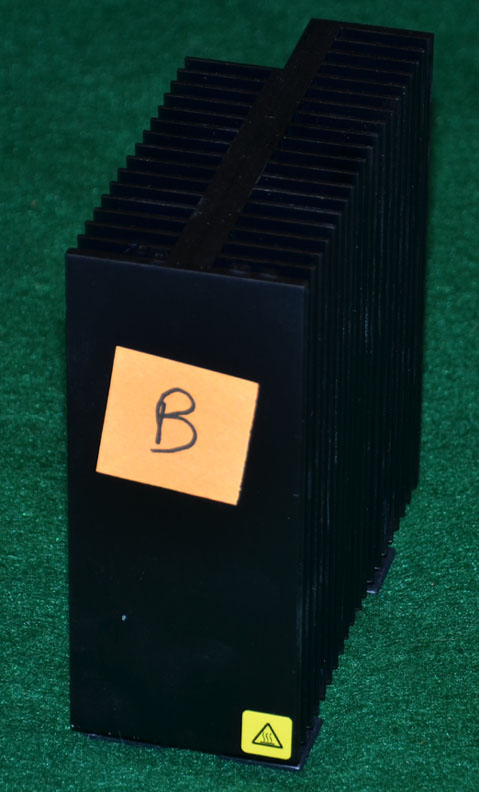

100T-FN-B $115 100T-FN-C

$115

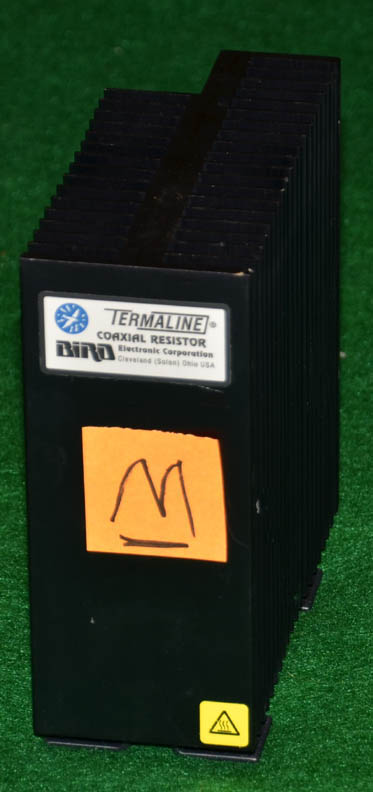

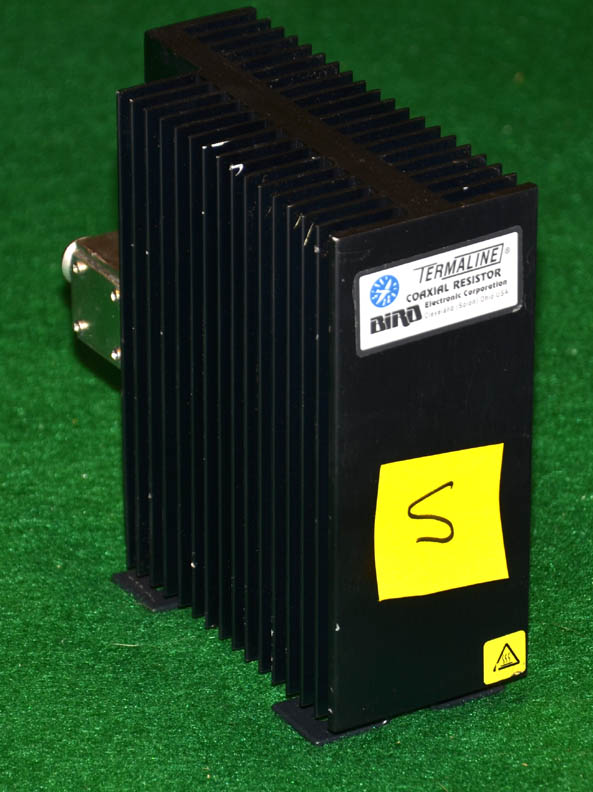

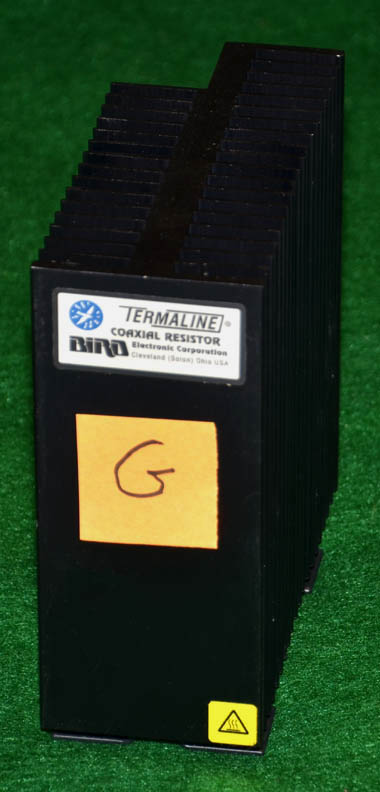

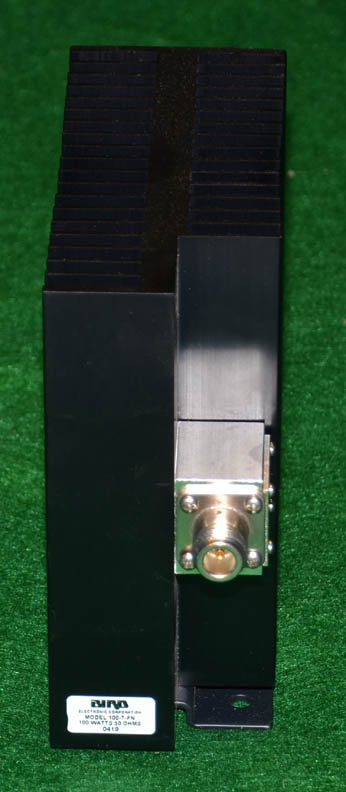

100-T-FN Bird 100 watt load with

N-female connector.

DC-2.4GHz

FRONT

100T-FN-G $115

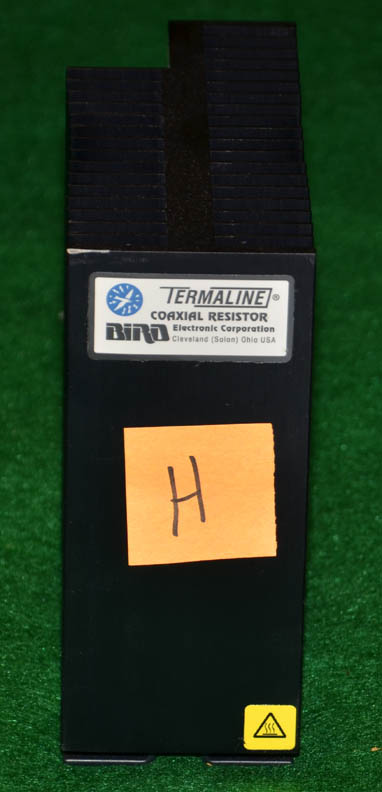

100T-FN-H $120

100T-FN-M $110

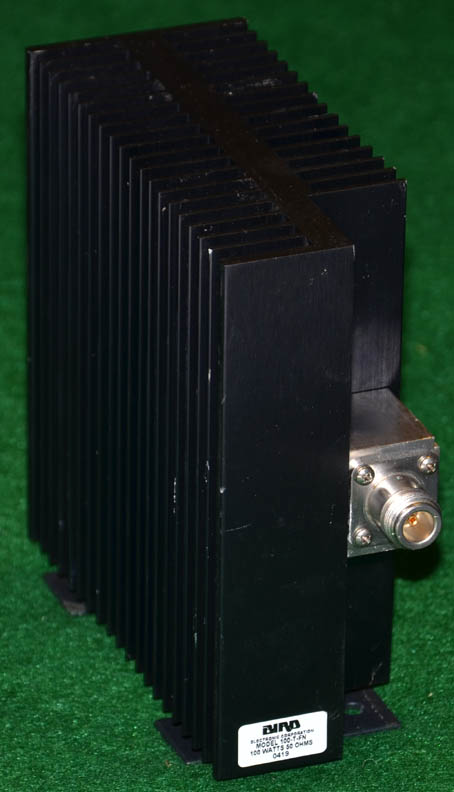

100T-FN-S $95


  BACK

Will include a

FREE SO230

adapter if requested at time of purchase

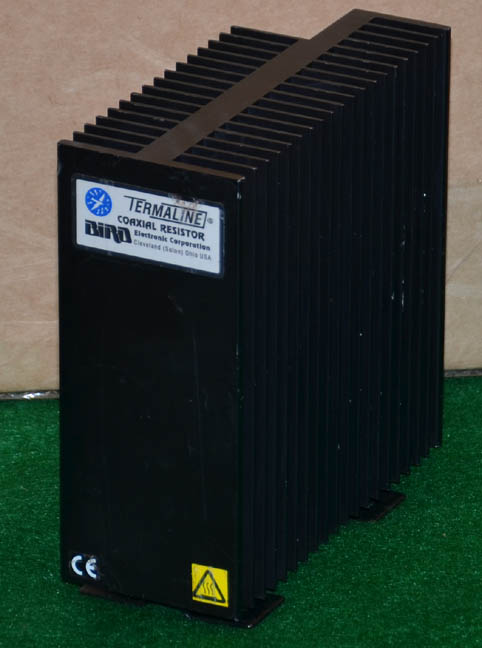

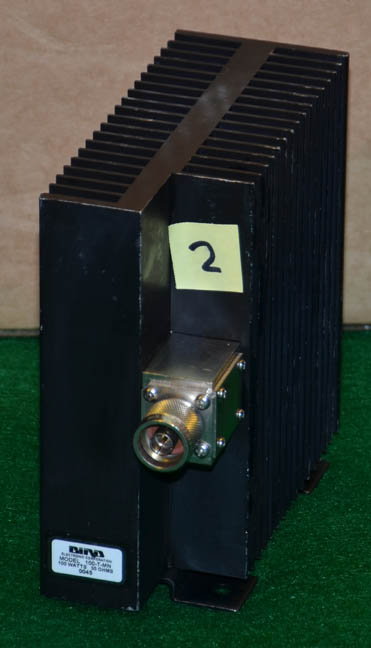

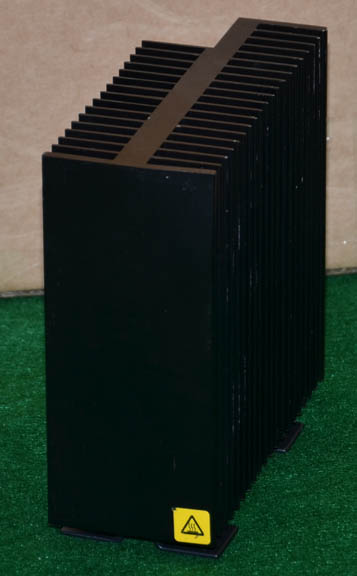

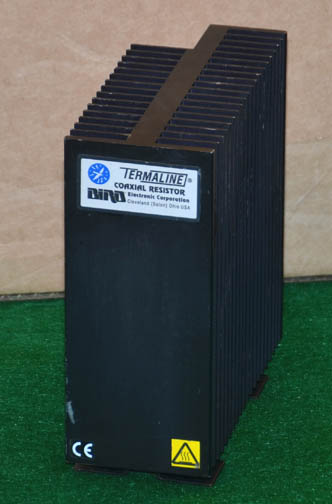

100-T-MN Bird 100 watt load with

N-MALE connector.

DC-2.4GHz

FRONT

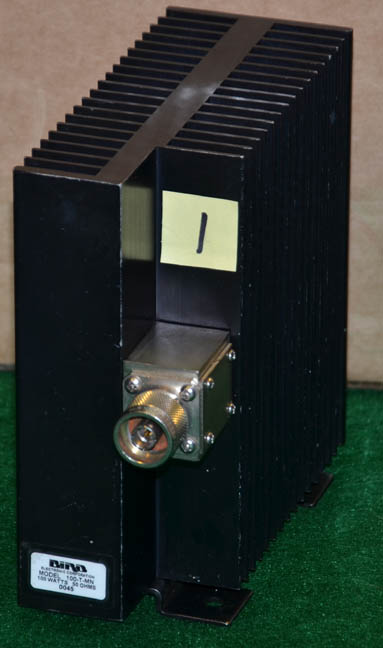

  BACK 100T-MN-1

$85

100T-MN-2

$85

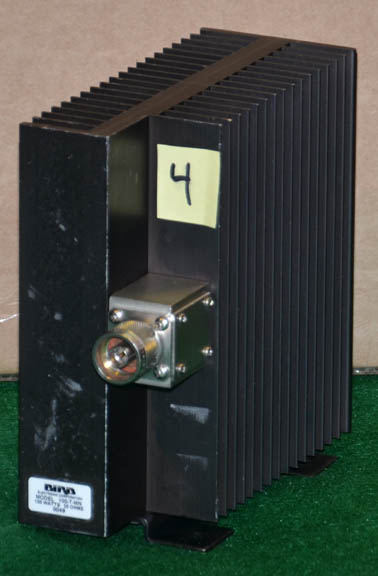

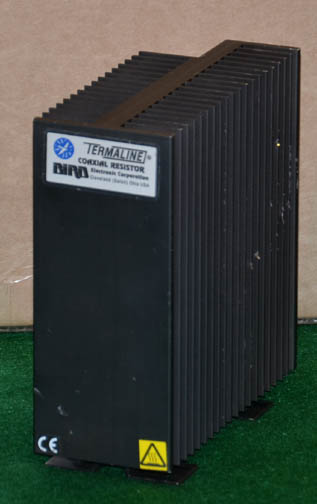

100T-MN-4

$85

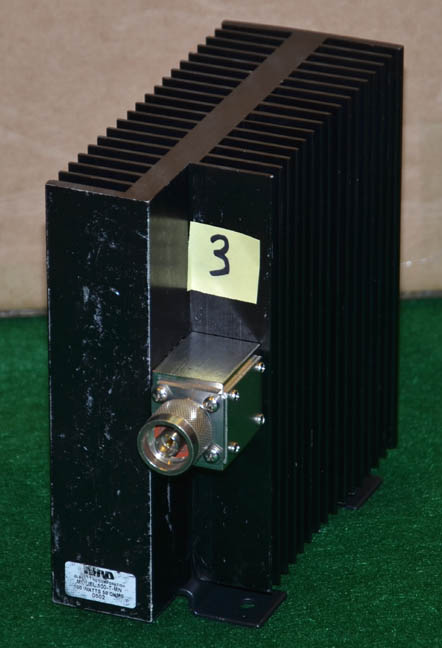

  100T-MN-3

$75

NEW

High quality

Adapter

NEW N-female to UHF-female (SO239) adapter.

  Screws into any of the loads or attenuators with a fixed N-male input Like the one above.

This allows connection of standard UHF (PL-259) coax connector.

$6 20 in stock

QTY pricing please ask.

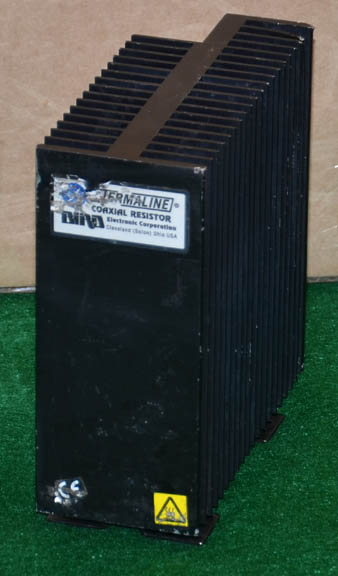

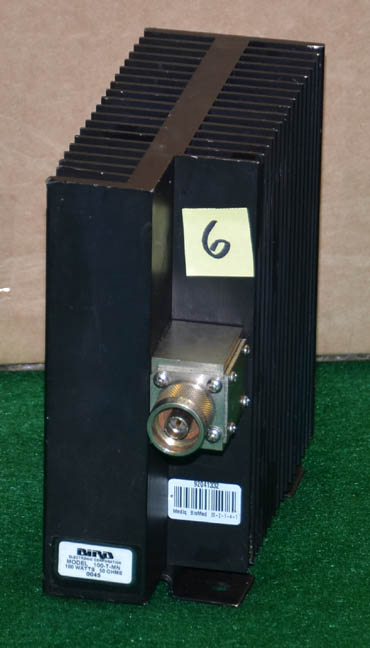

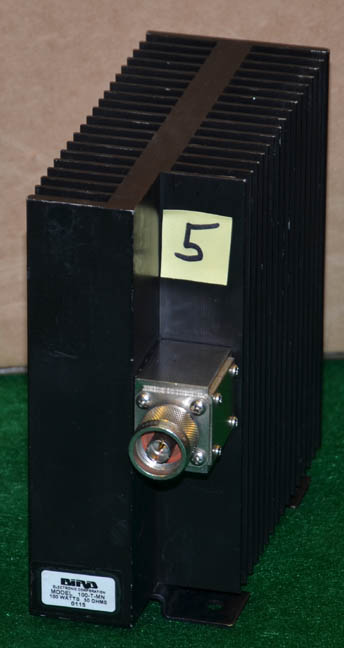

100-T-MN Bird 100 watt load with

N-MALE connector.

DC-2.4GHz

FRONT

100T-MN-5

$85



100T-MN-6

$75

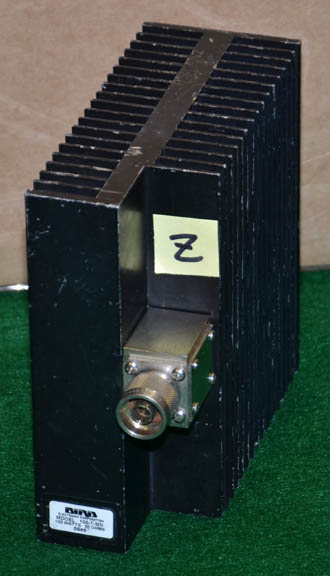

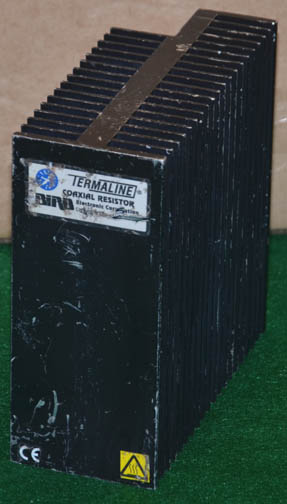

100T-MN-Z

$65

CURRENT LIST PRICE $237 BACK

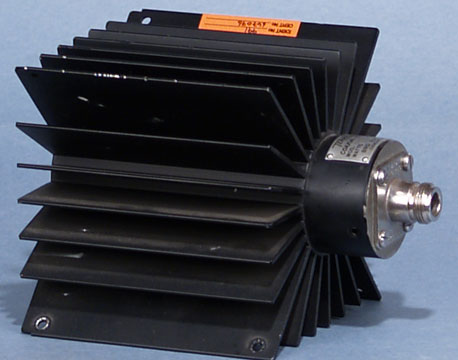

8160

#991

100 WATTS



THIS LOAD TESTS FINE ON HF = 0-30MHz

ON 2 METERS AND ABOVE THE SWR INCREASES.  MOST LIKELY WHY THESE ARE NOT PRODUCED ANY LONGER.

I WILL SWAP QC CONNECTOR TO UHF-F OR BNC-F IF YOU REQUEST BEFORE PAYMENT.

$25
4100

100 WATTS

SIZED DIELECTRIC / CDI

100 WATT LOAD WITH N-FEMALE CONNECTOR

FITS IN THE LARGE CDI HARD CASES

SOLD

$50



100 Watt Dummy Load  By Decibel

DB4303B W/N-Male Connector (NOT  SMALLER DB4303 or G) $50

OR $55 with adapter below

69 in stock Larger Heat sink then the more common DB4303 These DB loads are USED and not perfect but are very nice
100 Watt Dummy Load  By Decibel  DB4303B

 that are cosmetically challenged.  Some have large dings others are no longer all black.

$35

priced below my cost to sell fast

No photos as they are all different and 100% tested good.

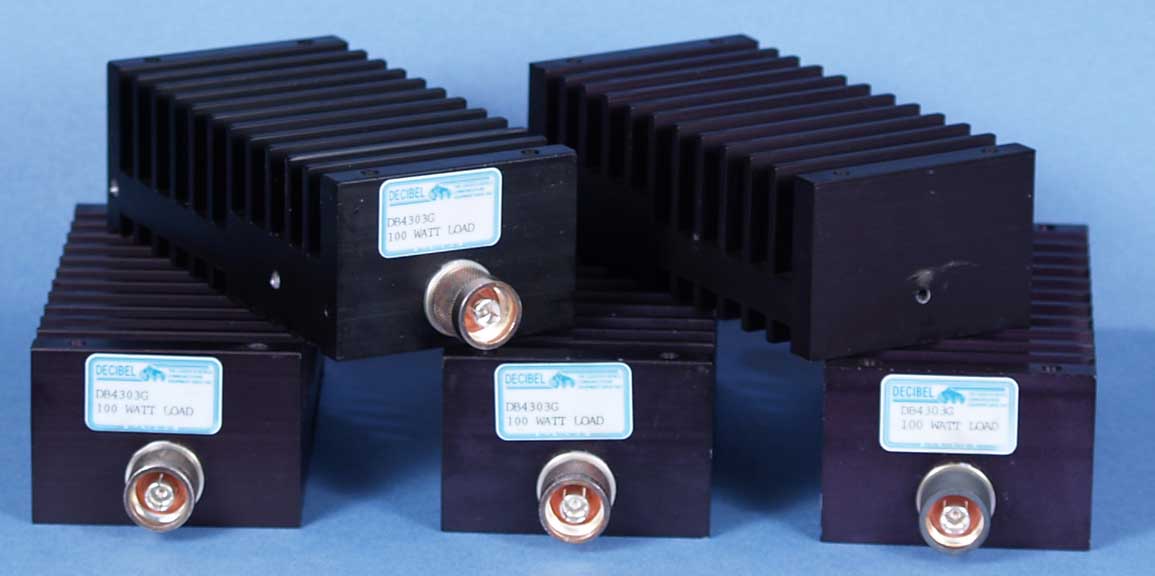

100 Watt Dummy Load  By Decibel  DB4303G

Smaller Lighter weight then the B but still 100 watts.

$45

OR $50 with adapter below

3 in stock   These DB loads are USED and not perfect but are very nice
50 Watt

Dummy Load  By Decibel

DB 50W-NM

Very small and light weight

IN STOCK

$35

OR $40 with adapter below

11 in stock

Some are very dark, some are lighter in color as shown   These DB loads are USED and not perfect but are very nice

NEW

High quality

Adapter

NEW N-female to UHF-female (SO239) adapter.

  Screws into any of the loads or attenuators with a fixed N-male input Like the one above.

This allows connection of standard UHF (PL-259) coax connector.

$6 20 in stock

QTY pricing please ask.

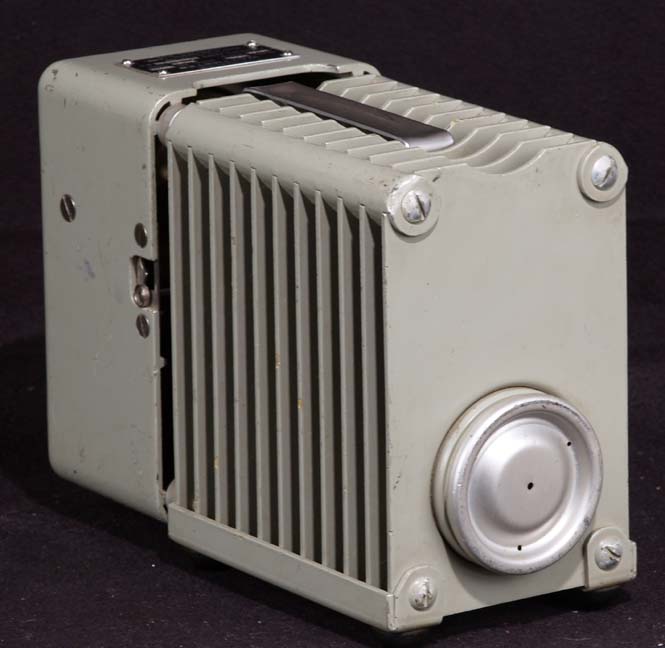

Bird 611 This is a meter / load combo SOLD

$100

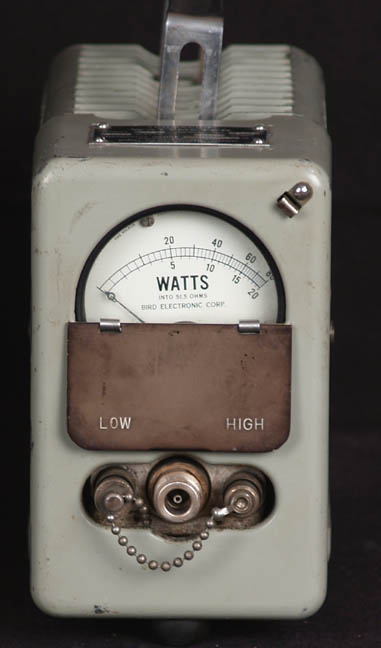

Bird 612 This is a meter / load combo $125

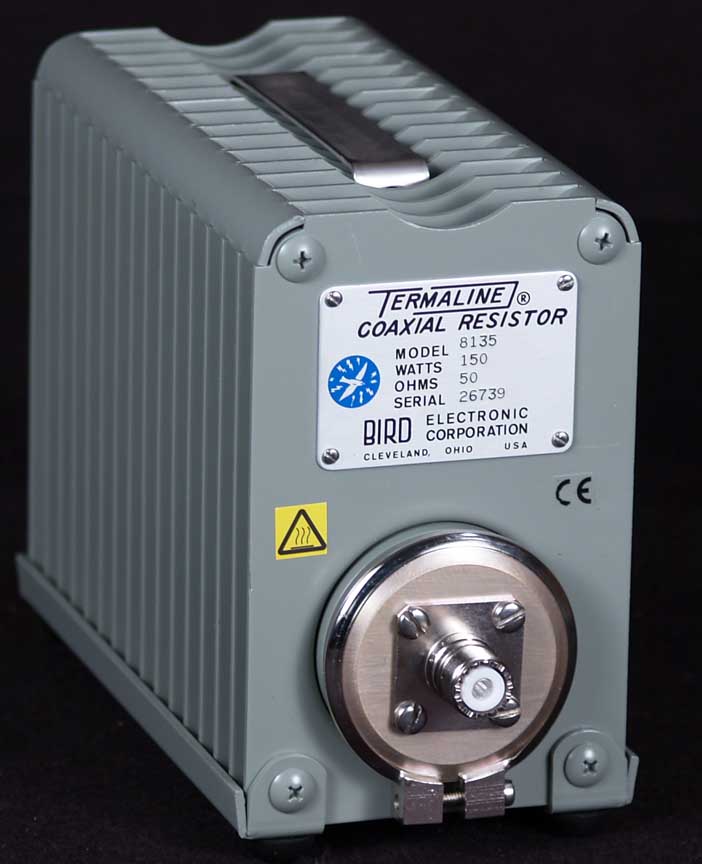

Bird

8135





150Watt CCS

Oil filled load

SOLD

SO239

UHF-Female

$145



# 26739

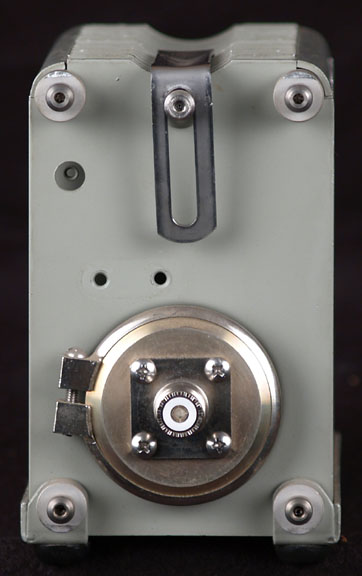

Bird



150Watt CCS

Oil filled load

Was panel mounted

SOLD

$100

with

N-female


Bird



150Watt CCS

Oil filled load

Was panel mounted

$100

with so239

uhf-f

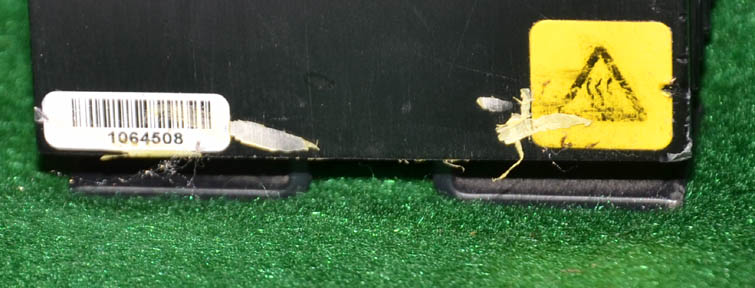

Bird

150-T-FN

Termination

150 Watts

Good to 2.4GHz

#508

$60



Tested good

Priced by cosmetics

#1064508

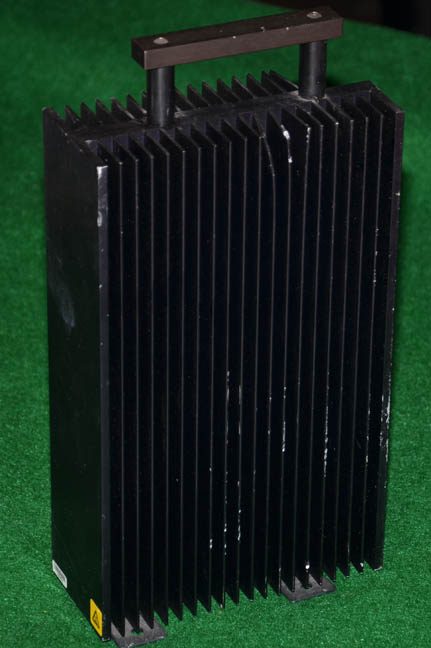

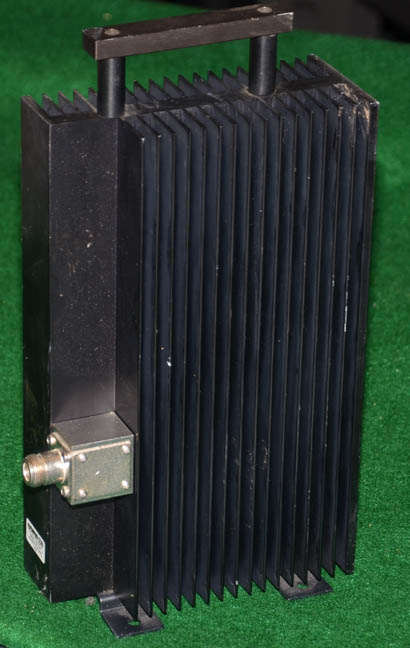

Bird

150-T-FN

Termination

150 Watts

Good to 2.4GHz

#512

$60

Tested good

Priced by cosmetics



#1064512

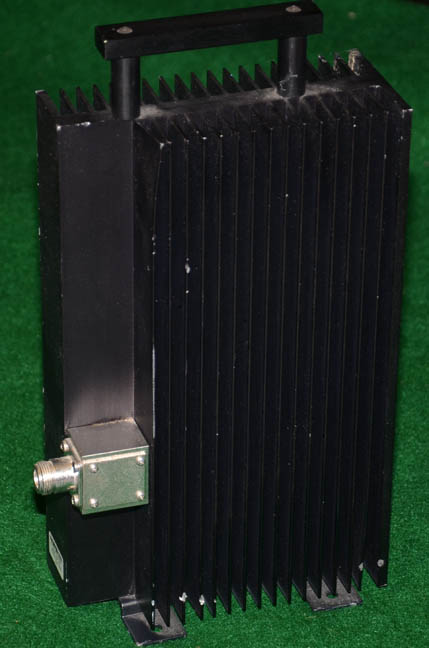

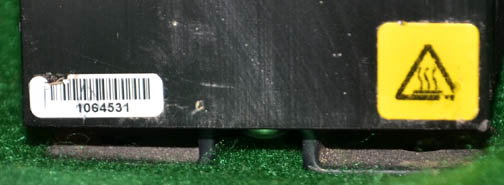

Bird

150-T-FN

Termination

150 Watts

Good to 2.4GHz

#531

$60

Tested good

Priced by cosmetics



#1064531

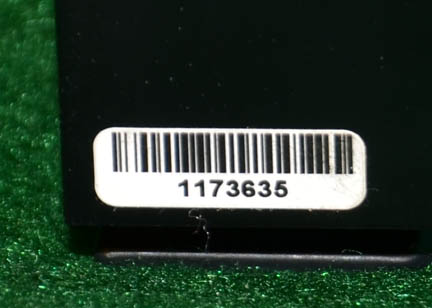

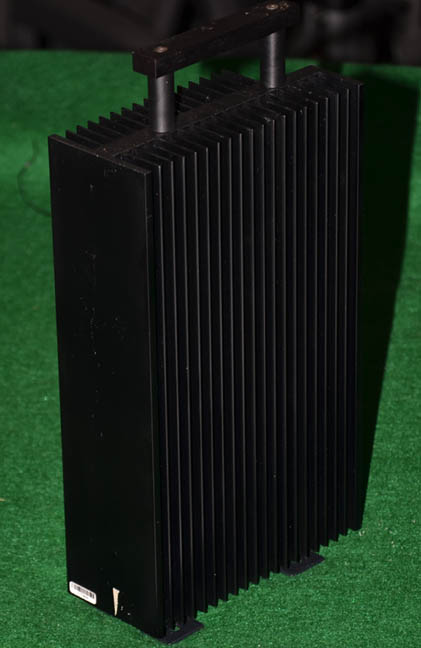

Bird

150-T-FN

Termination

SOLD

150 Watts

Good to 2.4GHz

#3635

$100

Tested good

Priced by cosmetics



#1173635

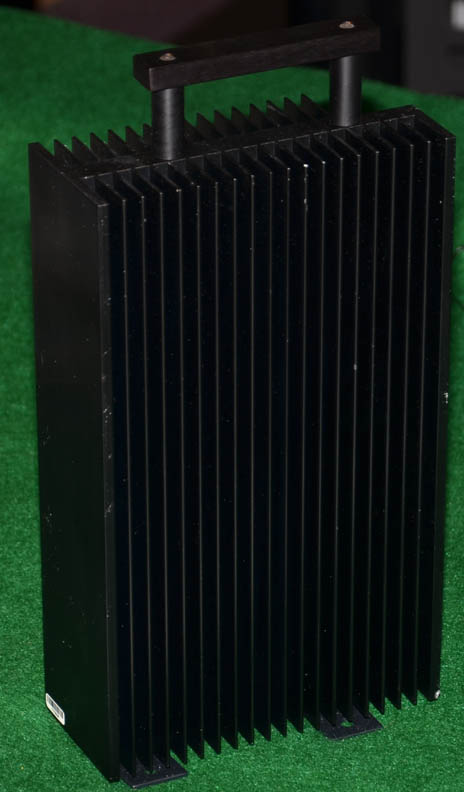

Bird

150-T-FN

Termination

150 Watts

Good to 2.4GHz

#3638

$100

Tested good

Priced by cosmetics



#1173638


BIRD

NOS

150Watt

DRY LOAD

5

in stock

$125

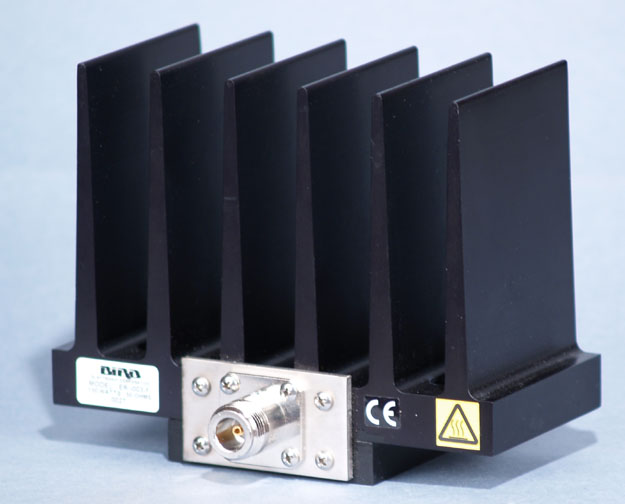

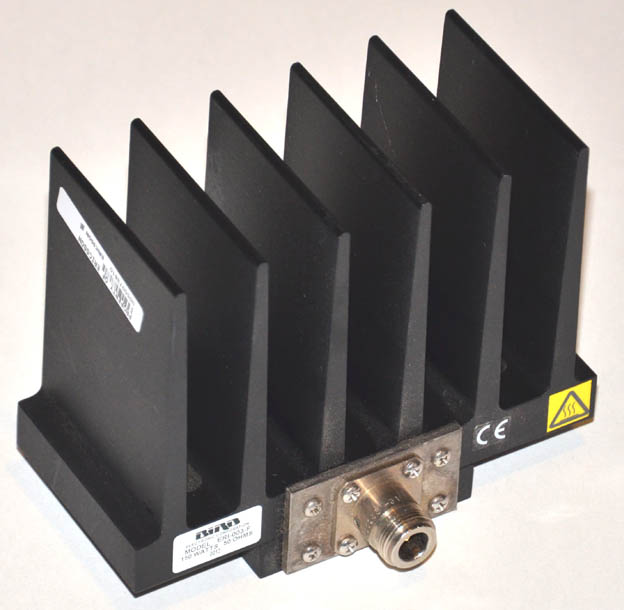

BIRD

150 Watt

DRY LOAD

Used

$95

0012



SOLD

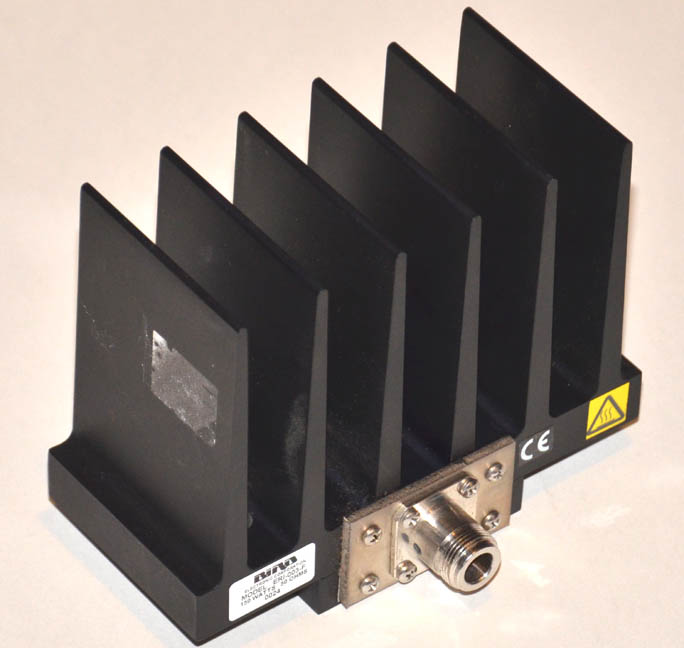

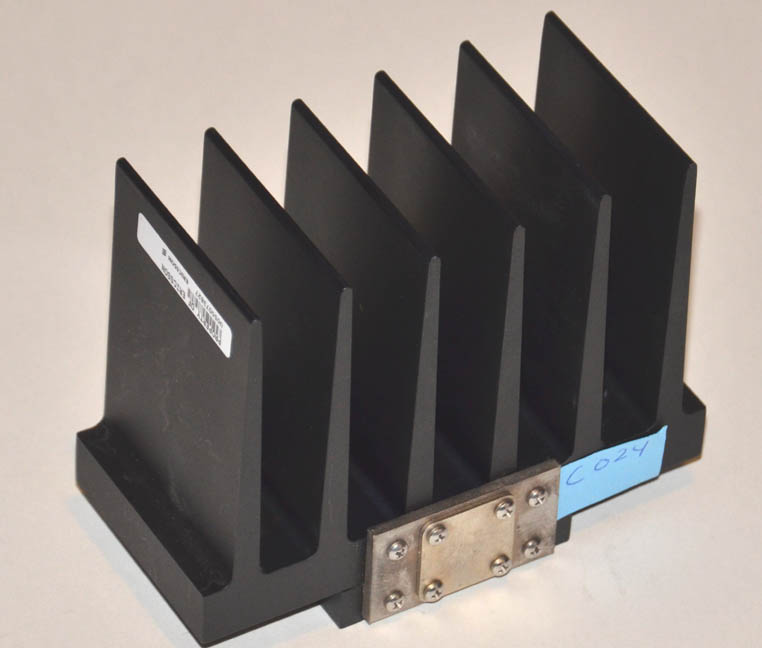

C024

D024

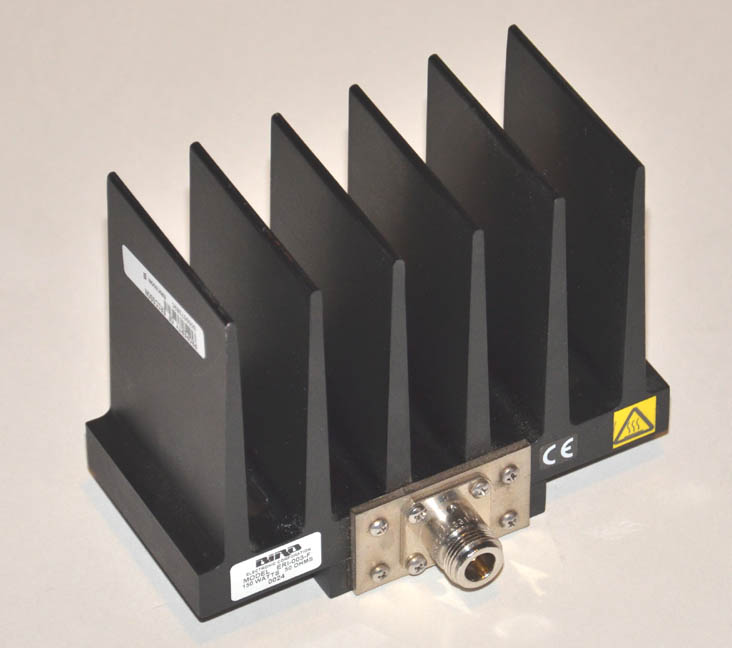

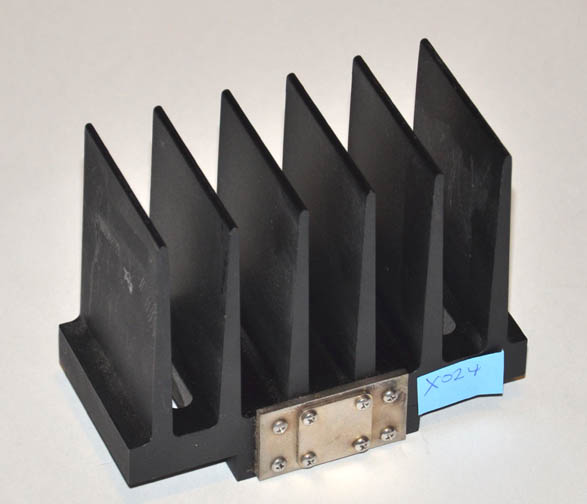

X024

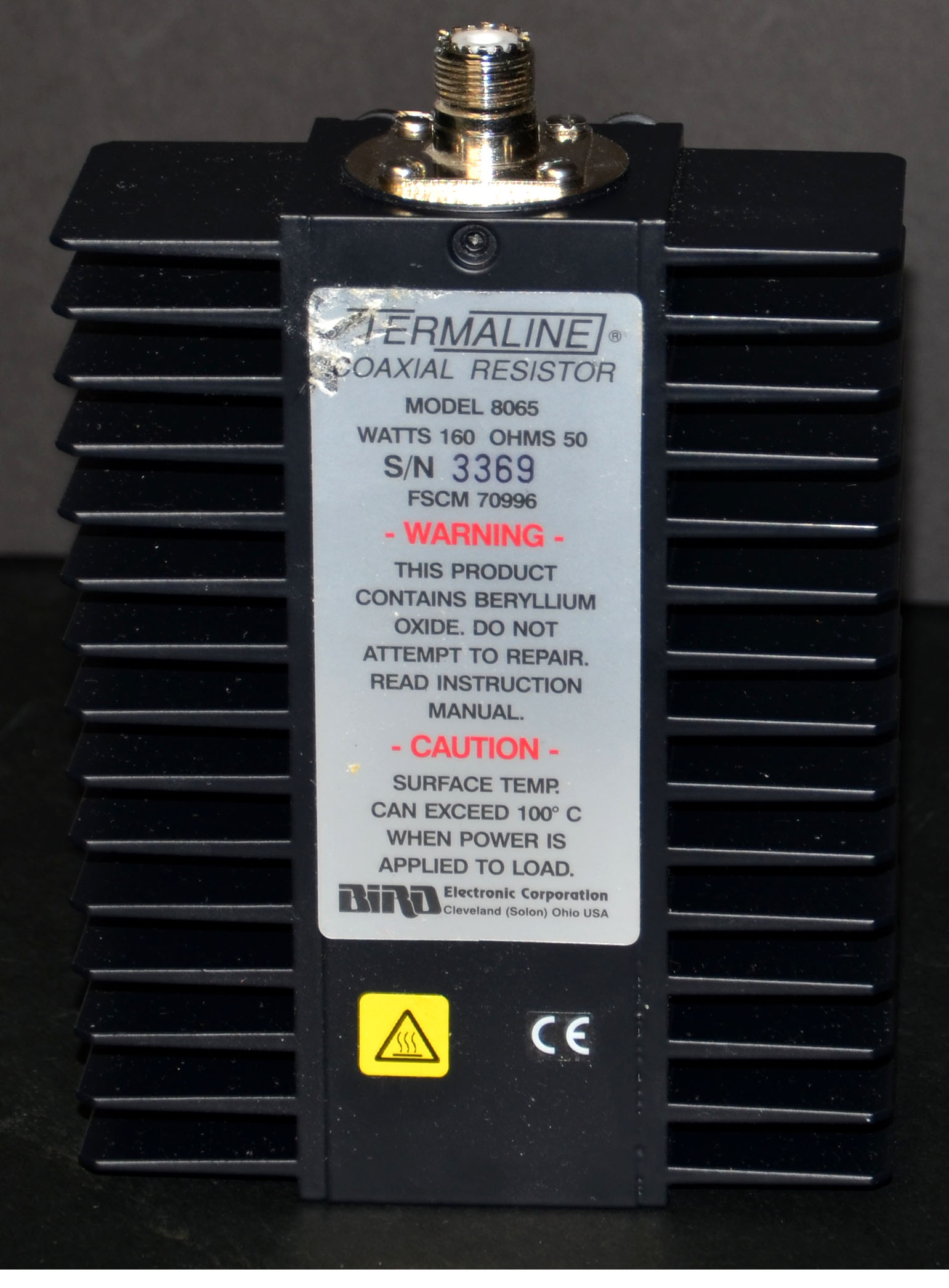

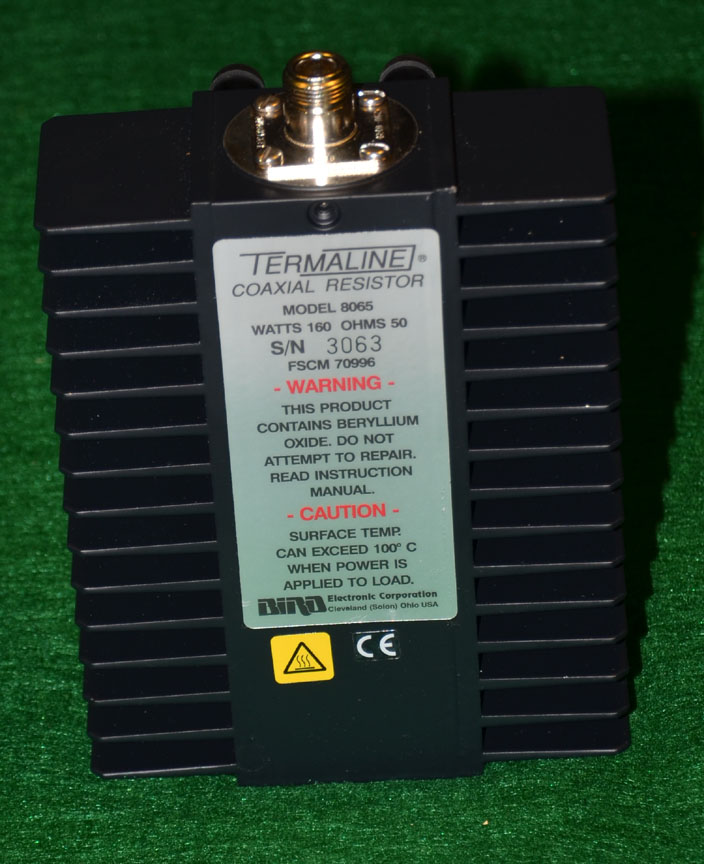

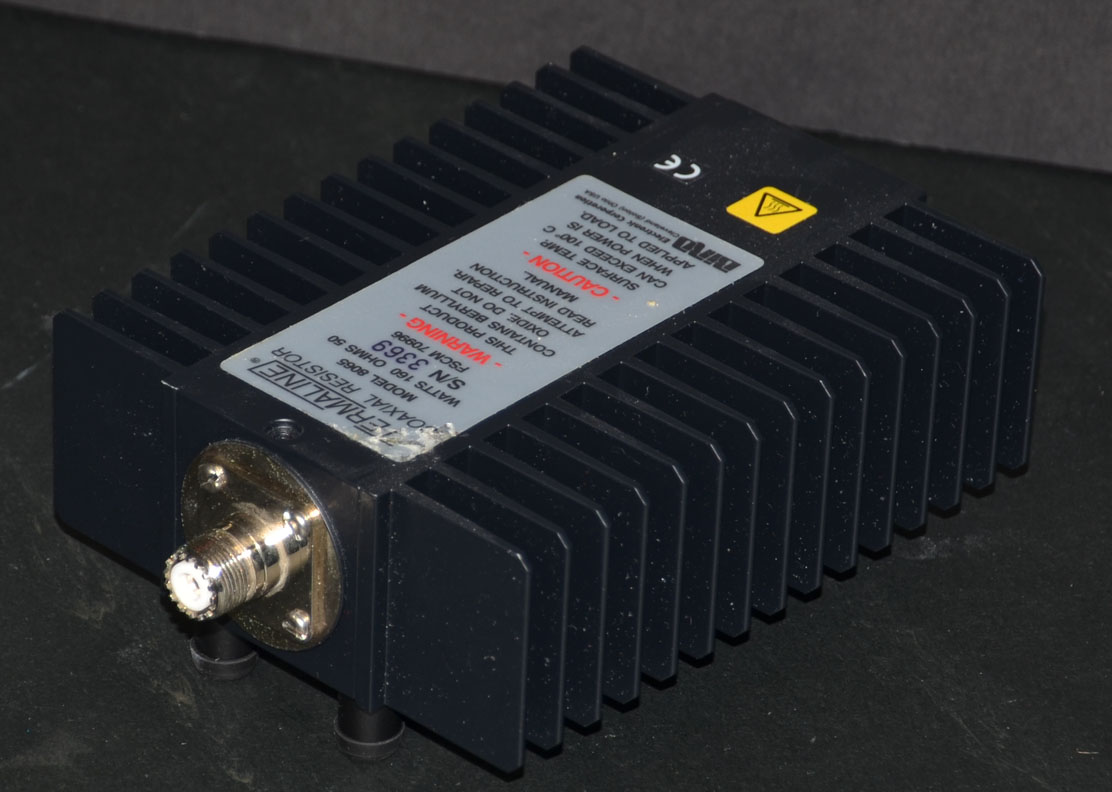

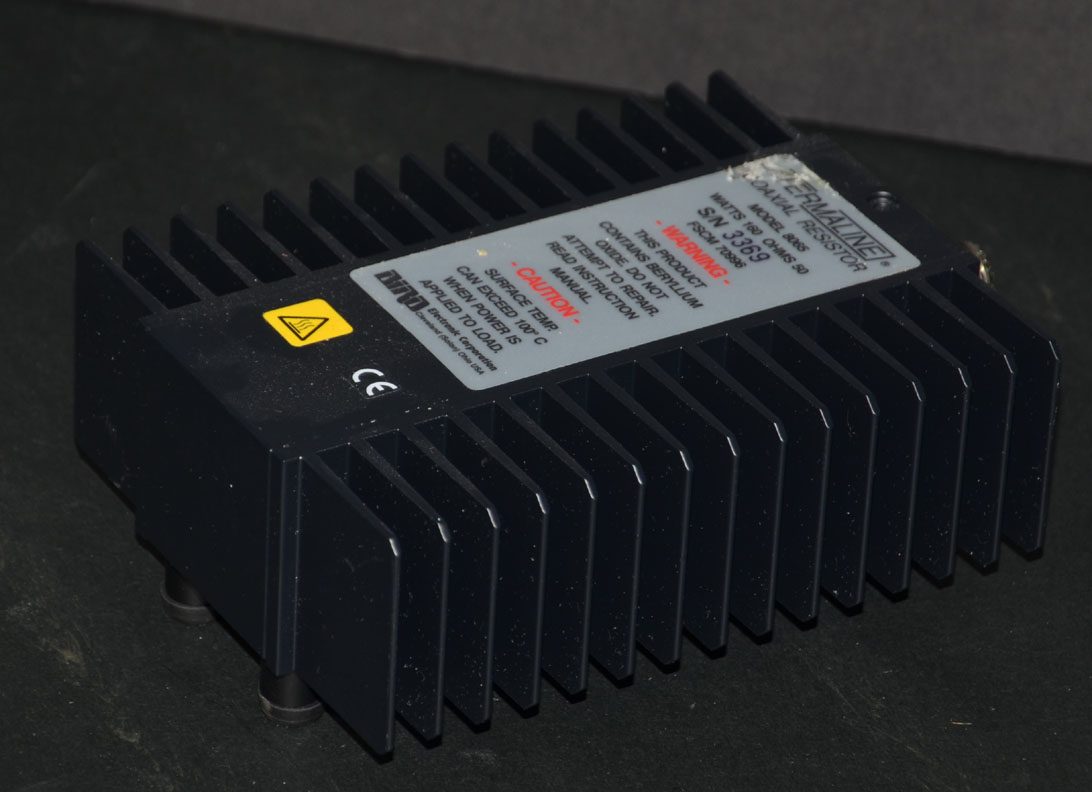

BIRD

 8065

160 Watt

#3063

DRY LOAD

LARGE MILITARY SPEC DUMMY LOAD

SOLD



I will swap connectors to UHF-f BNC-f or N-f if you need at NO extra charge

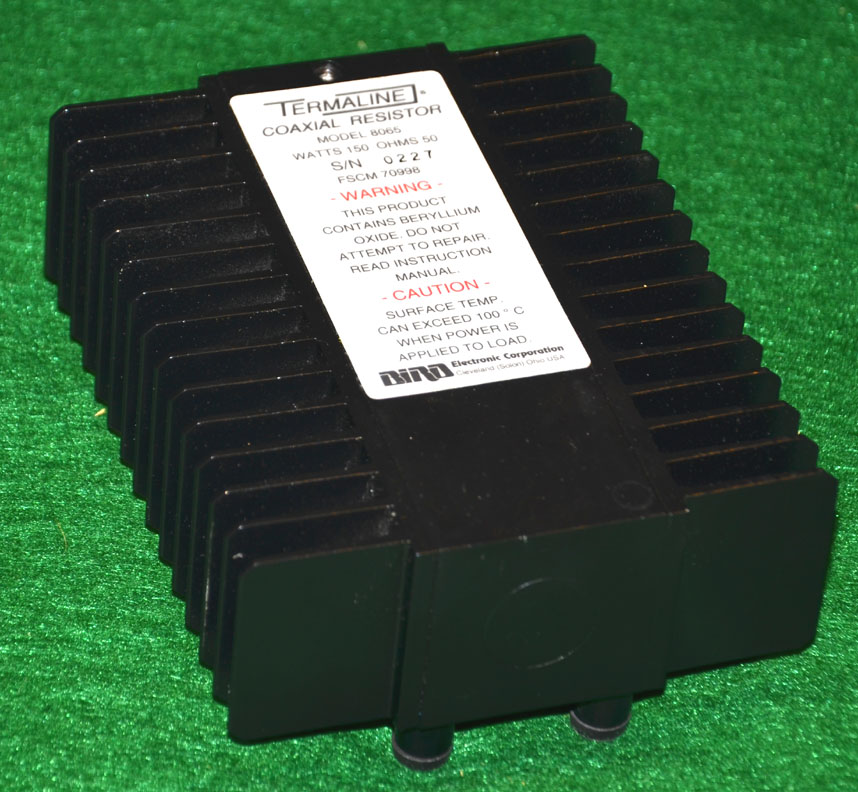

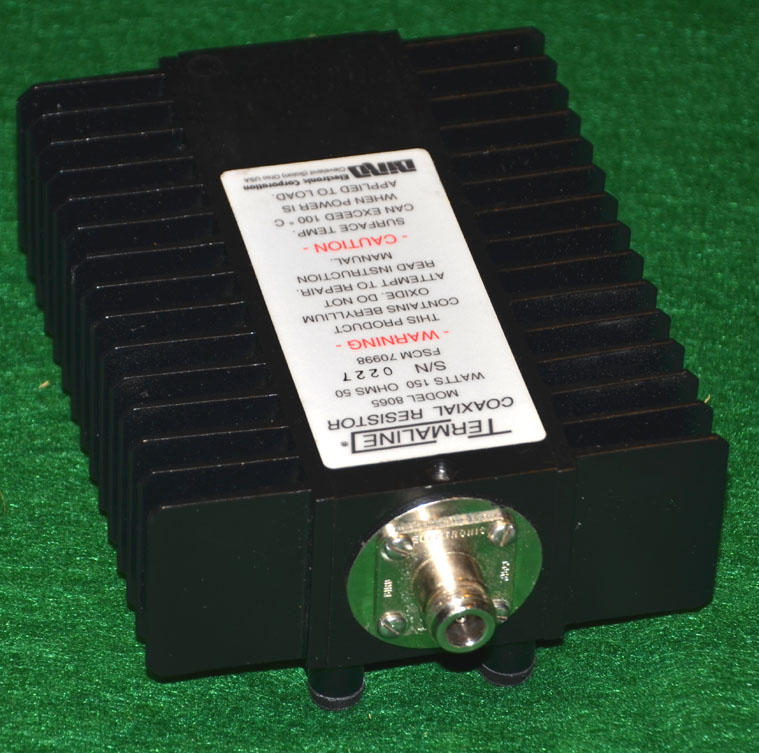

BIRD

 8065

150 Watt

#0227

SOLD

DRY LOAD

LARGE MILITARY SPEC DUMMY LOAD

$110

I will swap connectors to UHF-f BNC-f or N-f if you need at NO extra charge
200 WATT

LOAD

N-FEMALE

$50



#200DL

SOLD

SOLD

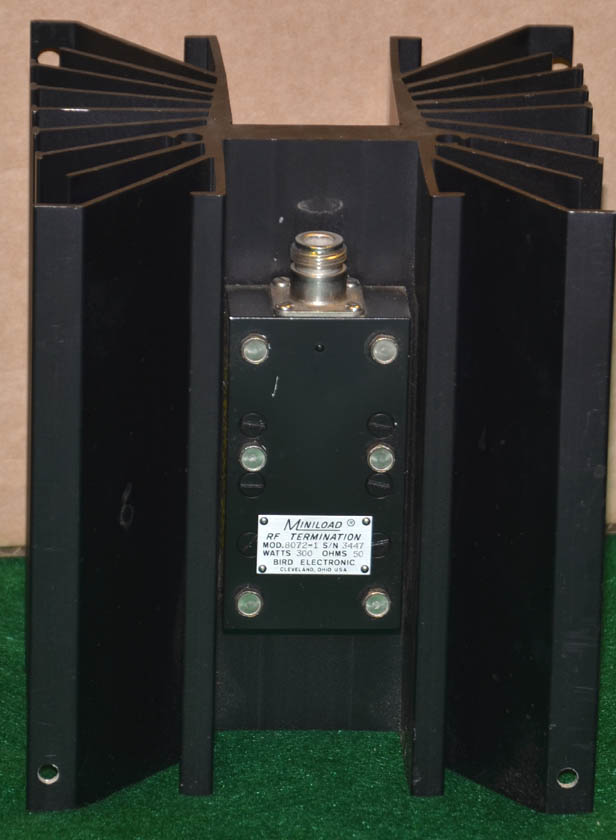

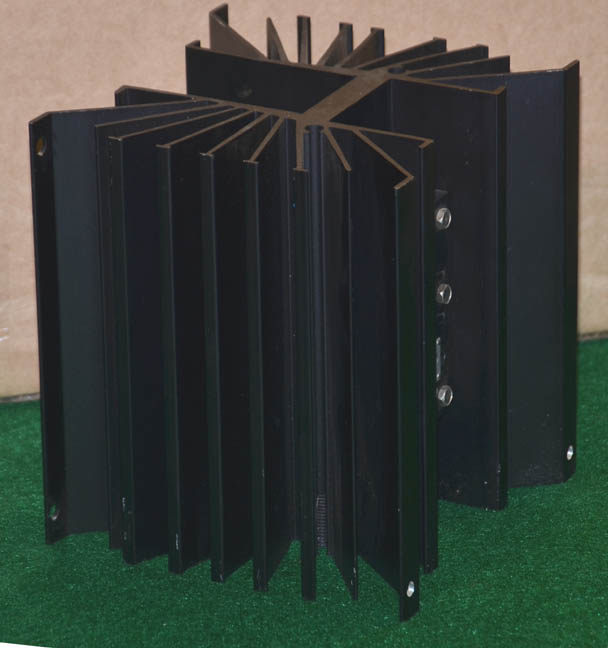

300 WATT

BIRD

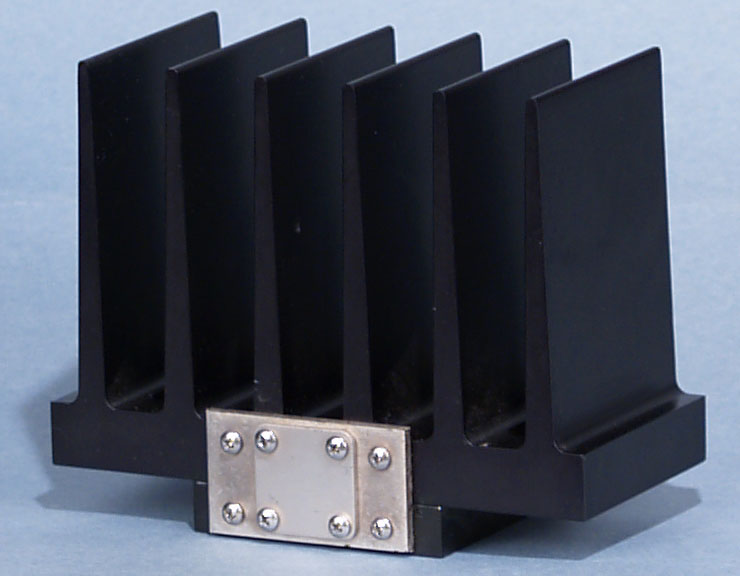

8072-1

MOUNTED

8072-1



MOUNTED TO AN APPROPRIATELY SIZED HEAT SINK

$120

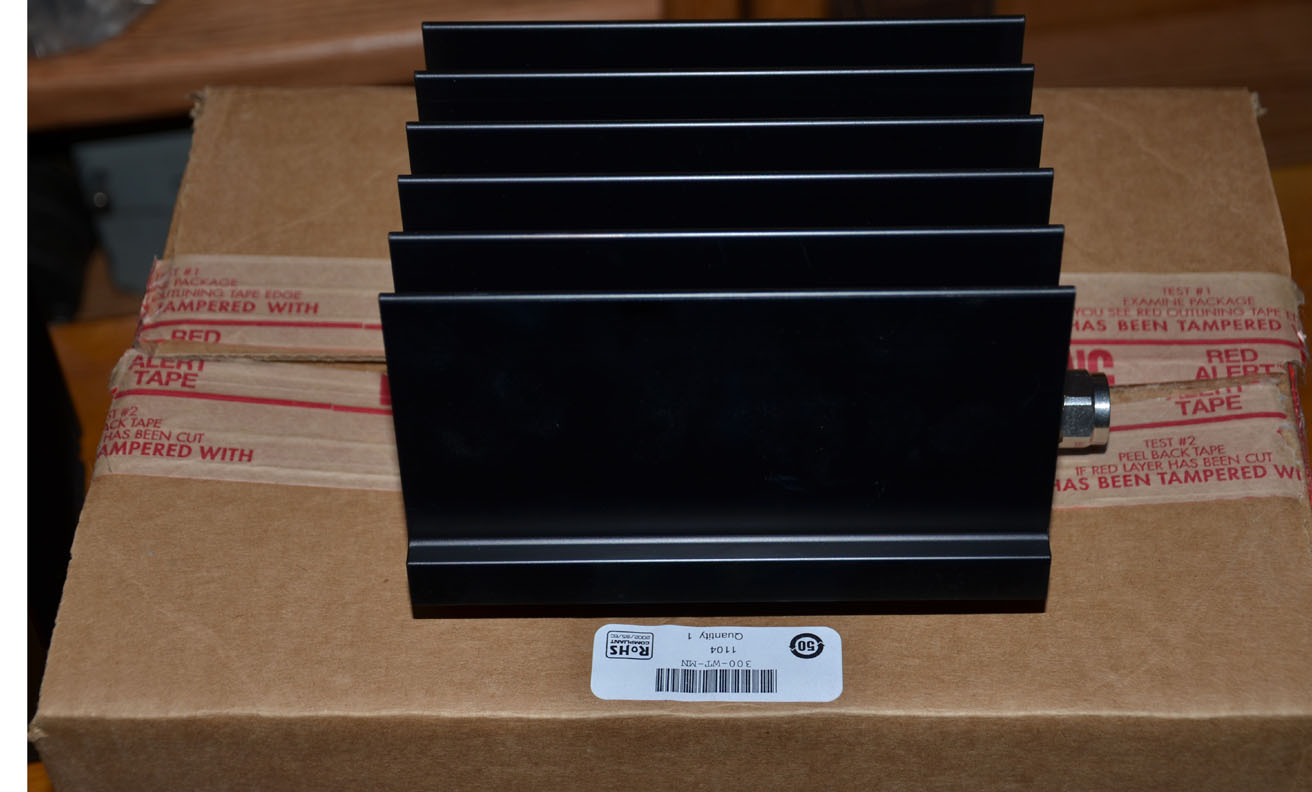

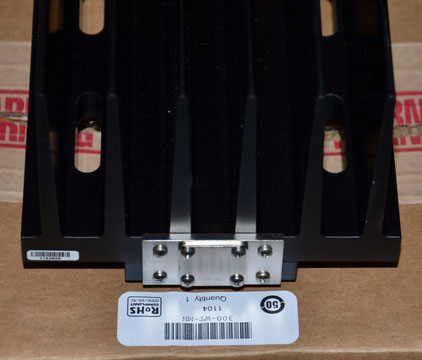

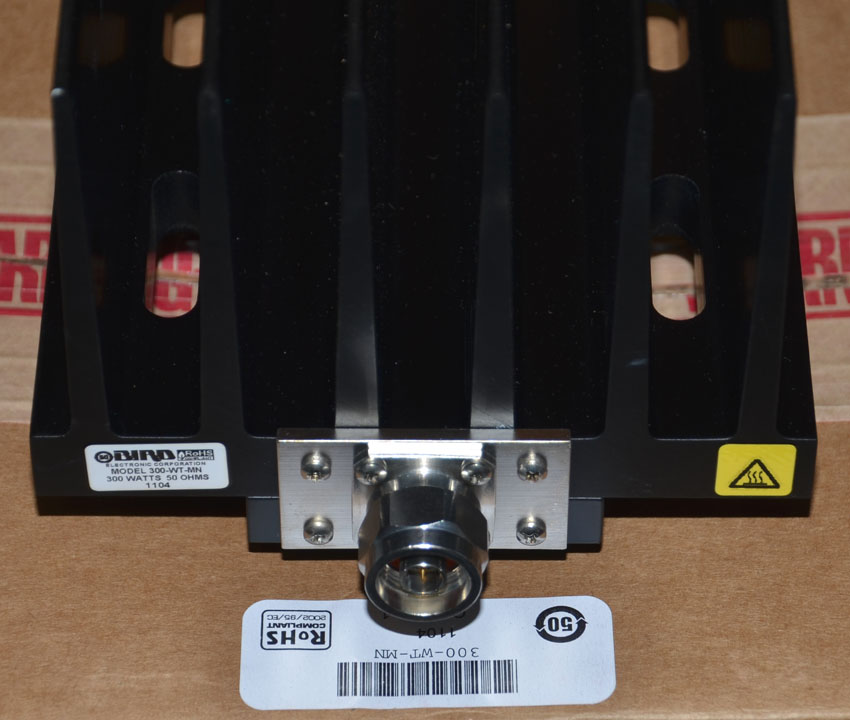

BIRD

300-WT-MN

DC-2.4GHZ

DRY LOAD

300 WATT DUMMY

$225

LIKE NEW IN ORIGINAL BOX

MAY BE UNUSED BUT BOXES WERE OPEN WHEN I GOT THEM

COST NEW  IS $499

WILL INCLUDE FREE A NEW ADAPTER TO SO239 (UHF-female) IF REQUESTED

LIST PRICE $499





SENSOR-230 Temperature sensor that mounts to the front of any of the large BIRD loads/attenuators below

Opens the key / mic when the attenuator or termination gets to unsafe temp

$65 includes cover and mounting bracket shown

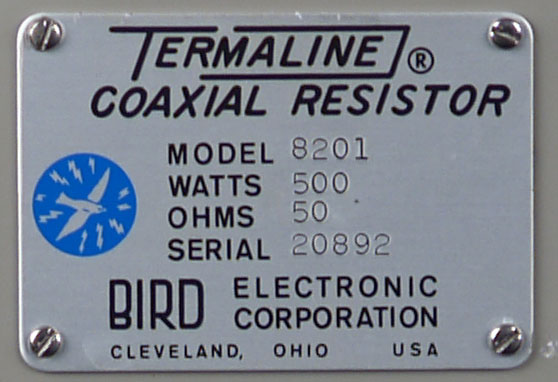

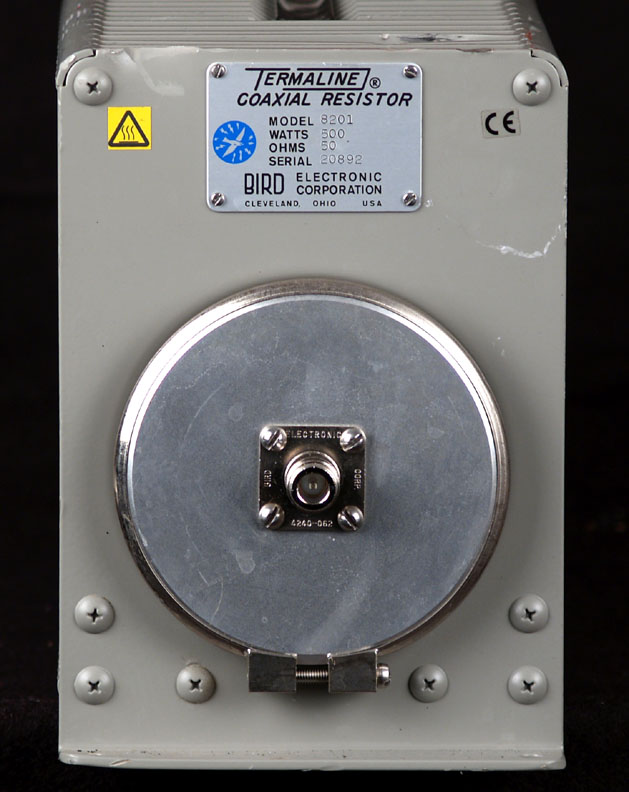

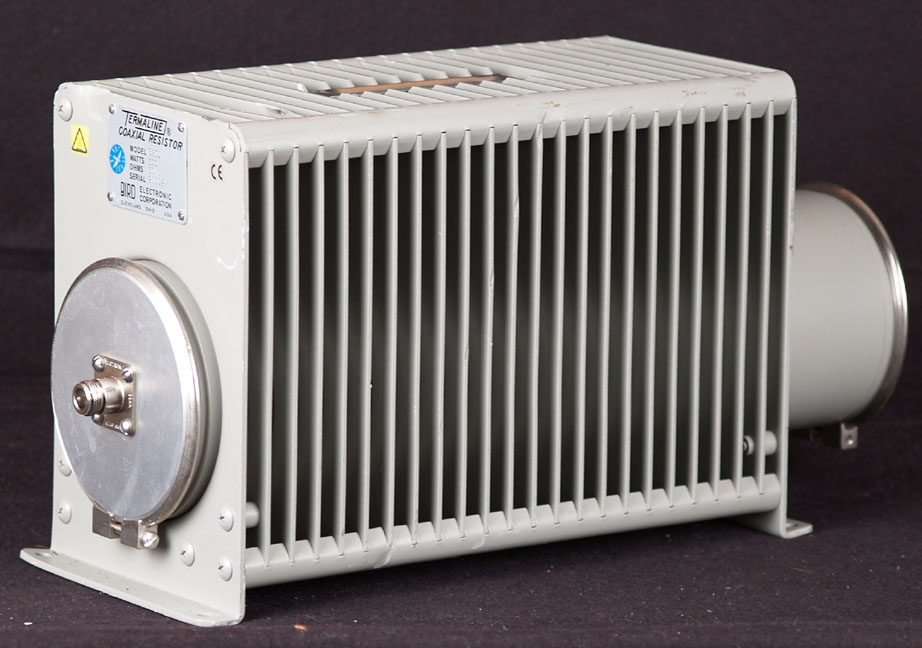

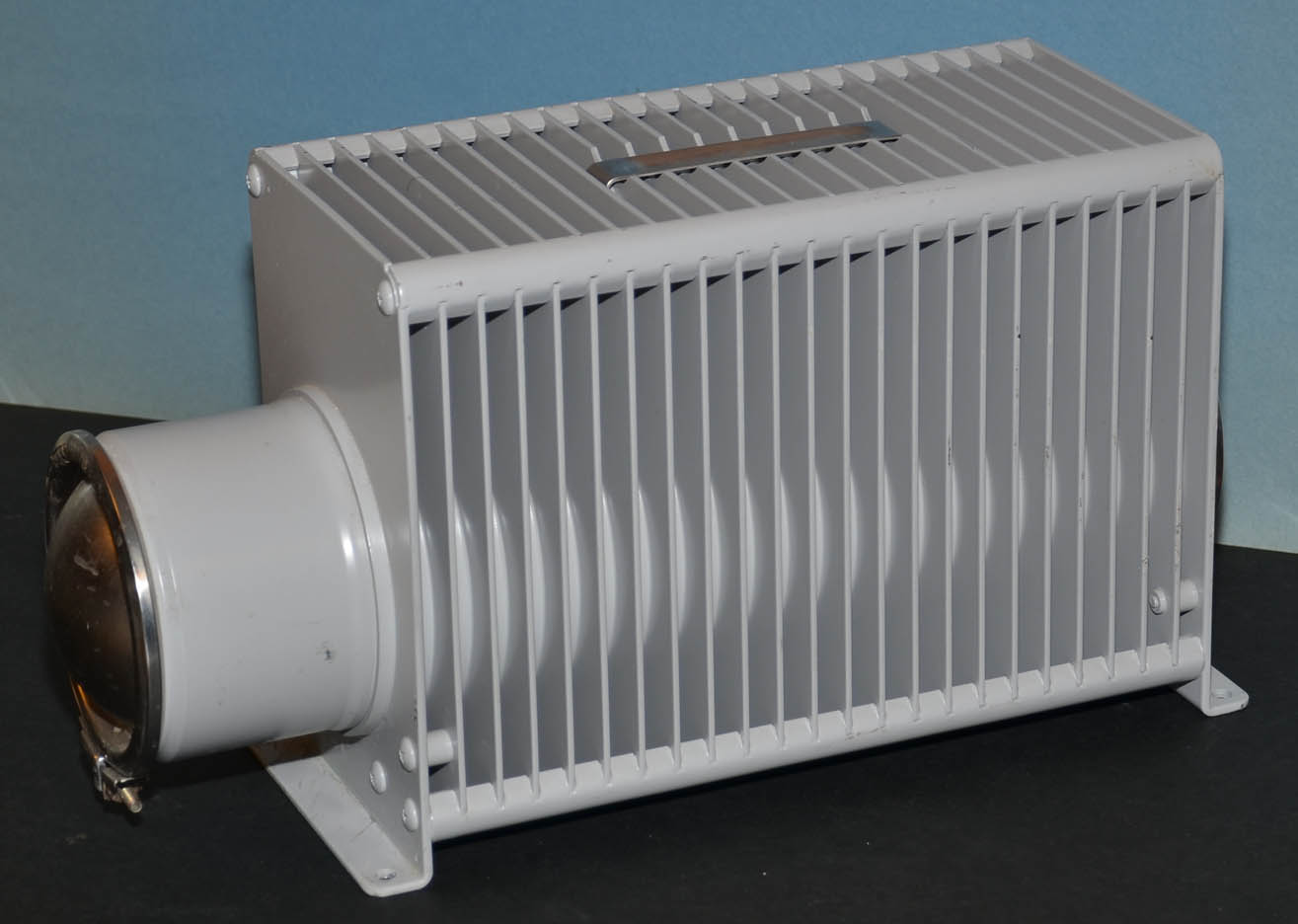

8201

Serial

20892

500 Watt

CCS Dummy Load





$220



I will swap connectors to UHF-f BNC-f or N-f if you need at NO extra charge
8201

Serial

14813



500 Watt

CCS Dummy Load

$230

  I will swap connectors to UHF-f BNC-f or N-f if you need at NO extra charge

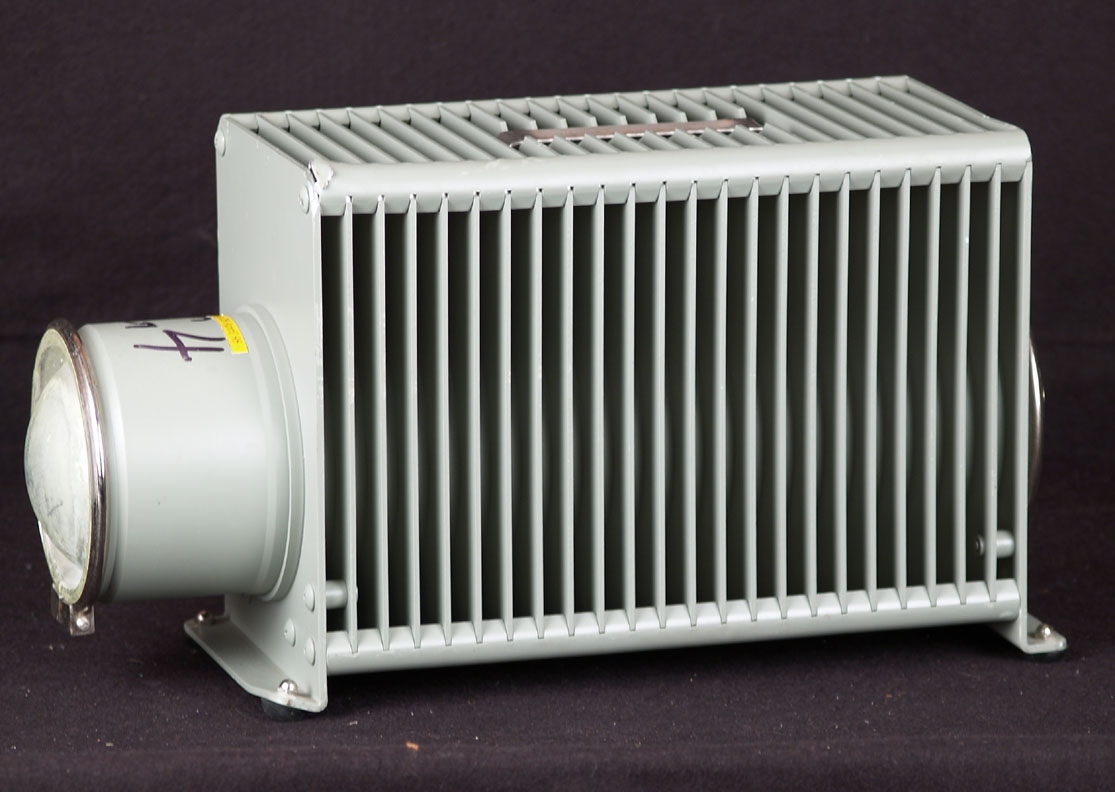

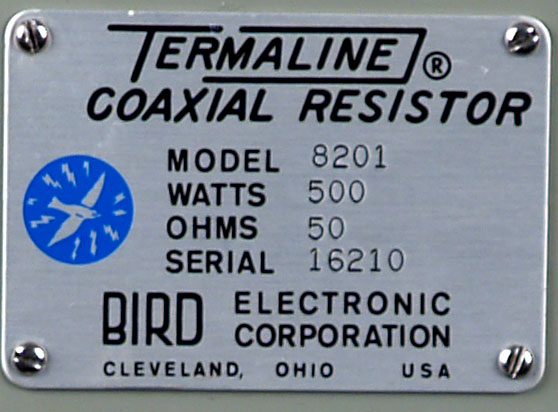

8201

Serial

16210

500 Watt

CCS Dummy Load

$250

I will swap connectors to UHF-f BNC-f or N-f if you need at NO extra charge

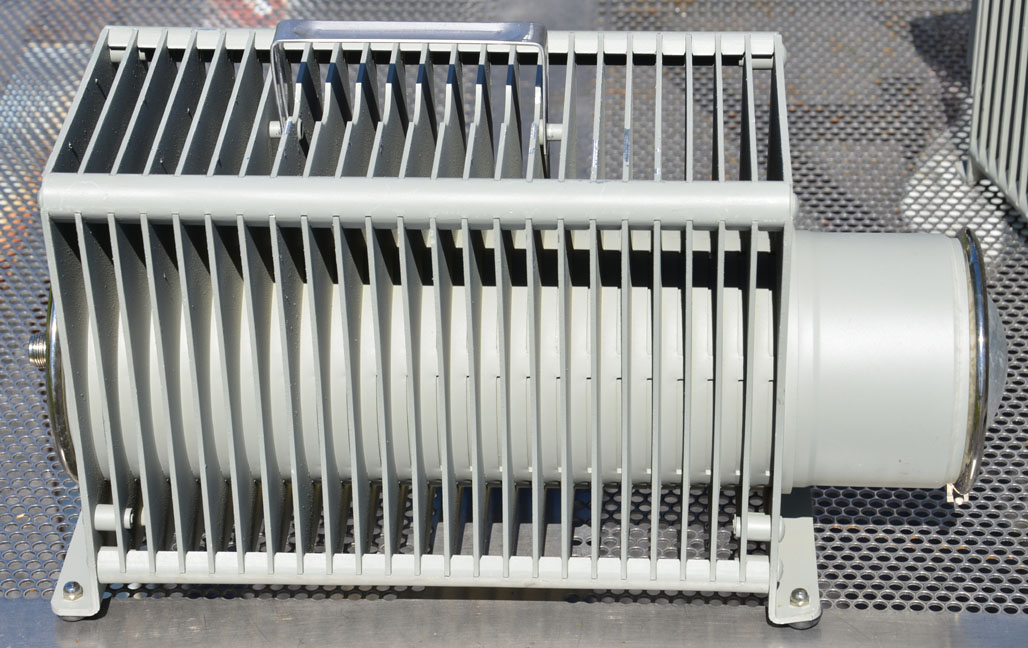

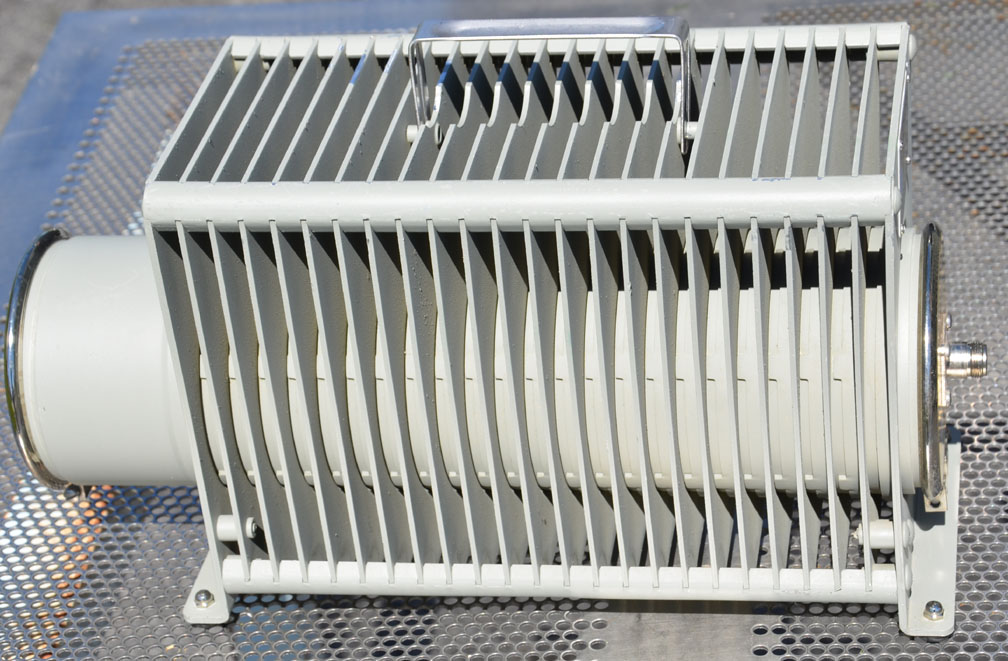

8201

Serial

9836

500 Watt

CCS Dummy Load

$260 I will swap connectors to UHF-f BNC-f or N-f if you need at NO extra charge

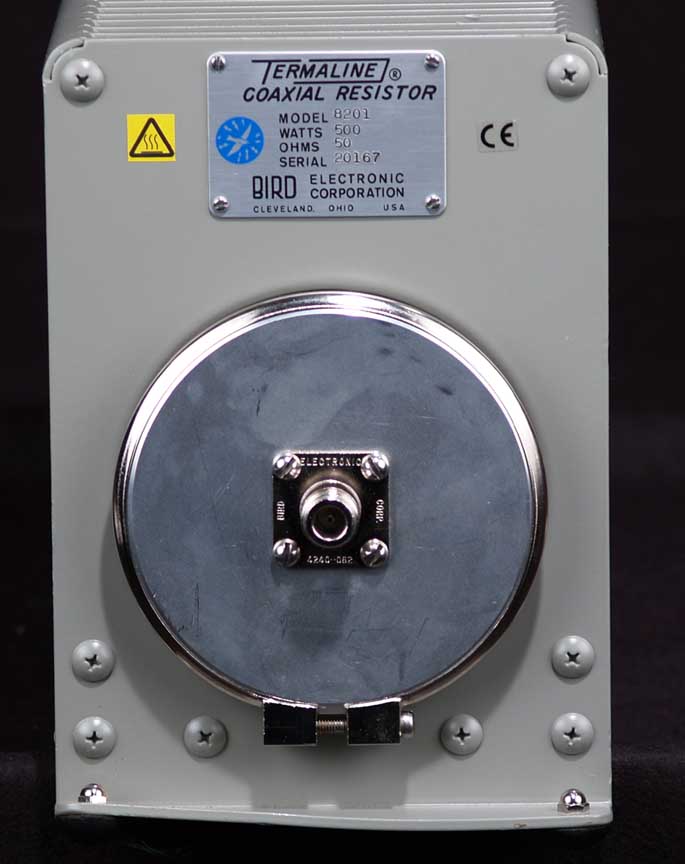

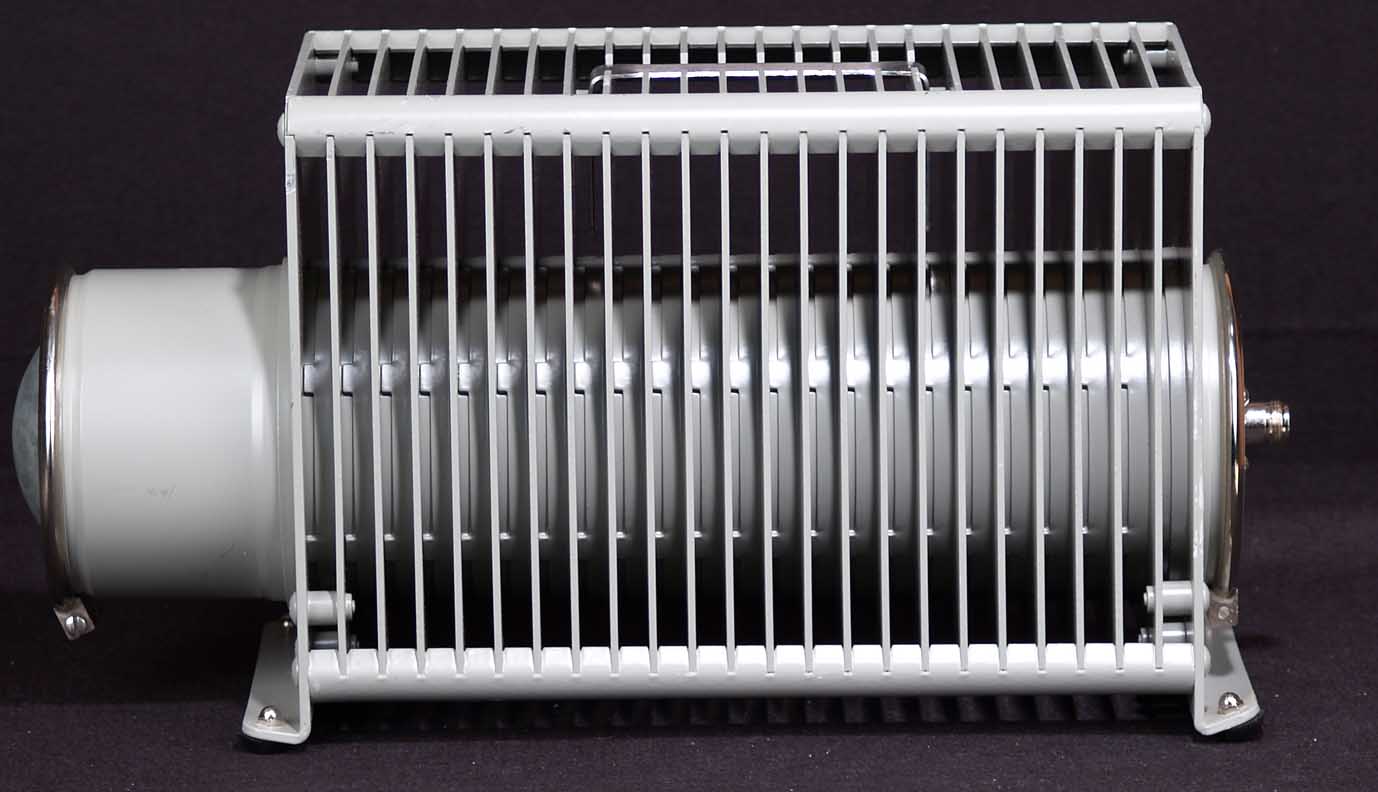

8201

Serial

20167

500 Watt

CCS Dummy Load

SOLD

$275

I will swap connectors to UHF-f BNC-f or N-f if you need at NO extra charge

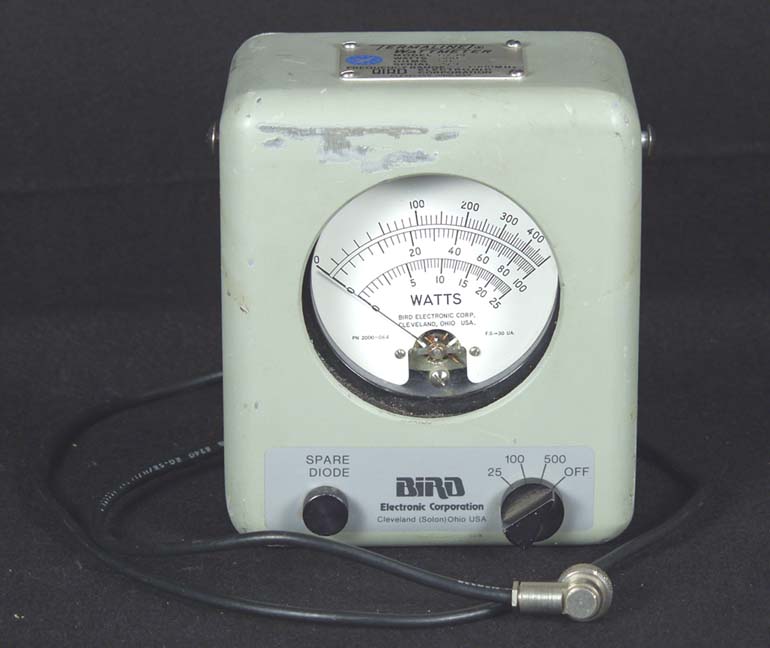

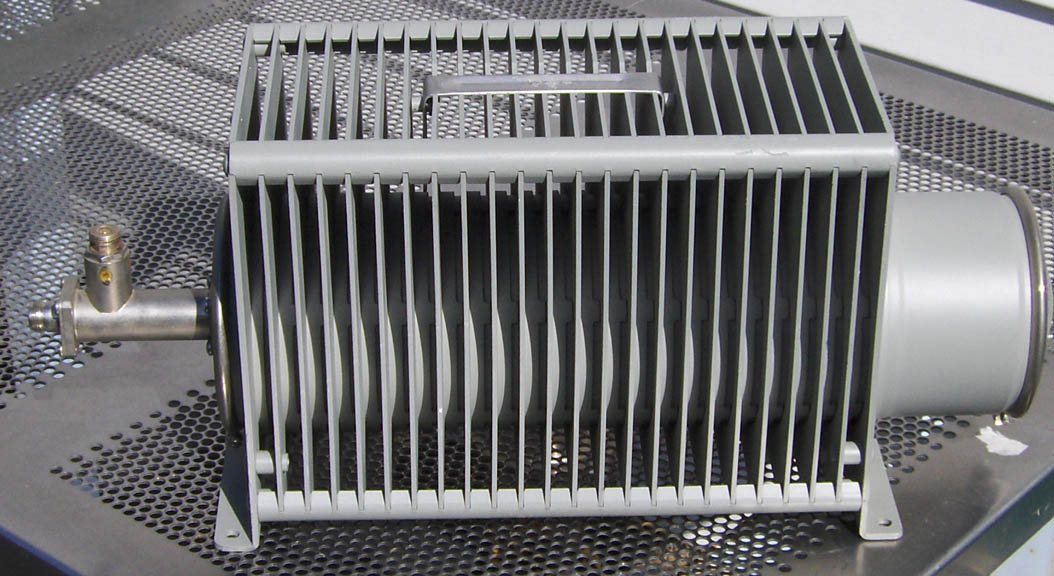

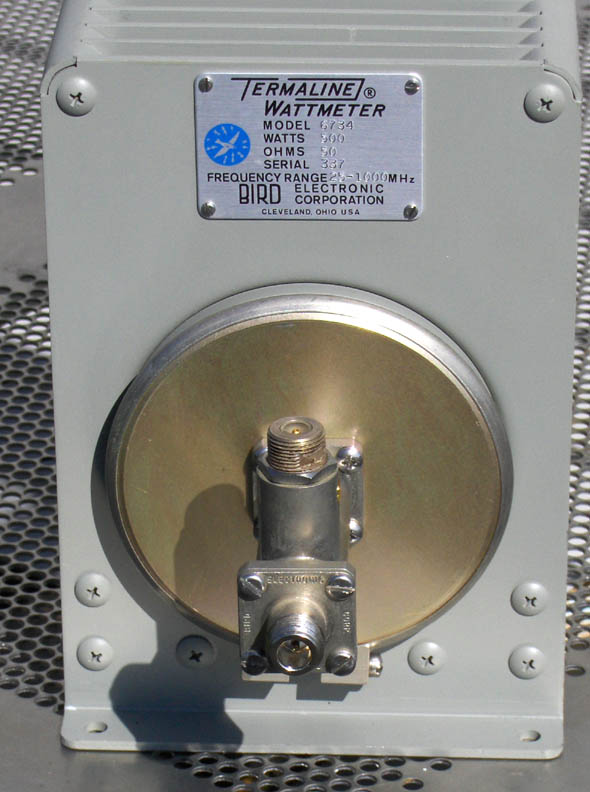

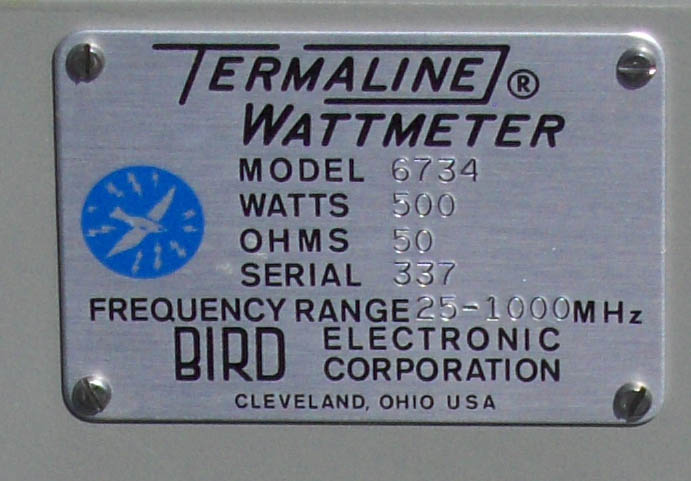

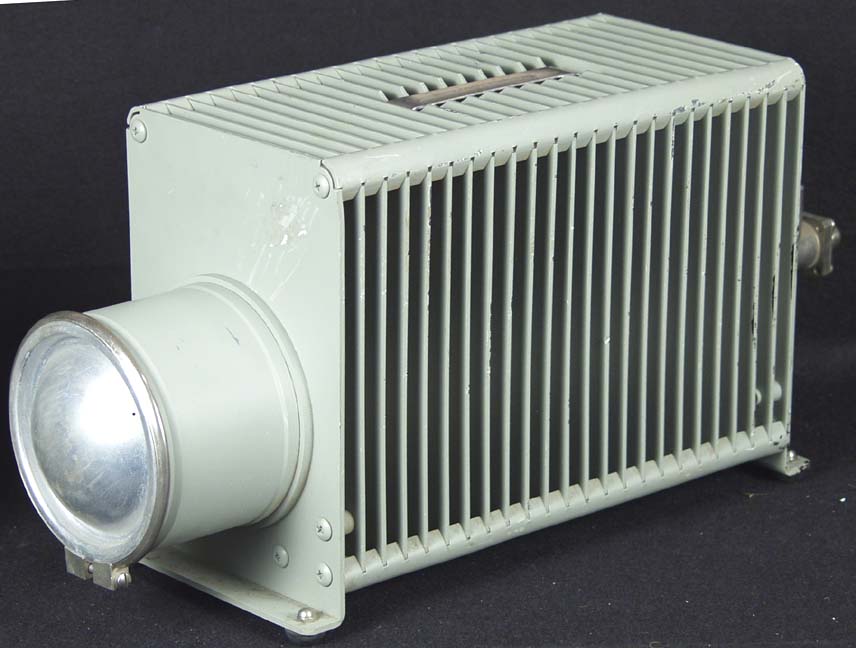

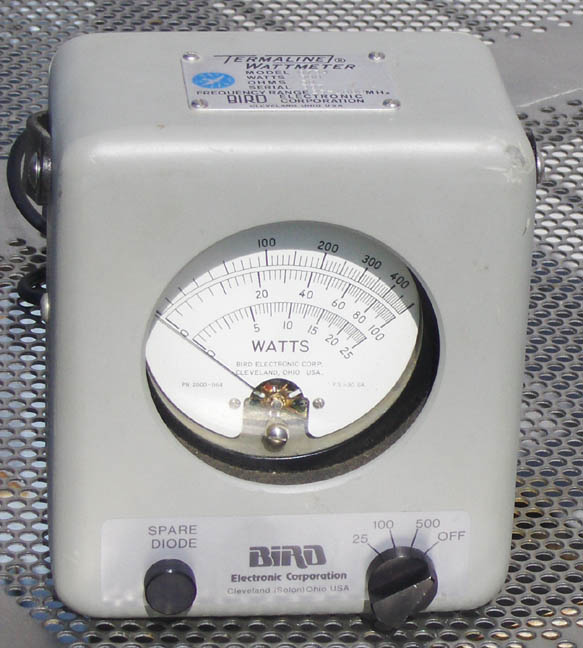

Bird 6734

SET 1



Bird 500 watt dummy load / meter set

This Termaline meter set measures 0 - 500 watts in 3 ranges = 25, 100, 500 watts full scale, over a very wide frequency range. 25-1000MHz.

So the meter and pick up take the place of a 43 with 25A, 100A, 500A, 25B, 100B, 500B, 25C, 100C, 500C, 25D, 100D, 500D, 25E, 100E, AND 500E elements.   and can be used separately from the dummy load.

SOLD

$425

Includes the load, line section WITH pickup cable and meter movement in a cabinet.

I will swap connector to what you need

 NO CHARGE!!




Bird 6734



#377



Bird 500 watt dummy load / meter set

This Termaline meter set measures 0 - 500 watts in 3 ranges = 25, 100, 500 watts full scale, over a very wide frequency range. 25-1000MHz.

So the meter and pick up take the place of a 43 with 25A, 100A, 500A, 25B, 100B, 500B, 25C, 100C, 500C, 25D, 100D, 500D, 25E, 100E, AND 500E elements.   and can be used separately from the dummy load.

$425

Includes the load, line section WITH pickup cable and meter movement in a cabinet.







will swap connectors to UHF-f BNC-f LC-f or N-f if you need at NO extra charge

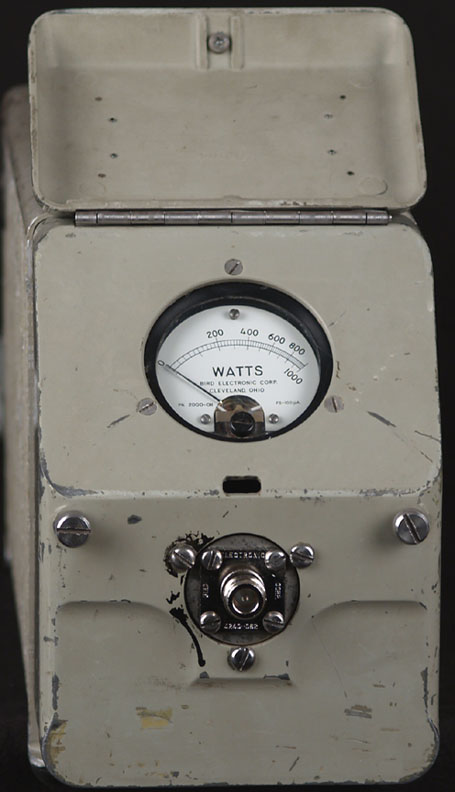

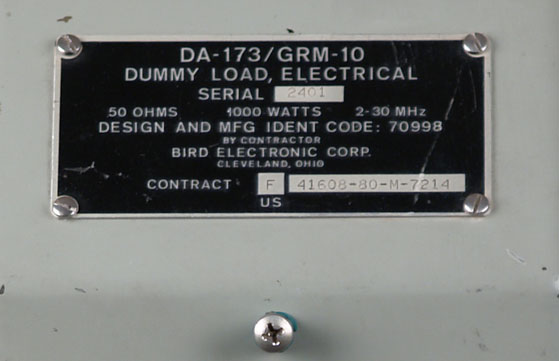

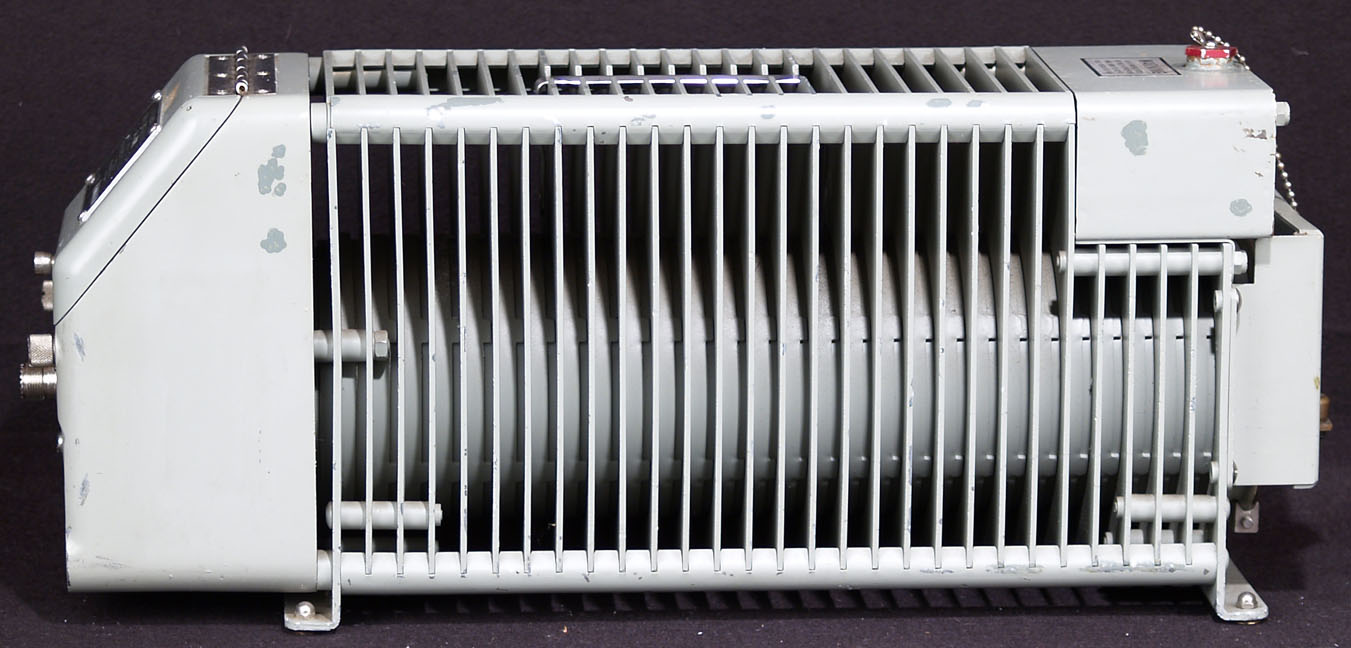

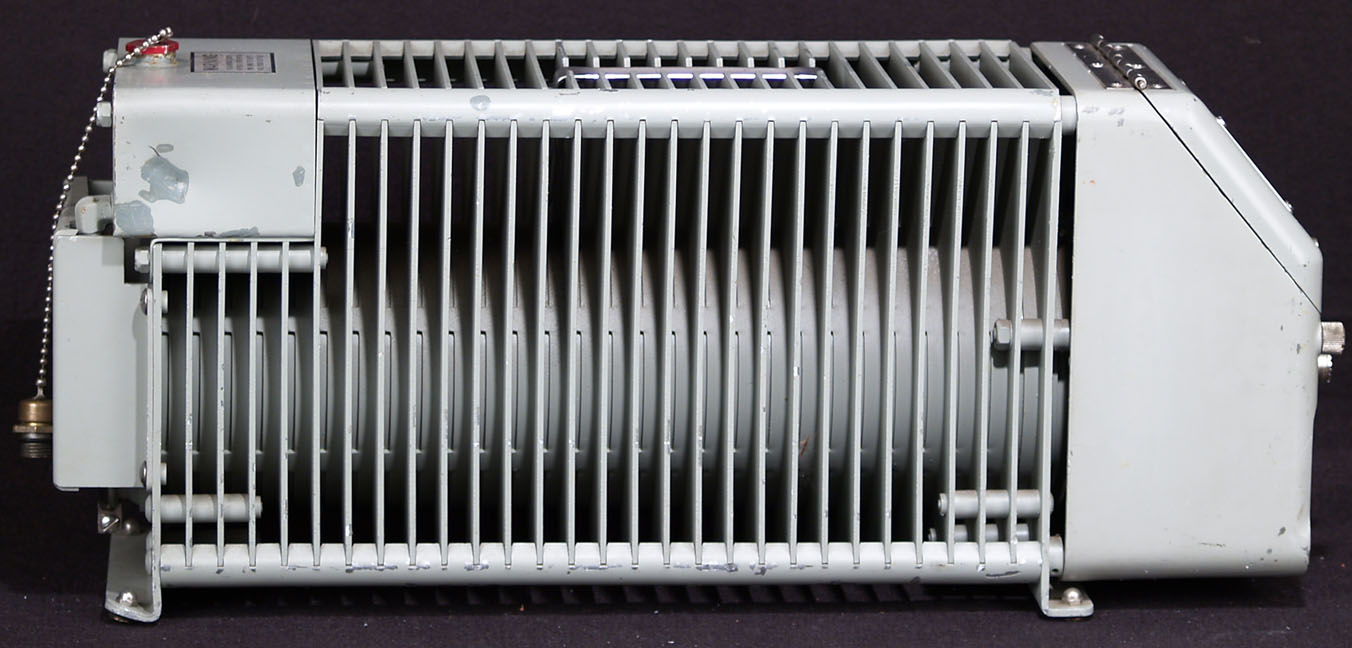

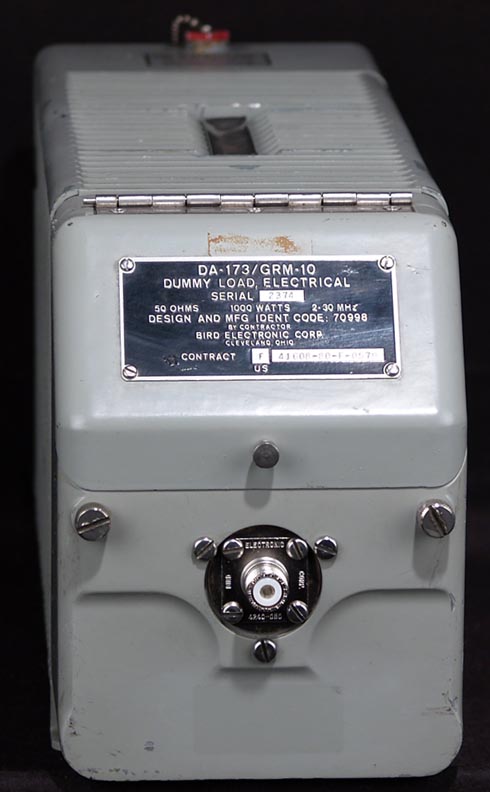

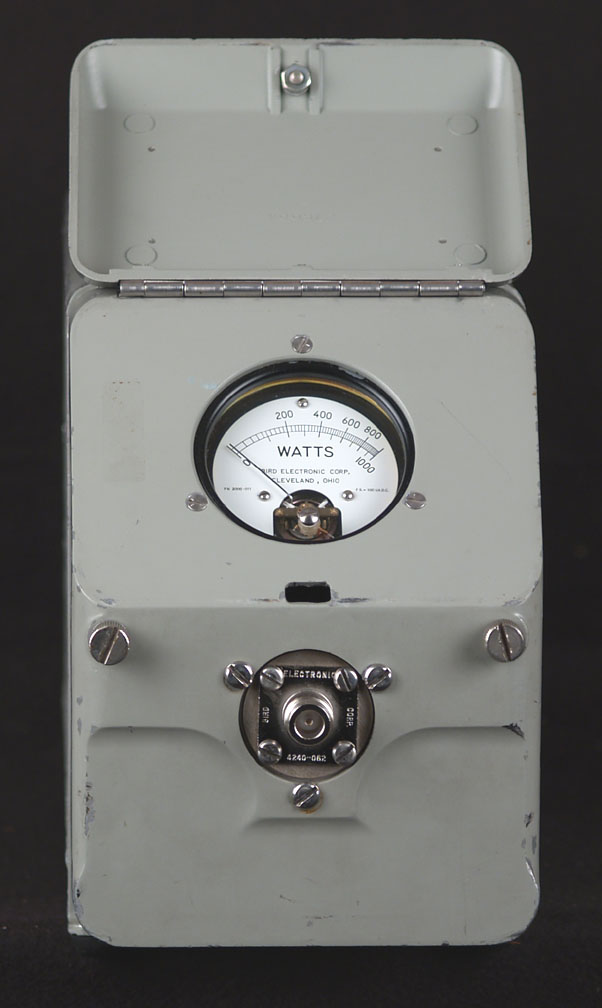

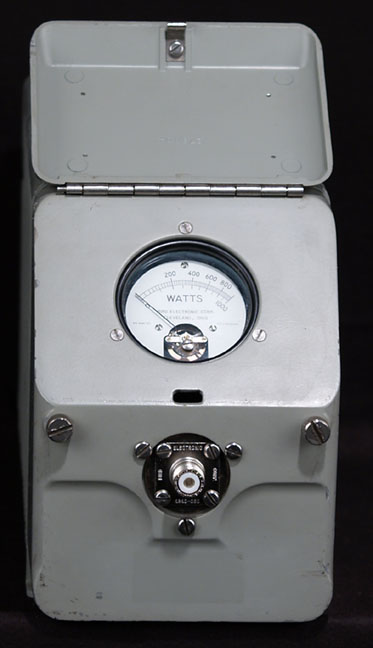

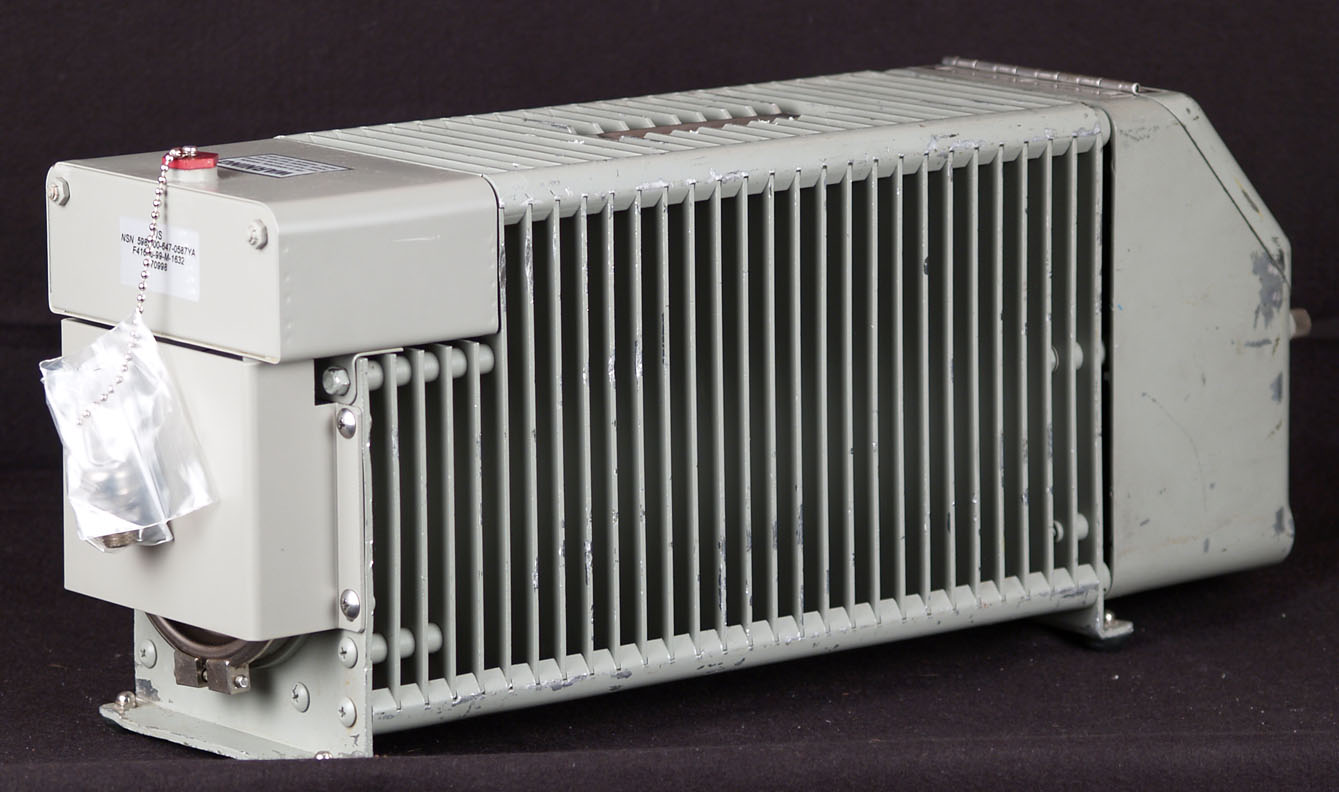

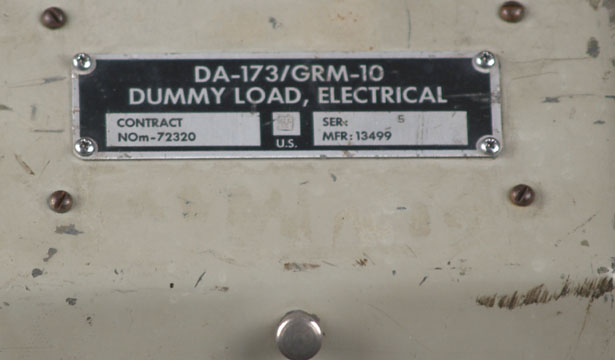

Bird

DA173

1000 Watts

Bird metered dummy load

The meter gives a relative measurement from 2-30MHz but works above 30MHz

SOLD

$395

1000 Watts

I will swap connectors to UHF-f BNC-f or N-f if you need at NO extra charge
  I tested the 1000watt

2-30MHz loads below at 14MHz and 28MHz with 1000 watts in

and 145MHz with 500watts input

They do not stop working at 30MHz the reflected powers are listed in this area with each load

\/  \/  \/

  All include a new shipping (red) and vent plug set as shown.

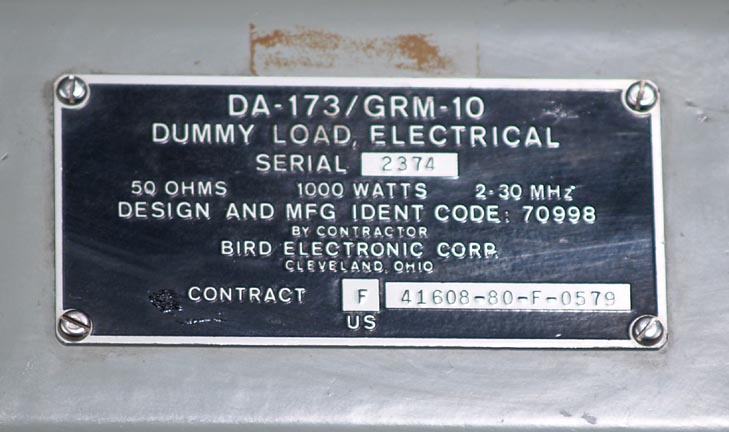

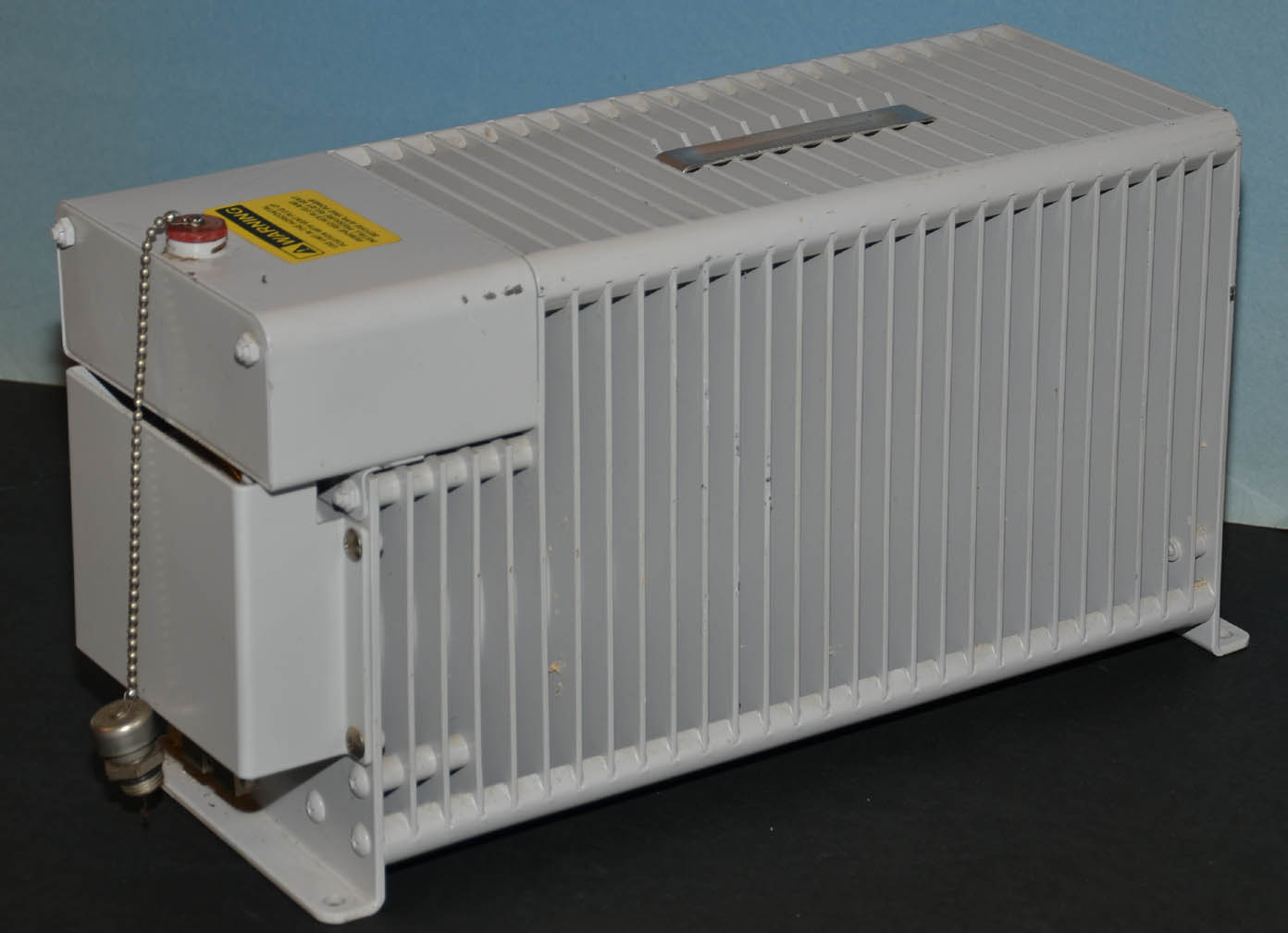

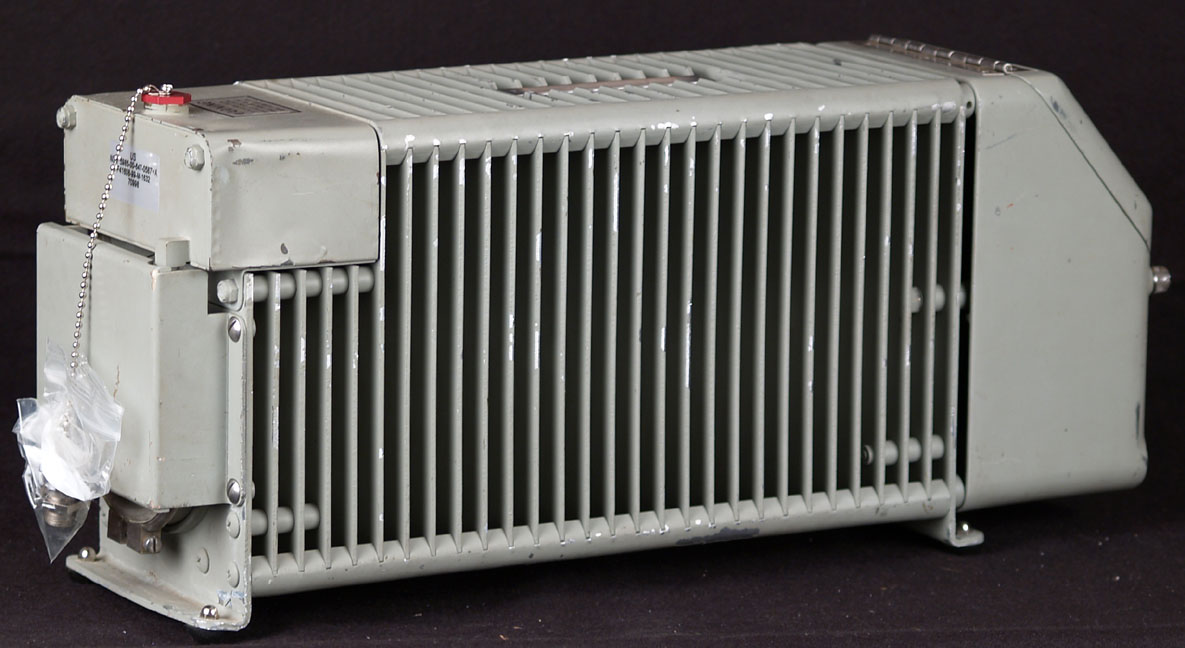

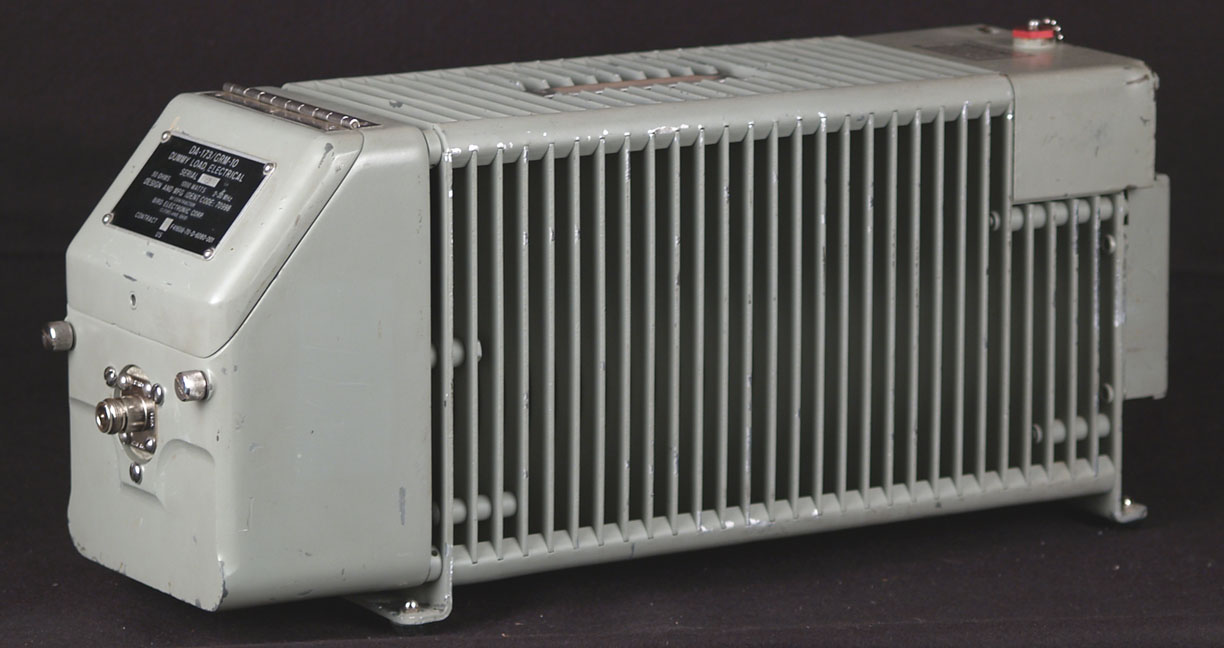

Bird

DA173

1000 Watts

Bird metered dummy load

The meter gives a relative measurement from 2-30MHz but works above 30MHz

SOLD

#095

$395

14MHz 1watt

28MHz 3watts

145MHz 14watts



will swap connectors to UHF-f BNC-f LC-f or N-f if you need at NO extra charge
Bird

DA173

1000 Watts

Bird metered dummy load

The meter gives a relative measurement from 2-30MHz but works above 30MHz

#5

$350

14MHz 1watt

28MHz 3watts

145MHz 15watts

will swap connectors to UHF-f BNC-f LC-f or N-f if you need at NO extra charge
Bird

DA173

1000 Watts

Bird metered dummy load

The meter gives a relative measurement from 2-30MHz but works above 30MHz

#2401

$375

14MHz 1watt

28MHz 3watts

145MHz 11watts

will swap connectors to UHF-f BNC-f LC-f or N-f if you need at NO extra charge
Bird

694

1000 Watts

Bird metered dummy load

The meter gives a relative measurement from 2-30MHz but works above 30MHz

SOLD

#2779

$400



will swap connectors to UHF-f BNC-f LC-f or N-f if you need at NO extra charge
Bird

694

1000 Watts

Bird metered dummy load

The meter gives a relative measurement from 2-30MHz but works above 30MHz

#2

$425



14MHz 1watt

28MHz 3watts

145MHz 11watts

will swap connectors to UHF-f BNC-f LC-f or N-f if you need at NO extra charge
Bird 8251

1000 Watts

serial #

6091

1000 watts continuous duty

DC-2.4GHz



SOLD

$575

will swap connectors to UHF-f BNC-f LC-f or N-f if you need at NO extra charge
Bird 8251

1000 Watts

serial #

 13362

1000 watts continuous duty

DC-2.4GHz



SOLD

$500

will swap connectors to UHF-f BNC-f LC-f or N-f if you need at NO extra charge
Bird 8251

1000 Watts

serial #

7031

1000 watts continuous duty

DC-2.4GHz

$550

SOLD

Includes both the red shipping plug and vent plug not shown in photos

will swap connectors to UHF-f BNC-f or N-f if you need at NO extra charge
Bird 8251

1000 Watts

serial #

14021

1000 watts continuous duty

DC-2.4GHz

$525

Includes both the red shipping plug and vent plug not shown in photos

will swap connectors to UHF-f BNC-f or N-f if you need at NO extra charge


SOLD

BIRD

1000 WATT

40dB ATTENUATOR

UN-MOUNTED ATTENUATOR REQUIRES PROPER MOUNTING TO A LARGE AREA HEAT SINK

90 DEGREE N-FEMALE INPUT WITH SMA OUTPUT.

WORKS PERFECTLY AS 1000 WATT DUMMY LOAD WITH BUILT IN -40Db SAMPLER.

SOLD

NEW

$350

YOU SAVE ON SHIPPING COSTS BY SUPPLYING YOU OWN HEAT SINK.

TESTS PERFECT UP TO THE  LIMIT OF MY SPECTRUM ANALYZER

DC-500MHz

SOLD ENTIRE STOCK OF 41 SOLD
NEW

DUMMY LOAD  ATTENUATOR

At -40dB It works perfectly as a termination



MADE BY BIRD FOR HARRIS

HAR-015-A



UN-MOUNTED ATTENUATOR REQUIRES PROPER MOUNTING TO A LARGE AREA HEAT SINK



7/16 DIN INPUT

SMA OUTPUT

WORKS PERFECTLY AS 1000 WATT DUMMY LOAD WITH BUILT IN -40Db SAMPLER.

$350



YOU SAVE ON SHIPPING COSTS BY SUPPLYING YOU OWN HEAT SINK.





TESTED AT 1296MHz

SHIPPING WEIGHT ONLY  4 Pounds



STARTED WITH 27

5 LEFT

The most common question is

 "why the long connector"

The connector length is required so the attenuator can be properly mounted to a heat sink.

Meaning the heat sink should extend past the mounting block assembly by 1.25 inches for proper heat dissipation.

/\ /\ /\

Birds normal heat sink size for this item is about 19 X 11 X 4.5 inches



V V V

  $20

NEW ADAPTER

7/16 MALE TO N-FEMALE




NEW

SPECIAL CULLED LOW RETURN LOSS ATTENUATORS

THESE WERE TESTED AND SEPARATED FROM THE ABOVE ITEMS BY THE FACTORY

MARKED RTL > 40dB

UNSURE AT WHAT FREQUENCY THE RETURN LOSS WAS TESTED FOR THIS CULLING

I TEST AT 1296 AND THE SWR IS VERY LOW ABOUT 1.02 - 1.03 : 1

WHICH IS ABOUT 36dB RTL

ONLY 2

$500



TESTED AT 1296MHz
AEROFLEX Weinschel

82-40-33

DUMMY LOAD / ATTENUATOR

1000 Watts 40dB

1,000 watts average
upto 25°C ambient.

10 kilowatt peak

DC-1.5GHz 1.15:1  SWR

1.5-3GHZ 1.25:1  SWR

SOLD

Weight about 39LBs

N-females INPUT and OUTPUT

Camera flash shows every small paint nick

Looks better in person

Still has all 4 legs and feet

SOLD
82C

2500 WATT LOAD

very small and light for a 2500 watt load

REQUIRES WATER COOLING ABOVE 200 WATTS

Any water source works -

$450
BIRD 67C

2500 WATT LOAD /  METER SET

METER SCALES READ: 2500, 500 OR 100WATTS.

REQUIRES WATER COOLING ABOVE 200 WATTS

LOAD CAN BE PLACED NEAR THE WATER SOURCE AND METER IS REMOTE READING VIA THE INCLUDED CABLE. $700

ACCURATE  COMPARED TO MY CALIBRATED METER SET.

WILL SWAP TO ANY FEMALE CONNECTOR NO EXTRA CHARGE.

I CAN CUSTOM MAKE ANY LENGTH CABLE FOR A SMALL CHARGE.

BIRD 8726

5000 WATT LOAD

WATER COOLED

5000 WATT TERMINATION.

SO239 connector

ALSO INCLUDES THE 2 QUICK DISCONNECTS SHOWN. $500

FACTORY NEW LOAD COST IS $1100


BIRD

8936-115

10KW

(LAST 2 in stock the other 6 sold)

10,000 WATT COMMERCIAL LOAD

3 1/8 INCH INPUT

WITH ADAPTER TO YOUR CHOICE OF FEMALE CONNECTOR INCLUDING 7/16DIN or LC

$2250

AS SHOWN

OR
$2000 WITHOUT ADAPTER

#0275



LARGE HEAVY LOAD 140 POUNDS UNPACKED



FACTORY NEW COST IS $4935


8578B100

10KW

AIR LOAD

10,000 WATT COMMERCIAL LOAD

1 5/8 INCH INPUT

WITH ADAPTER TO YOUR CHOICE OF FEMALE CONNECTOR

INCLUDING 7/16DIN or LC

$2000

WITH ADAPTER

OR
$1800 WITHOUT ADAPTER

#1076

FACTORY NEW COST IS $4584
    AIR LOAD = NO OIL

WEIGHT IS ONLY 70 POUNDS + PACKING

UPS OVERSIZED SHIPPABLE

#1076

NOTE SMALL DING NEAR BOTTOM

<<<<<

 CORNER

NOTE SMALL DING NEAR BOTTOM CORNER

BIRD

8936-115

10KW

(LAST 2 in stock the other 6 sold)

10,000 WATT COMMERCIAL LOAD

3 1/8 INCH INPUT

WITH ADAPTER TO YOUR CHOICE OF FEMALE CONNECTOR

INCLUDING 7/16DIN or LC

$2250

AS SHOWN

OR
$2000 WITHOUT ADAPTER

#0109

LARGE HEAVY LOAD 140 POUNDS UNPACKED



FACTORY NEW COST IS $4935





Prices are determined with a formula involving prior selling prices, current stock, and cosmetic condition.

The letters in my item ID are for my reference to assure you get the correct item.   I often photograph several hundred element at a time. The only way to keep track of the element is with a unique item ID.  An item with AAA is not better or worse then an item with RRR, HHH, or ZZZ.  Nicer items of the same type are priced higher.

All elements are Guaranteed NOT DOA = Click for testing link

Stock changes quickly please verify the element is still in inventory before doing paypal.



 AuctionSniper.com - Easy eBay bid sniper solutions.  Tired of being outbid in the last few seconds on eBay, and not being fast enough to bid again??   This service bids for you to the amount you tell them when you tell them.   No fees unless you win then 1% of the win amount (not your bid amount).  95% of my eBay wins are with auction sniper, the rest are buy it nows.  I have been using it for 4 years with no problems.
Easy eBay bid sniper solutions.

Truly the Easiest way to ebay.   Join for free, and stop being outbid in the last few seconds..    For a limited time you get 3 free snipes (Uses) when you join.



BIRD® and Thruline® are registered trademarks of BIRD® Electronic Corporation, 30303 Aurora Rd.  Solon, OH 41139......http://www.bird-technologies.com/
